Pressure Header "How to select FITOK Air Headers"

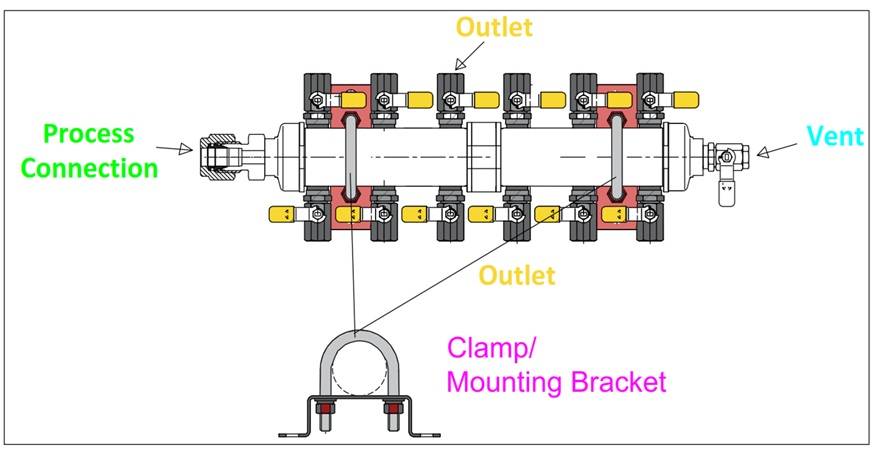

Below is the construction module for the Air Header.

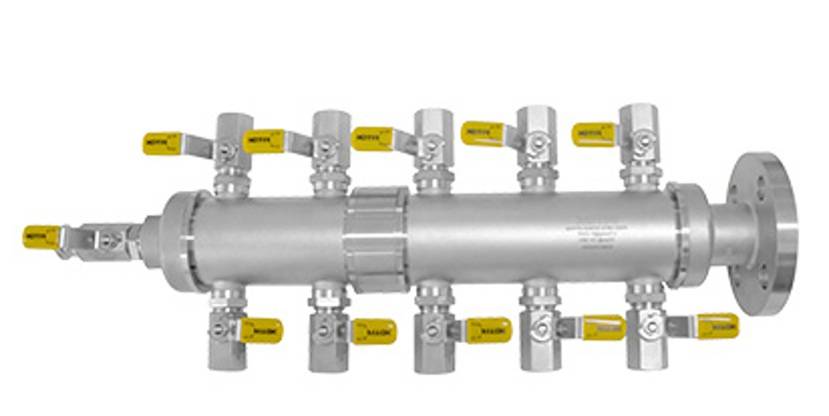

Pressure Header AH Series Air Headers feature a modular design with standard 4- and 6-outlet modules for easy installation and maintenance, reducing time and costs. A variety of inlet, outlet, and vent options are available. The outlet is equipped with a ball valve for isolation, allowing distribution, diversion, and allocation of gas sources. These headers support pressures up to 1,000 psig and operate within a temperature range of 0 to 250°F (-18 to 121°C). Every air header is factory leak-tested with air or nitrogen at the rated working pressure.

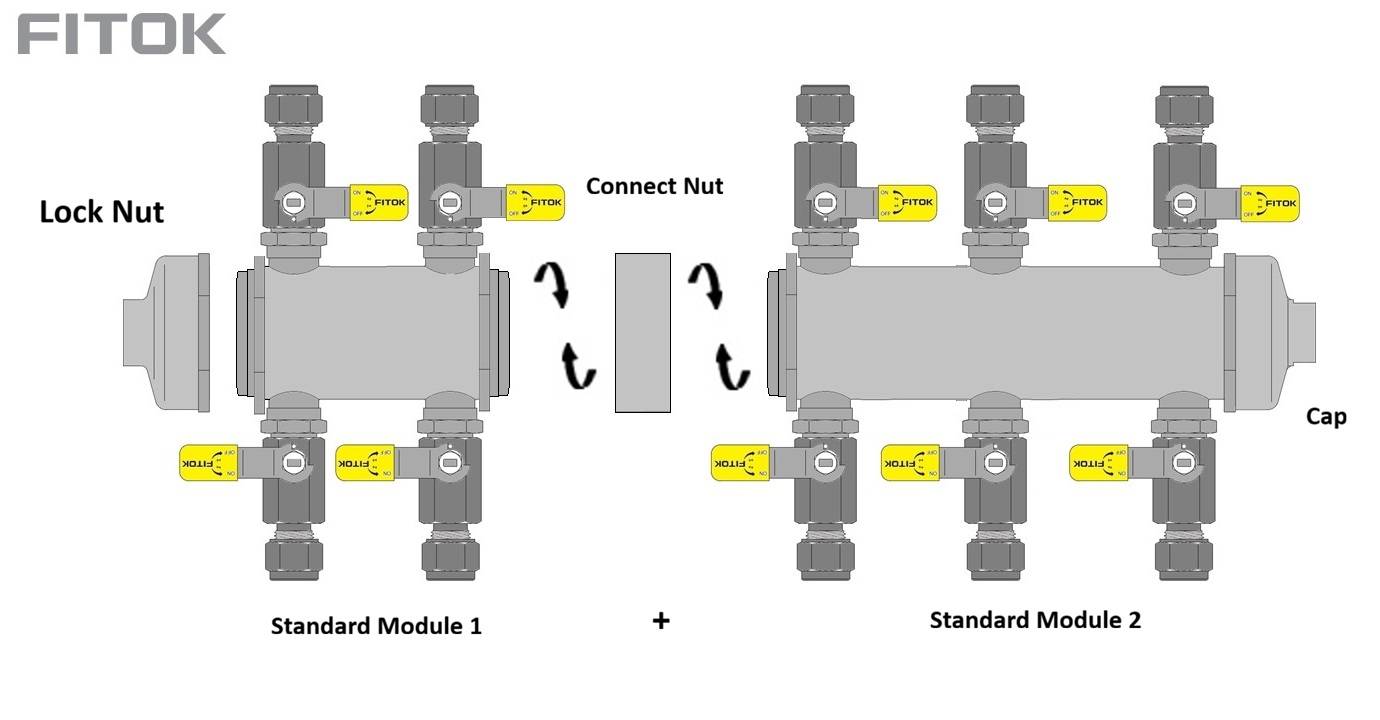

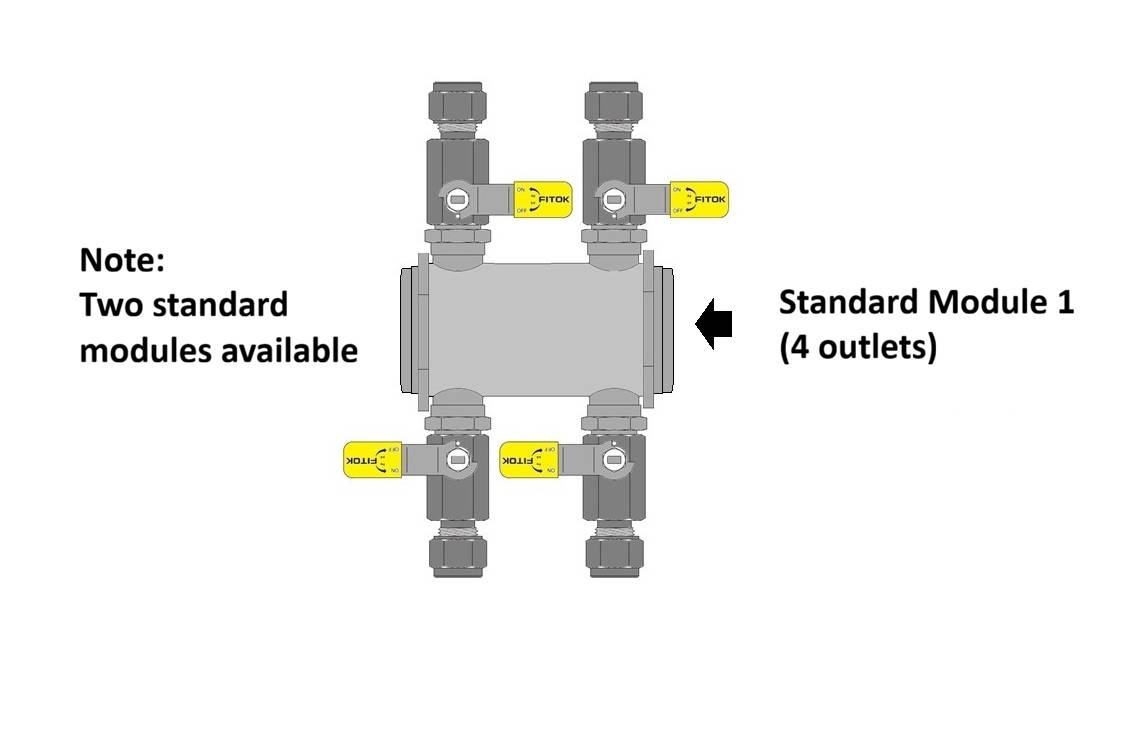

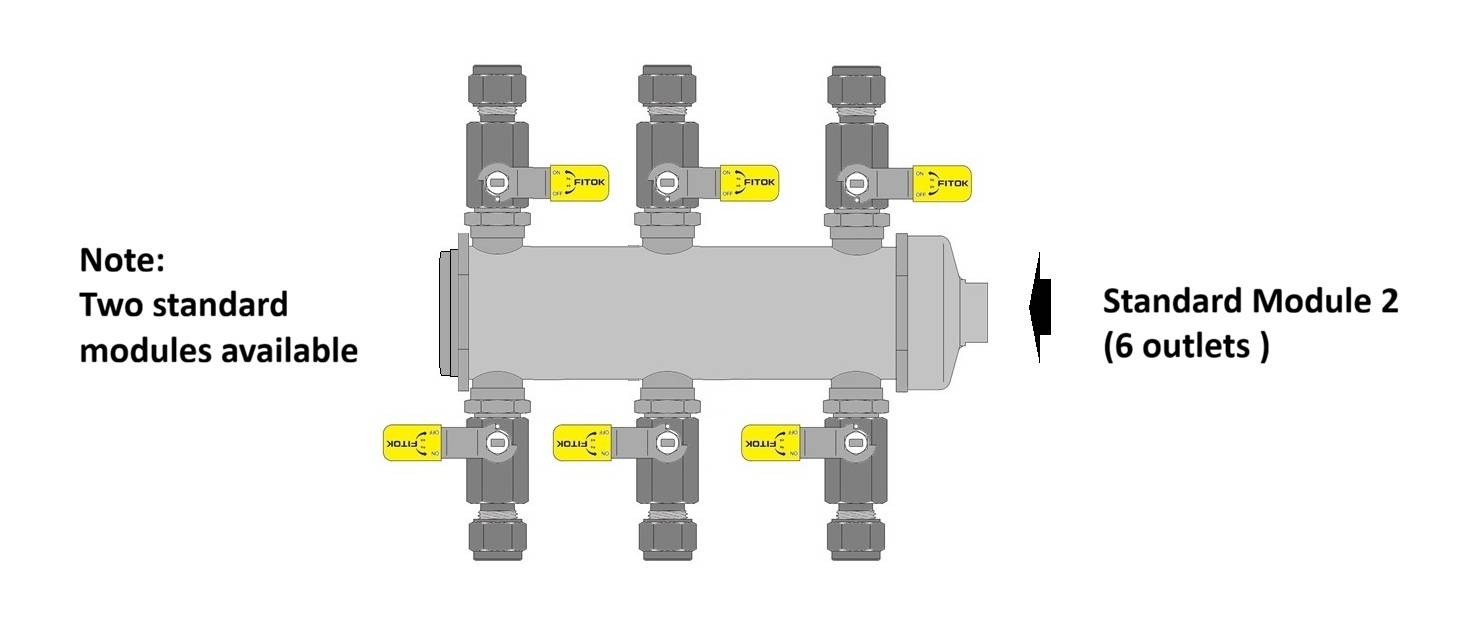

With modular design, an individual air header can be made up by several standard modules as shown above. FITOK air headers are available for sale as a complete set, or customers can order 4-outlet or 6-outlet standard modules separately. This not only makes in-line upgrade and maintenance possible, but also save time and cost significantly. Every air header is leak tested at factory with air or Nitrogen at rated working pressure.

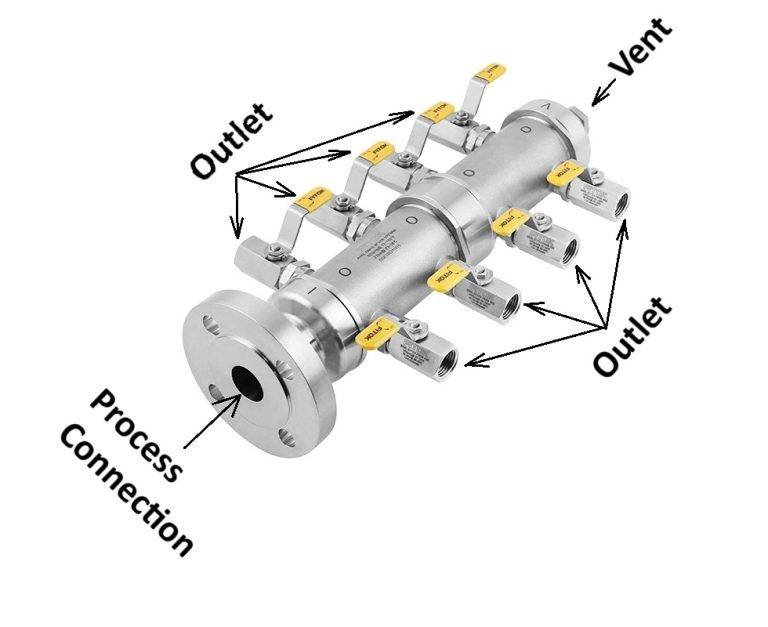

Process conditions:
- Connection size and type?
- Is a valve required at inlet?
Outlet:
- Quantity ?
- Is a valve required at outlet ?
- Or valve with plug ?
Vent:
- Is a vent port required?
- is a valve(V) or plug required or Valve with plug(VP)?
Is mounting bracket required?
- if Yes please add “CLP” in your ordering number
- if No please ignored
Regulatory Compliance
• Pressure Equipment Direct (PED) 2014/68/EU
• Atmospheres Explorative Directive (ATEX) 2014/34/EU
• Restriction of Hazardous Substances Directive (RoHS) 2011/65/EU
