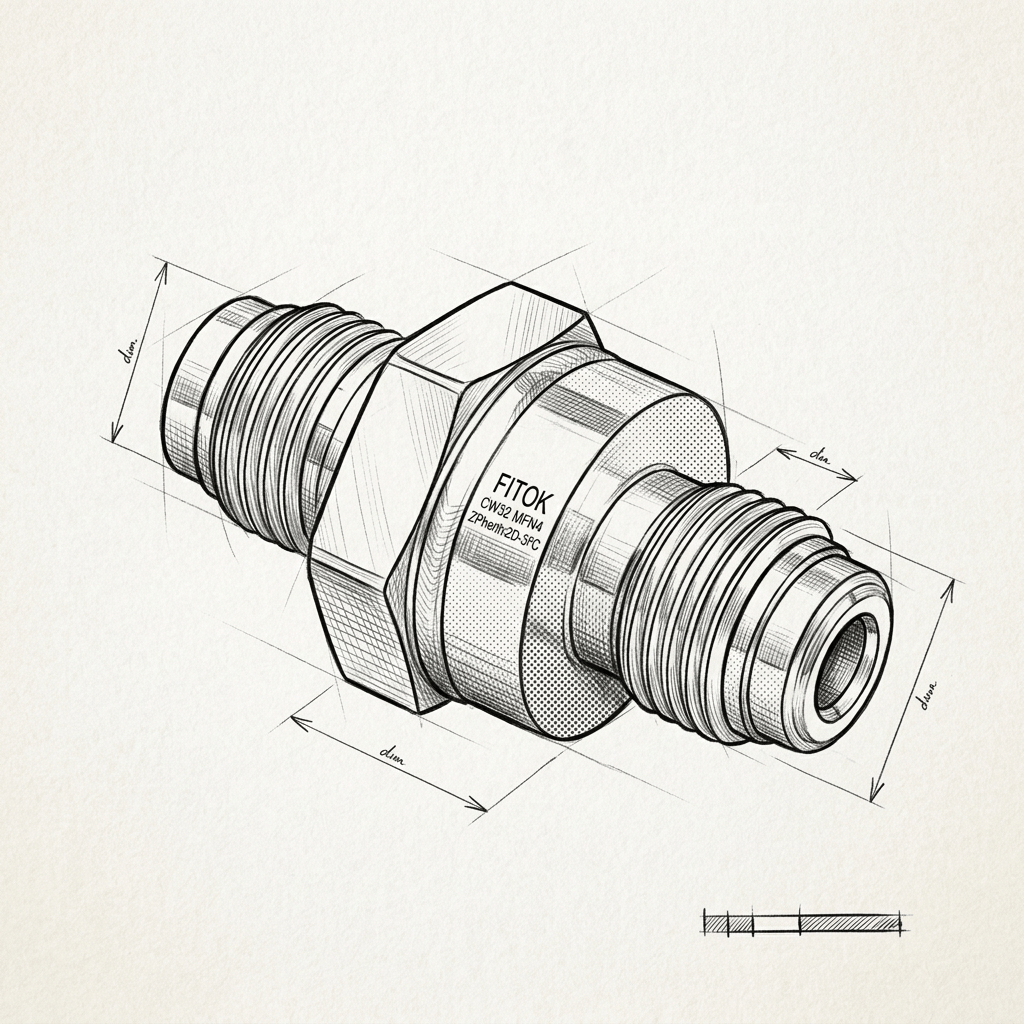

All-Welded Check Valves, CW Series
| Part Number | Material | Category | Description | Image |
|---|---|---|---|---|
| CW6L-FFR4 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 1/4" Female FR Fitting, Fluorocarbon FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Fixed Cracking Pressure 1/3psig(0.02bar) | IMAGE |
| CW6L-FFR4-E-F2 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, Conn.: 1/4" Rotatable Female FR Fitting, EPDM O-ring, MWP: 3000psig(207bar), FC-02 Special Cleaning and Packaging. | IMAGE |
| CW6L-FFR4-F2 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 1/4" Female FR Fitting, Fluorocarbon FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Fixed Cracking Pressure 1/3psig(0.02bar), FC-02 Special Cleaning and Packaging. | IMAGE |
| CW6L-FFR4-F2-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR4-F3 | 316L SS | Check Valves | Body 316L SS, MWP: 3000psig, Connections: 1/4" Female FR Fitting, FC-03 Cleaned | IMAGE |
| CW6L-FFR4-FR4 | 316L SS | Check Valves | Body:316L SS, MWP:3000psig, Sealing: Kalrez, Bonded316 SS, Connection.:1/4in. Female x 1/4in. Male FR (Metal Gasket Face Seal) | IMAGE |
| CW6L-FFR4-FR4-F2 | 316L SS | Check Valves | 316 SS, CW Series Check Valves, All-Welded,Inlet:1/4" Female FR Fitting,Outlet:1/4" Male FR Fitting, Fluorocarbon FKM O-ring, 3000psig,-23°C to 204°C,Fixed Cracking Pressure 1/3psig(0.02bar),FC-02 Packaging and Cleaning | IMAGE |
| CW6L-FFR4-FR4-F2-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR4-FR4-F3 | 316L SS | Check Valves | 316 SS, CW Series Check Valves, All-Welded,Inlet:1/4" Female FR Fitting,Outlet:1/4" Male FR Fitting, Fluorocarbon FKM O-ring, 3000psig,-23°C to 204°C,Fixed Cracking Pressure 2psig(0.14 bar), FC-03 Cleaned | IMAGE |
| CW6L-FFR4-FR4-L51F2 | 316L SS | Check Valves | 316L SS, CW Series Check Valve, 1/2" Female × 1/2" Male FR, Overall Length: 51mm, FC-02 Special Cleaning and Packaging. | IMAGE |
| CW6L-FFR4-FR4-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR4-FR4-Z | 316L SS | Check Valves | Body:316L SS, MWP:3000psig, Sealing: Kalrez, Bonded316 SS, Connection.:1/4in. Female x 1/4in. Male FR (Metal Gasket Face Seal),All-welded Design | IMAGE |
| CW6L-FFR4-FR4-Z-F3 | 316L SS | Check Valves | 316 SS, CW Series Check Valves, All-Welded,Inlet:1/4" Female FR Fitting,Outlet:1/4" Male FR Fitting, Kalrez O-ring, 3000psig,-23°C to 204°C,Fixed Cracking Pressure 2psig(0.14 bar), FC-03 Cleaned. | IMAGE |
| CW6L-FFR4-FR4-Z-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR4-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR4-RFR4-F3 | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR4-RFR4-F3-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR4-Z-F3 | 316L SS | Check Valves | 316 SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 1/4" Female FR Fitting, Fluorocarbon FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Fi×ed Cracking Pressure | IMAGE |
| CW6L-FFR8-F2 | 316L SS | Check Valves | CW Series, Body:316L SS, MWP:3000psig, Sealing: Fluorocarbon FKM, Inlet: 1/2" Female FR Fitting, Outlet: 1/2" Female FR Fitting, FC-02 Special Cleaning and Packaging. | IMAGE |
| CW6L-FFR8-F3 | 316L SS | Check Valves | CW Series, Body:316L SS, MWP:3000psig, Sealing: Fluorocarbon FKM, Inlet: 1/2" Female FR Fitting, Outlet: 1/2" Female FR Fitting, FC-03 Ultra High Purity Process Specification. | IMAGE |
| CW6L-FFR8-F3-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR8-FR8-F3 | 316L SS | Check Valves | 316L, CW Series High-Purity Check Valve,s, All-Weldeds,1/2" Female FR Fitting× 1/2" Male FR Fitting, FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Cracking pressure: Less than 2psig(0.14 bar), FC-03 Cleaned | IMAGE |
| CW6L-FFR8-FR8-F3-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FFR8-Z-F3 | 316L SS | Check Valves | IMAGE | |
| CW6L-FL4 | 316L SS | Check Valves | 316L SS, CW Series, 3/8 inch Tube Fitting, Fluorocarbon FKM O-ring, 3000psig, -10°F to 400°F(-23°C to 204°C), Fixed Cracking Pressure 2psig | No Image |
| CW6L-FL4-F3-Q54477 | 316L SS | Check Valves | All-Welded Check Valves, CW Series, 316L SS, connection type and size: 1/4" Fractional Tube Fitting, Wetted Surface Roughness: Ra 10 uin. (0.25um). cleaning and packing as FC-03. | No Image |
| CW6L-FL6-F2 | 316L SS | Check Valves | 316L SS, CW Series, 3/8 inch Tube Fitting, Fluorocarbon FKM O-ring, 3000psig, -10°F to 400°F(-23°C to 204°C), Fixed Cracking Pressure 2psig, FC-02 Special Cleaning and Packaging | No Image |
| CW6L-FL8-F3-Q56734 | 316L SS | Check Valves | 316L SS, CW Series High-Purity Check Valve,s, All-Weldeds, 1/2" Tube Fitting, FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Cracking pressure: Less than 2psig(0.14 bar), FC-03 Cleaned | No Image |
| CW6L-FR12 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 3/4" Male FR Fitting, Fluorocarbon FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Cracking Pressure Less than 2psig(0.14bar) | IMAGE |
| CW6L-FR12-F2 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 3/4" Male FR Fitting, Fluorocarbon FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Cracking Pressure Less than 2psig(0.14bar), FC-02 Cleaned | IMAGE |
| CW6L-FR12-F3 | 316L SS | Check Valves | 316L SS, CW Series High-Purity Check Valves, All-Weldeds, 3/4" Male FR Fitting, FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Cracking pressure: Less than 2psig(0.14 bar), FC-03 Cleaned | IMAGE |
| CW6L-FR12-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FR12-Z-F2 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, All-Weldeds, 3/4" Male FR Fitting, CV 0.7, Karlez O-ring, 3000psig(207bar), Fixed Cracking Pressure Lessthan 2psig, FC-02 Cleaned | IMAGE |
| CW6L-FR12-Z-F3 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, All-Weldeds, 3/4" Male FR Fitting, CV 0.7, Karlez O-ring, 3000psig(207bar), Fixed Cracking Pressure Lessthan 2psig, FC-03 Cleaned | IMAGE |
| CW6L-FR16 | 316L SS | Check Valves | 316L SS,CW Series Check Valve,High-Purity Check Valve,All-Welded,1"Male FR Fitting,Fluorocarbon FKM O-Ring,3000psig(207bar),-10°F to 400°F(-23°C to 204°C),Cracking Pressure Less than 2psig(0.14bar) | IMAGE |
| CW6L-FR16-E-F3 | 316L SS | Check Valves | 316L SS, CW Series Check Valve, High-Purity Check Valve, All-Welded, 1" Integral Male FR Fitting, EPDM Seal Material, 3000psig(206bar), -50°F to 300°F(-45°C to 148°C), Cracking Pressure Less than 2psig(0.14bar), FITOK FC-03 Ultra High Purity Cleaning | IMAGE |
| CW6L-FR16-F2 | 316L SS | Check Valves | 316L，CW Series Check Valve, fully welded with 1" external threaded FR joint and FKM O-ring, rated at 3000psig (207bar), operating temperature range-10°F to 400°F (-23°C to 204°C), with opening pressure below 2psig (0.14bar), FC-02 | IMAGE |
| CW6L-FR16-F2-NP | 316L SS | Check Valves | 316L SS, CW series check valve, fully welded, 1 "external thread FR joint, FKM O-ring, 3000PSI (207bar), -10 ° F to 400 ° F (-23 ° C to 204 ° C), opening pressure less than 2psig (0.14bar), FC-02 cleaning, with tag number | IMAGE |
| CW6L-FR16-F3 | 316L SS | Check Valves | 316L SS,CW Series Check Valve,High-Purity Check Valve,All-Welded,1"Male FR Fitting,Fluorocarbon FKM O-Ring,3000psig(207bar),-10°F to 400°F(-23°C to 204°C),Cracking Pressure Less than 2psig(0.14bar),FITOK FC-03 Ultra High Purity Cleaning and Packaging | IMAGE |
| CW6L-FR16-F3-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FR16-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FR16-Z-F3 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, All-Weldeds, 1" Male FR Fitting, CV 0.7, Karlez O-ring, 3000psig(207bar), Fixed Cracking Pressure Lessthan 2psig, FC-03 Cleaned | IMAGE |
| CW6L-FR2-E-F3 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 1/8" Male FR Fitting, EPDM O-ring, FC-03 | IMAGE |
| CW6L-FR4 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 1/4" Male FR Fitting, Fluorocarbon FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Cracking Pressure Less than 2psig(0.14bar) | IMAGE |
| CW6L-FR4-AR2F3 | 316L SS | Check Valves | IMAGE | |
| CW6L-FR4-B-F3 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, All-Weldeds, 1/4" Male FR Fitting, Buna O-ring, Fixed Cracking Pressure 1/3psig(0.02bar), FC-03 Cleaned | IMAGE |
| CW6L-FR4-E | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 1/4" Male FR Fitting, Fluorocarbon FKM O-ring, 3000psig(207bar), -50°F to 248°F(-45°C to 120°C), Cracking Pressure Less than 2psig(0.14bar) | IMAGE |
| CW6L-FR4-E-F2 | 316L SS | Check Valves | CW Series check vavle, Body:316L, MWP:3000psig, Sealing:EPDM, Conn.:1/4in. × 1/4in. Male FR, Cracking Pressure:less than 2 psig, Cv:0.70,cleaning and packing according to ASTM G93, Level C. | IMAGE |
| CW6L-FR4-E-F2-OLD | 316L SS | Check Valves | IMAGE | |
| CW6L-FR4-E-F3 | 316L SS | Check Valves | 316L SS, CW Series Check Valves, High-Purity Check Valves, All-Welded, 1/4" Male FR Fitting, EPDM O-ring, FC-03 Cleaning and Packaging | IMAGE |
| CW6L-FR4-F2 | 316L SS | Check Valves | Check Valves, Body:316L SS, MWP:3000psig, Poppet:FKM Bonded316 SS, Conn.:1/4in. × 1/4in. Male FR (Metal Gasket Face Seal), Cv:0.7, All-welded Design, FC-02 Cleaned | IMAGE |
| CW6L-FR4-F3 | 316L SS | Check Valves | 316L SS, CW Series High-Purity Check Valve,s, All-Weldeds, 1/4" Male FR Fitting, FKM O-ring, 3000psig(207bar), -10°F to 400°F(-23°C to 204°C), Cracking pressure: Less than 2psig(0.14 bar), FC-03 Cleaned | IMAGE |
