Cylinder Connection
Features
◎ CGA DISS Series
Non-rotating design.
Nipple with TB or FR fitting electropolished, the internal surface roughness finished to an average of Ra 9 μin. (0.23 μm).
Cleaned for Ultra High Purity Service; packaged in a Class 100 clean room.
Test with helium (maximum allowable leak rate: 1 x 10 mbar·l/s)
◎ CGA Series
CGA V-1-2005 compliant
Nipple with TB or FR fitting electropolished, the internal surface roughness finished to an average of Ra 9 μin. (0.23 μm).
Test with helium (maximum allowable leak rate: 1 x 10-9 mbar·l/s),
◎ DIN Series
DIN 477-1
Nipple with TB fitting electropolished, the internal surface roughness finished
compliant to an average of Ra 9 μin. (0.23 μm).
Test with helium (maximum allowable leak rate: 1 x 10-9 mbar·l/s)

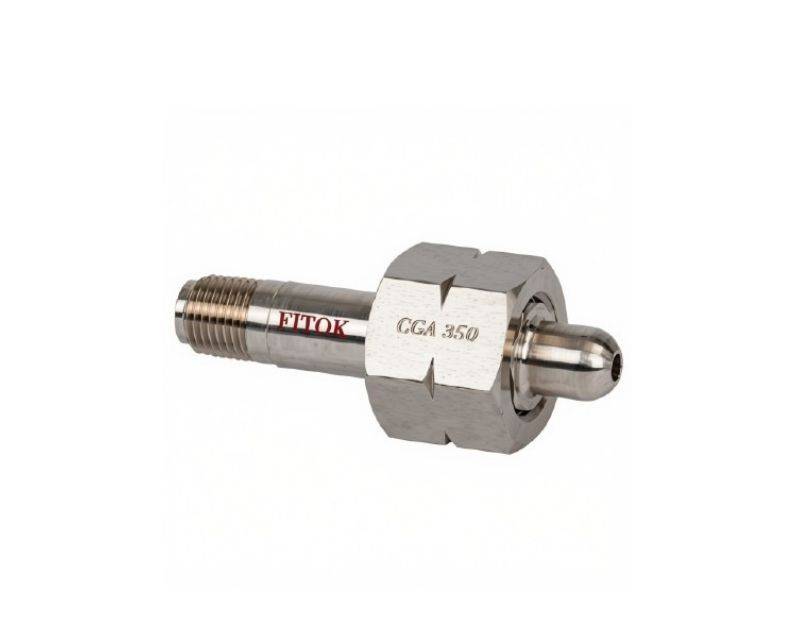

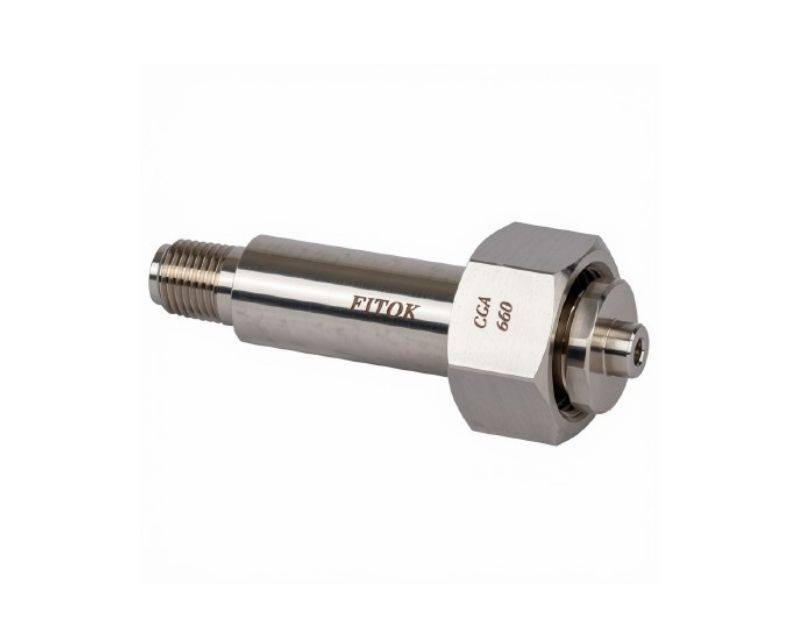

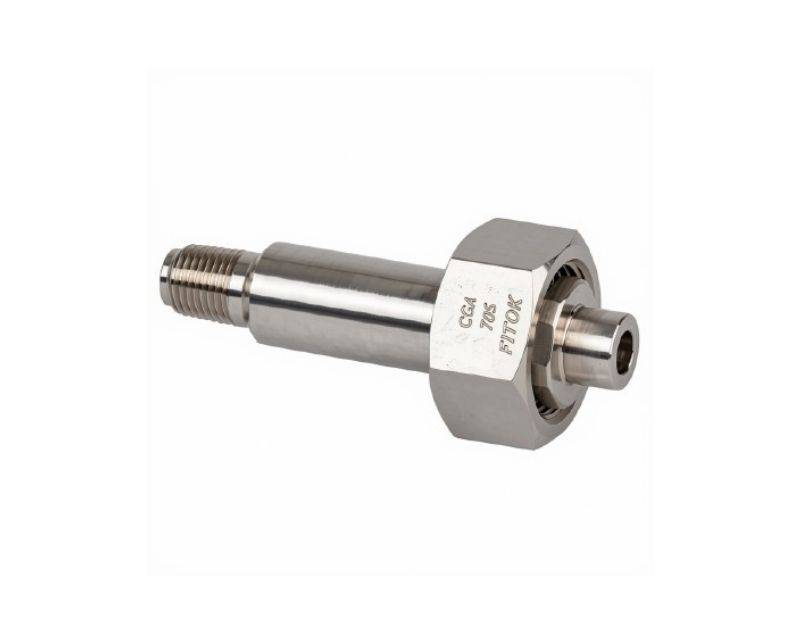

316L SS, CGA Serie Cylinder Connection Assembly, C296 × Tube Butt Weld
316L SS, UHP CGA Serie Cylinder Connection Assembly × Butt Weld
316L SS, UHP CGA Serie Cylinder Connection Assembly × Male NPT
CGA Serie Cylinder Connection Assembly, CGA × Adapter tube
316L SS, DIN Series Cylinder Connection Assembly, DIN 1 × Male NPT
316L SS, DIN Series Cylinder Connection Assembly, DIN 1 × Tube adapter
