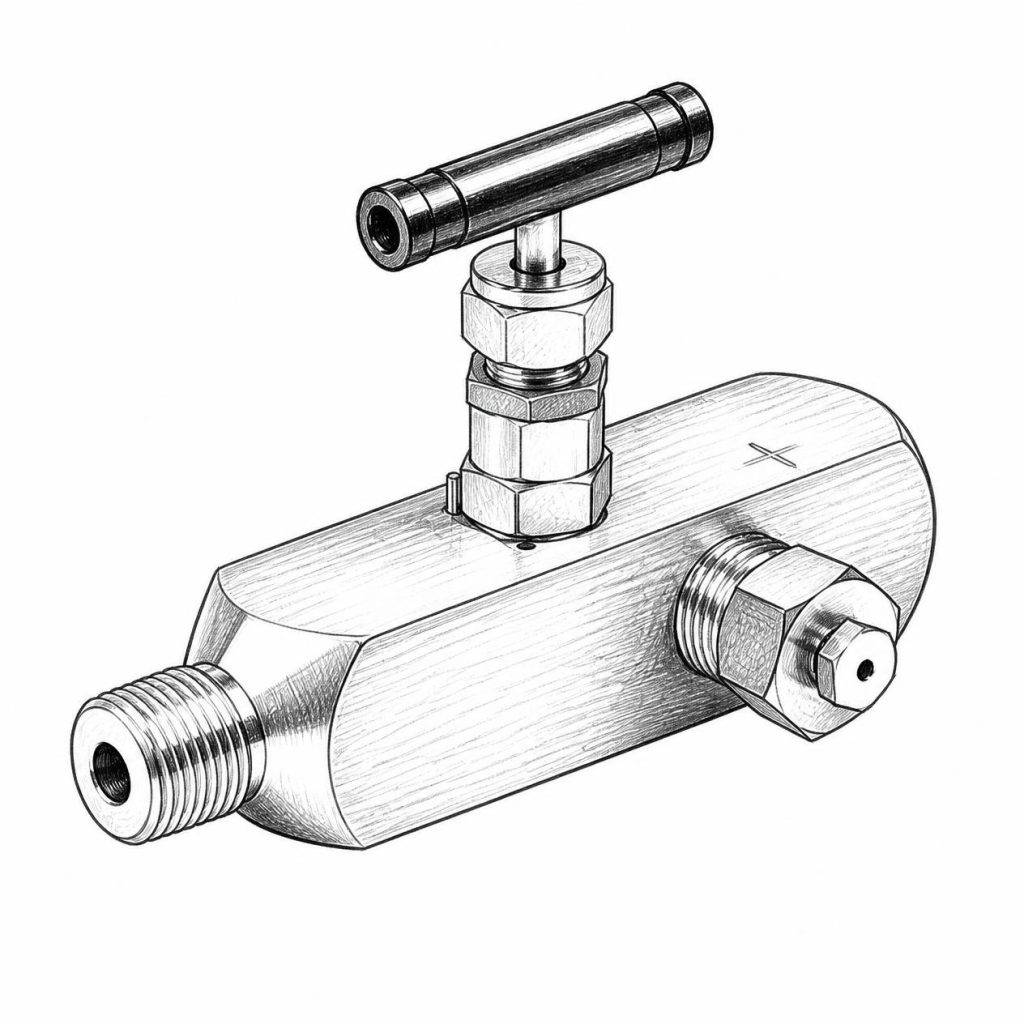

Gauge Valves GV, GVH and GR series
| Part Number | Material | Category | Description | Image |
|---|---|---|---|---|
| GRM-NS8-FNS8-E-S | Alloy-400 | Gauge Valves | Multiport Gauge Valves, 1/2" Male NPT Inlet × (3) 1/2" Female NPT Outlets, Monel Body&Stem, MAWP 5, 000 psi, Orifice 0.25", Acetal Seat, Long Body Style, Includes 1/2" Monel Bleed Plug, NACE Compliant MR0175 | IMAGE |
| GR6L-NS8-FMS20-C | 316L SS | Gauge Valves | Body:316L SS, MWP:6000psig, Packing:PTFE, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. (F) Metric M20 with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle, -54 C to 232 C Miniature Type | IMAGE |
| GR6L-NS8-FNS8 | 316L SS | Gauge Valves | Body:316L SS, MWP:6000psig, Packing:PTFE, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle, -54 C to 232 C | IMAGE |
| GRS12-NS8-FNS4-CP-S-Q95235 | 321 SS | Gauge Valves | GR series, maximum working pressure 6000psi, operating temperature-54℃ to 232℃, inlet with 1/2NPT male thread, outlet with 1/4NPT female thread, inner diameter 6.4mm | IMAGE |
| GRSS-MS20-FMS20 | 316 SS | Gauge Valves | 316 SS, GR Series Plug Tip Gauge Valves, M20×1.5 Male Metric Thread × M20×1.5 Female Metric Thread × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GRSS-NS12-FNS12 | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:PTFE, Steat:Acetal, Inlet:3/4in. (M)NPT, Outlets:3Ports x 3/4in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Al T-bar Handle, Plug Stem Tip | IMAGE |
| GRSS-NS6-FNS6 | 316 SS | Gauge Valves | 316 SS, GR Series Plug Tip Gauge Valves, 3/8 Male NPT × 3/8 Female NPT , PTFE Packing, 6000psig(414bar), -28°C to 121°C. | IMAGE |
| GRSS-NS8-FNS4-C | 316 SS | Gauge Valves | 316 SS, GR Series Plug Tip Gauge Valves, 3/8 Male NPT × 1/4 Female NPT , PTFE Packing, 6000psig(414bar), -28°C to 121°C, miniatur Type | IMAGE |
| GRSS-NS8-FNS8 | 316 SS | Gauge Valves | 316 SS, GR Series Plug Tip Gauge Valves, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GRSS-NS8-FNS8-C | 316 SS | Gauge Valves | 316 SS, GR Series Plug Tip Gauge Valves, Miniature Type, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GRSS-NS8-FNS8-P | 316 SS | Gauge Valves | 316 SS, GR Series Plug Tip Gauge Valves, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PEEK Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVH6L-NS8-FNS8 | 316L SS | Gauge Valves | 316 SS, MWP:10,000psig, Packing:PTFE, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Al T-bar Handle | IMAGE |
| GVHC-NS12-FNS8 | Alloy C-276 | Gauge Valves | Alloy C-276, MWP:10,000psig, Packing:PTFE, Inlet:3/4in. (M)NPT, Outlets:3Ports x 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Al T-bar Handle | IMAGE |
| GVHC-NS8-FNS8 | Alloy C-276 | Gauge Valves | Body:Alloy C-276, MWP:6000psig, Packing Material:PTFE, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. Femal NPT with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle | IMAGE |
| GVHD7-NS8-FNS8 | Duplex 2507 | Gauge Valves | MWP:10,000psig, Packing:PTFE, Inlet:1/2in. (M)NPT, Outlets:3Ports × 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Al T-bar Handle | IMAGE |
| GVHSS-NS8-FNS8 | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 10,000psig(690bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVHSS-NS8-FNS8-C | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, Miniature Type, Process: 1/2 Male NPT, Instrument: 1/2 Female NPT. Vent: Vent Stem. MWP: 10000psig(690bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVHSS-NS8-FNS8-CHC-S | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, Miniature Type, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing,Tip material:Alloy C-276,10,000psig(690bar), -65°F to 450°F(-54°C to 232°C), NACE MR0175 | IMAGE |
| GVHSS-NS8-FNS8-C-S | 316 SS | Gauge Valves | IMAGE | |
| GVHSS-NS8-FNS8-GM | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, Inlet:1/2 Male NPT, Outlet: 1/2 Female NPT, Graphite Packing, 10,000psig(690bar), -65°F to 1200°F(-54°C to 649°C), Stainless Steel Bar Handle. | IMAGE |
| GVHSS-NS8-FNS8-HC-S | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing,Tip material:Alloy C-276,10,000psig(690bar), -65°F to 450°F(-54°C to 232°C), NACE MR0175 | IMAGE |
| GVHSS-NS8-FNS8-S | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing,10,000psig(690bar), -65°F to 450°F(-54°C to 232°C), NACE MR0175 | IMAGE |
| GV4L-RS8-FNS8-C | 304L SS | Gauge Valves | 304L Stainless Steel, GV Series Ball Tip Gauge Valve, Miniature Type Body, 1/2 Male ISO Parallel Thread (RS) × 1/2 Female NPT, Vent stem, PTFE Packing, 6000 psig (414 bar), -65°F to 450°F (-54°C to 232°C) | IMAGE |
| GV6L-MS20-FMS20 | 316L SS | Gauge Valves | IMAGE | |
| GV6L-NS12-FNS8 | 316L SS | Gauge Valves | Gauge Valve 3/4"M X 1/2"F 6000# M-P 316L | IMAGE |
| GV6L-NS12-FNS8-S | 316L SS | Gauge Valves | 316L SS, MWP:6,000psig, Inlet:3/4in. (M)NPT, Outlets:3Ports × 1/2in. (F)NPT with Plug & Bleed Valve on Side Ports, NACE MR0175 | IMAGE |
| GV6L-NS4-FNS4 | 316L SS | Gauge Valves | 316L stainless steel, GV series, maximum working pressure 6000psi, operating temperature -54 °C to 232 °C, inlet is 1/4NPT male thread, outlet is 1/4NPT female thread | IMAGE |
| GV6L-NS4-FNS4-C | 316L SS | Gauge Valves | 316L SS GV Series Gauge Valves, 1/4 Male NPT Inlet/process, 1/4 Female NPT Outlet/instrument, Miniature Type | IMAGE |
| GV6L-NS4-FNS4-C-S | 316L SS | Gauge Valves | 316L SS GV Series Gauge Valves, 1/4 Male NPT Inlet/process, 1/4 Female NPT Outlet/instrument, Miniature Type, NACE | IMAGE |
| GV6L-NS8-3FNS8 | 316L SS | Gauge Valves | Valve 316 1/2 M / 3 × 1/2 F 6000/1000# | IMAGE |
| GV6L-NS8-FMS20 | 316L SS | Gauge Valves | IMAGE | |
| GV6L-NS8-FNS8 | 316L SS | Gauge Valves | Body:316L SS, MWP:6000psig, Packing Material:PTFE, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. Femal NPT with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle | IMAGE |
| GV6L-NS8-FNS8-C | 316L SS | Gauge Valves | 316LSS, GV Series Ball Tip Gauge Valves, Miniature Type, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GV6L-NS8-FNS8-C-F2 | 316L SS | Gauge Valves | Body:316L SS, MWP:6000psig, Packing:PTFE, Conn.:1/2" Male × 1/2" Female NPT, w/ Bleed Screw,Aluminum Bar Handle, Miniature Type, FC-02 Cleaned | IMAGE |
| GV6L-NS8-FNS8-F2 | 316L SS | Gauge Valves | IMAGE | |
| GV6L-NS8-FNS8-G | 316L SS | Gauge Valves | Body:316L SS, MWP:6000psig, Packing:Graphite, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports,Anodized Aluminum T-bar Handle | IMAGE |
| GVD7-NS12-FNS8 | Duplex 2507 | Gauge Valves | IMAGE | |
| GVD7-NS8-FNS8 | Duplex 2507 | Gauge Valves | Body:Super Duplex S32750, MWP:6000psig, Packing Material:PTFE, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. Femal NPT with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle | IMAGE |
| GVD7-NS8-FNS8-S | Duplex 2507 | Gauge Valves | IMAGE | |
| GVM-NS12-FNS8 | Alloy-400 | Gauge Valves | IMAGE | |
| GVM-NS12-FNS8-F2 | Alloy-400 | Gauge Valves | GV series, maximum working pressure 5000psi, working temperature -54 ℃ to 232 ℃, inlet 3/4NPT male thread, outlet 1/2NPT female thread, FC-02 special cleaning and packaging process | IMAGE |
| GVM-NS8-FNS8 | Alloy-400 | Gauge Valves | Body:Monel 400, MWP:5000psig, Packing Material:PTFE, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. Femal NPT with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle | IMAGE |
| GVSS-MS20-FNS8 | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS12-3FNS8 | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, 3/4 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVSS-NS12-FNS12 | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:PTFE, Inlet:3/4in. (M)NPT, Outlets:3Ports x 3/4in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Al T-bar Handle | IMAGE |
| GVSS-NS12-FNS8 | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, 3/4 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVSS-NS12-FNS8-C-G | 316 SS | Gauge Valves | 316 SS,GV Series Gauge Valves, 3/4 Male NPT Inlet/process, 1/2 Female NPT Outlet/instrument,Miniature Type, Graphite packing | IMAGE |
| GVSS-NS12-FNS8-G | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS12-FNS8-S | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:PTFE, Inlet:3/4in. (M)NPT, Outlets:3Ports x 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle, NACE MR0175 | IMAGE |
| GVSS-NS4-FNS4 | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS4-FNS4-C | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:PTFE, Con.:1/4in. (M)x 1/4in. (F)NPT, w/ Bleed Screw, Aluminum T-bar Handle, Miniature Type | IMAGE |
| GVSS-NS4-FNS4-C-F2 | 316 SS | Gauge Valves | 316 SS, GV Series Gauge Valve, MWP:6000psig, Packing:PTFE, Con.:1/4in.NPT (M)x 1/4in. (F)NPT, Aluminum T-bar Handle, Miniature Type, FC-02 cleaned | IMAGE |
| GVSS-NS4-FNS4-C-S | 316 SS | Gauge Valves | 316 SS GV Series Gauge Valves, 1/4 Male NPT Inlet/process, 1/4 Female NPT Outlet/instrument,Miniature Type, NACE MR0175 | IMAGE |
| GVSS-NS4-FNS4-S | 316 SS | Gauge Valves | 316 SS, MWP: 6000psig, Packing: PTFE, Inlet: 1/4" Male NPT, Outlets: 1/4" Female NPT, with Plug&Bleed Valve on Side Ports, Black Aluminum Bar Handle, Comply with NACE MR0175. | IMAGE |
| GVSS-NS6-FNS4-C | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS8-3FNS8 | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS8-FMS20 | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS8-FMS20-C | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS8-FNS8 | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVSS-NS8-FNS8-C | 316 SS | Gauge Valves | 316 SS GV Series Gauge Valves, Miniture Type,Inlet 1/2" MNPT, Outlet 1/2" FNPT, With Bleed Screw, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVSS-NS8-FNS8-C-F2 | 316 SS | Gauge Valves | 316 Stainless Steel, GV Series Ball Tip Gauge Valve, Miniature Type Body, 1/2 Male NPT × 1/2 Female NPT, Vent stem, PTFE Packing, 6000 psig (414 bar), -65°F to 450°F (-54°C to 232°C)FC-02 cleaning and packing process | IMAGE |
| GVSS-NS8-FNS8-C-G | 316 SS | Gauge Valves | 316 SS GV Series Gauge Valves, 1/2 Male NPT Inlet/process, 1/2 Female NPT Outlet/instrument,Miniature Type, Graphite packing | IMAGE |
| GVSS-NS8-FNS8-C-M | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS8-FNS8-CW-GM | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, Miniature Type, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, Stellite Tip,Graphite Packing,Stainless Steel Bar Handle. | IMAGE |
| GVSS-NS8-FNS8-F2 | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS8-FNS8-G | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:Graphite, Inlet:1/2in. (M)NPT, Outlets:3Ports x 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Al T-bar Handle | IMAGE |
| GVSS-NS8-FNS8-GM | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS8-FNS8-G-S | 316 SS | Gauge Valves | IMAGE | |
| GVSS-NS8-FNS8-S | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C), NACE MR0175-compliant | IMAGE |
| GVTI-NS8-FNS8 | Titanium | Gauge Valves | Body: Titanium, GV Series Ball Tip Gauge Valves, MWP: 3500psig, Packing: PTFE, Inlet: 1/2in. (M)NPT, Outlet: 1/2in.(F)NPT, Vent & Test: 1/2 Female NPT (Bleed Valve with Plug) | IMAGE |
| GRSS-NS8-FNS8-E | 316 SS | Gauge Valves | 316 SS, GR Series Plug Tip Gauge Valves, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVHSS-NS8-FNS8-E | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, Lagging Extension Body Type, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 10,000psig(690bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GVSS-NS8-FNS8-E | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, Lagging Extension Body Type, 1/2 Male NPT × 1/2 Female NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | IMAGE |
| GRSS-FNS8 | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Plug Tip, Packing:PTFE, Inlet:1/2in. (F)NPT, Outlets:3Ports x 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle | No Image |
| GRSS-FNS8-NS8-C | 316 SS | Gauge Valves | 316 SS, GR Series Plug Tip Gauge Valves, Miniature Type,1/2 Female NPT × 1/2 Male NPT × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | No Image |
| GV6L-FMS20 | 316L SS | Gauge Valves | No Image | |
| GV6L-FNS8 | 316L SS | Gauge Valves | No Image | |
| GV6L-FNS8-C | 316L SS | Gauge Valves | Body:316L SS, MWP:6000psig, Packing:PTFE, Conn.:1/2in. (F)NPT × 1/2in. (F)NPT, w/ Bleed Screw, Aluminum Bar Handle, Miniature Type | No Image |
| GV6L-FNS8-NS8 | 316L SS | Gauge Valves | Body:316L SS, Ball Tip, Inlet:1/2in. (F)NPT, Outlet:1/2in. (M)NPT, Test/Vent:1/2in. (F)NPT, PTFE Packing, 6000 psig, Standard Type | No Image |
| GV6L-MS20 | 316L SS | Gauge Valves | No Image | |
| GV6L-NS8 | 316L SS | Gauge Valves | No Image | |
| GV6L-NS8-S | 316L SS | Gauge Valves | No Image | |
| GVD7-FNS8-NS8 | Duplex 2507 | Gauge Valves | No Image | |
| GVHSS-FNS8-C | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, Miniature Type, Process: 1/2 Female NPT, Instrument: 1/2 Female NPT. Vent: Vent Stem. MWP: 10000psig(690bar), -65°F to 450°F(-54°C to 232°C) | No Image |
| GVHSS-FNS8-NS8 | 316 SS | Gauge Valves | 316 SS, GVH Series Ball Tip Gauge Valves, 1/2 Female NPT × 1/2 Male NPT × 1/2 Female NPT, PTFE Packing, 10,000psig(690bar), -65°F to 450°F(-54°C to 232°C) | No Image |
| GVHSS-NS12-FNS8 | 316 SS | Gauge Valves | No Image | |
| GV-PA-RK | Repair Kits | GV meter valve maintenance kit, including packing, gasket, groove pin, grease and maintenance instructions. | No Image | |
| GVS4-FMS20 | 304 SS | Gauge Valves | No Image | |
| GVS4-FNS8-C | 304 SS | Gauge Valves | Body:304 SS, Packing:PTFE, Conn.:1/2in. (F)NPT × 1/2in. (F)NPT, w/ Bleed Screw, Aluminum Bar Handle, Miniature Type | No Image |
| GVSS-BP8-RG8-G | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:Graphite, Inlet:1/2 Male ISO Parallel Thread (BP), Outlets: 1/2in. (M)BSPP (Gauge, RG Gasket) | No Image |
| GVSS-FL4-C | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:PTFE, Conn.:1/4in. x 1/4in, w/ Bleed Screw, Aluminum Bar Handle, Miniature Type | No Image |
| GVSS-FL4-V4-Q23482 | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, 1/4" Tube Fitting × 1/4" Tube Fitting × 1/4 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C), as per drawing | No Image |
| GVSS-FL8-FNS8-C | 316 SS | Gauge Valves | No Image | |
| GVSS-FMS20 | 316 SS | Gauge Valves | No Image | |
| GVSS-FMS20-G | 316 SS | Gauge Valves | No Image | |
| GVSS-FMS20LH-FMS20 | 316 SS | Gauge Valves | No Image | |
| GVSS-FMS20-MS20-C | 316 SS | Gauge Valves | 316 SS, GV Series Gauge Valves, M20 × 1.5 Female Metric Thread(for RP) × M20 × 1.5 Male Metric Thread (for RG), Miniature Type. | No Image |
| GVSS-FNS4-NS4 | 316 SS | Gauge Valves | No Image | |
| GVSS-FNS6-C | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, Miniature Type, 3/8 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F | No Image |
| GVSS-FNS8 | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:PTFE, Inlet:1/2in. (F)NPT, Outlets:3Ports x 1/2in. (F)NPT with Plug&Bleed Valve on Side Ports, Anodized Aluminum T-bar Handle | No Image |
| GVSS-FNS8-C | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, Miniature Type, 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | No Image |
| GVSS-FNS8-C-F2 | 316 SS | Gauge Valves | No Image | |
| GVSS-FNS8-C-ME | 316 SS | Gauge Valves | 316 Stainless Steel, GV Series Ball Tip Gauge Valve, Miniature Type Body, 1/2 Female NPT × 1/2 Female NPT, Vent stem, PTFE Packing, 6000 psig (414 bar), -65°F to 450°F (-54°C to 232°C),components minimun 316SS | No Image |
| GVSS-FNS8-C-S | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, Miniature Type, 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C), NACE MR0175 | No Image |
| GVSS-FNS8-F2 | 316 SS | Gauge Valves | No Image | |
| GVSS-FNS8-FMS20-C | 316 SS | Gauge Valves | No Image | |
| GVSS-FNS8-FNS4-M | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:PTFE, Inlet:1/2in. (F)NPT, Outlets:1/4in. (F)NPT , Stainless Steel Bar | No Image |
| GVSS-FNS8-G | 316 SS | Gauge Valves | No Image | |
| GVSS-FNS8-M | 316 SS | Gauge Valves | 316 stainless steel, maximum working pressure: 6000PSI, packing: PTFE, inlet/outlet: 1/2 inch (F) NPT, stainless steel rod handle | No Image |
| GVSS-FNS8-NS8 | 316 SS | Gauge Valves | No Image | |
| GVSS-FNS8-NS8-C | 316 SS | Gauge Valves | No Image | |
| GVSS-FNS8-NS8-CW-GM | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, Miniature Type, 1/2 Female NPT × 1/2 Male NPT × 1/2 Female NPT, PTFE Packing,Stellite Tip,Graphite Packing,Stainless Steel Bar Handle. | No Image |
| GVSS-FNS8-NS8-CW-M | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, Miniature Type, 1/2 Female NPT × 1/2 Male NPT × 1/2 Female NPT, PTFE Packing,Stellite Tip,Stainless Steel Bar Handle. | No Image |
| GVSS-FNS8-S | 316 SS | Gauge Valves | Gauge Valves, 316 SS, MWP:6000psig, Packing:PTFE, Inlet/Outlet:1/2in. (F)NPT, Black Aluminum Bar Handle, NACE Application. | No Image |
| GVSS-FRP8 | 316 SS | Gauge Valves | No Image | |
| GVSS-FRP8-C | 316 SS | Gauge Valves | BB Series, MWP:6000psig, working temperature:-54~232℃, inlet and outlet:1/2" BSPP Female | No Image |
| GVSS-MS20 | 316 SS | Gauge Valves | No Image | |
| GVSS-MS20-FMS20 | 316 SS | Gauge Valves | No Image | |
| GVSS-MS20-FMS20-C | 316 SS | Gauge Valves | No Image | |
| GVSS-MS20-FMS20-G | 316 SS | Gauge Valves | No Image | |
| GVSS-MS20-FMS20-W-GM | 316 SS | Gauge Valves | No Image | |
| GVSS-MS20-FMS20-W-GR | 316 SS | Gauge Valves | 316 SS, MWP:6000psig, Packing:Graphite, Inlet:M20 × 1.5 Male Metric Thread, Outlets:3Ports x 1.5 Female Metric Thread, with 1/2in. NPT Plug&Bleed Valve on Side Ports, Anodized Al T-bar Handle Red | No Image |
| GVSS-NS8 | 316 SS | Gauge Valves | No Image | |
| GVSS-NS8-C | 316 SS | Gauge Valves | No Image | |
| GVSS-NS8-C-G | 316 SS | Gauge Valves | 316 SS, MAWP:6, 000psig, Packing:Graphite, Conn.:1/2in. (M)NPT × 1/2in. (M)NPT, w/ Bleed Screw, Aluminum Bar Handle, Miniature Type | No Image |
| GVSS-RG8 | 316 SS | Gauge Valves | GV Series Gauge valves, 316 SS, MWP:6000psig, Packing:PTFE, Inlet&Outlet: 1/2" Female G thread, with plug and test / vent port, details see drawing | No Image |
| GVSS-RP8-FMS20-C | 316 SS | Gauge Valves | GV Series,316 SS, 1/2"male BSPP (RP), M20×1.5, miniature type | No Image |
| GVSS-RP8-FRP8 | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, 1/2 Male BSPP , × 1/2 Female BSPP , × 1/2 Female NPT, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | No Image |
| GVSS-RP8-RG8 | 316 SS | Gauge Valves | GV series, maximum working pressure 6000psi, working temperature -54 ℃ to 232 ℃, inlet and outlet with 1/2 ISO parallel thread | No Image |
| GVSS-RP8-RG8-C | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valves, Miniature Type, 1/2 Male ISO Paralle Thread × 1/2 Female ISO Parallel Thread, PTFE Packing, 6000psig(414bar), -65°F to 450°F(-54°C to 232°C) | No Image |
| GVSS-RS8-FRP8-G | 316 SS | Gauge Valves | No Image | |
| GVSS-RT8-FRT8 | 316 SS | Gauge Valves | No Image | |
| GVSS-RT8-FRT8-G | 316 SS | Gauge Valves | 316 SS, GV Series Ball Tip Gauge Valve, 1/2 Male BSPT × 1/2 Female BSPT, Graphite Packing, 6000psig(414bar), -65°F to 1200°F(-54°C to 649°C) | No Image |
For more information on product models or customization services, please send your Inquiry
