Medium and High Pressure Valve
Connection Information :
Medium and high pressure fittings offer reliable leak-tight gas seal installation in small molecule applications, along with consistent and dependable remake.
In addition, they can be installed on cold-drawn or annealed tubing either by turn or toque and are gaugeable upon initial installation. Carburization process for medium-pressure front and back ferrule and nut is accomplished at low temperatures and is patented.
Sour Service Products
Oil and gas exploration, transportation and pipeline facilities for sour media with H2S.
• MAWP: 30,000 Psig
• Operating temperature range: -198℃ – 427 ℃
• Body material: 316 annealed stainless steel
• NACE MR0175 compliant
Type Fitting Medium and High Pressure.
- 20D Series Tube Fitting Connections : Working Pressure up to 20,000 psig (1379 bar)
- 20M Series Medium Pressure Coned and Threaded Connections : Working Pressure up to 20,000 psig (1379 bar)
- 60 Series High Pressure Coned and Threaded Connections : : Working Pressure up to 60,000 psig (4137 bar)

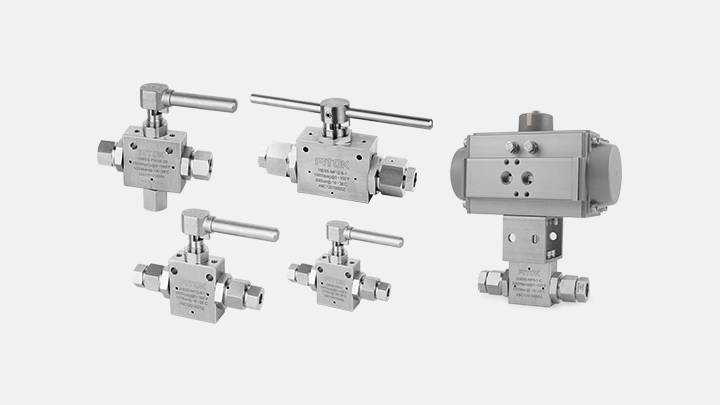

Medium & High Pressure Ball Valve
◎10B Series: 10,000 psig (690 bar)
◎15B Series: 15,000 psig (1034 bar)
◎20B Series: 20,000 psig (1379 bar)

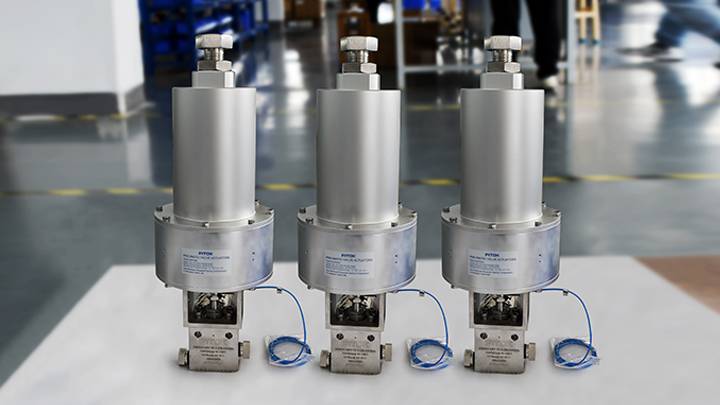

Medium and High Pressure Needle Valve
◎10N Series: 10,000 psig (690 bar)
◎15N Series 15,000 psig (1034 bar)
◎20N Series 20,000 psig (1379 bar)
◎30N Series 30,000 psig (2068 bar)
◎60N Series 60,000 psig (4137 bar)

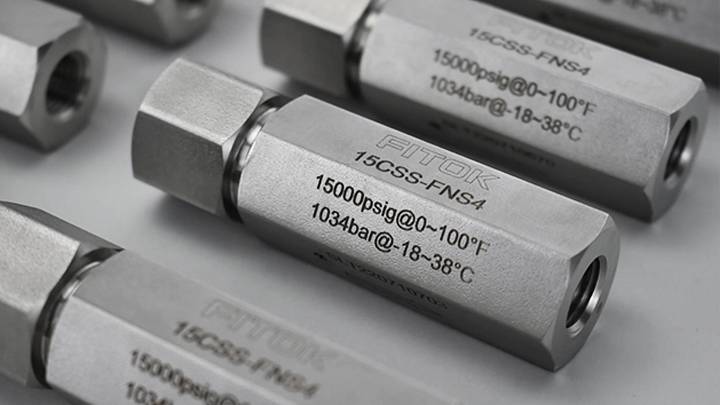

Medium & High Pressure Check Valves
◎ 10,000 psig (690 bar) 10C, 10CO Series:
◎ 15,000 psig (1034 bar) 15C, 15CO Series:
◎ 20,000 psig (1379 bar) 20C, 20CO Series:
◎ 60,000 psig (4137 bar) 60C, 60CO Series:

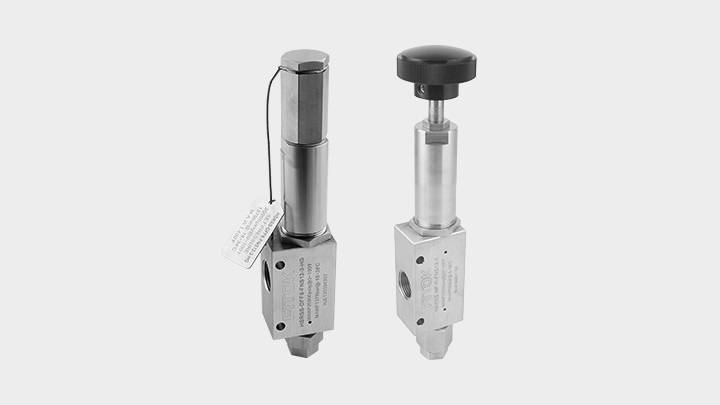

Medium and High Pressure Relief Valves
◎HSR Series: 20,000 psig (1379 bar)
◎HMR Series: 60,000 psig (4137 bar)
◎HAR Series: 20,000 psig (1379 bar)

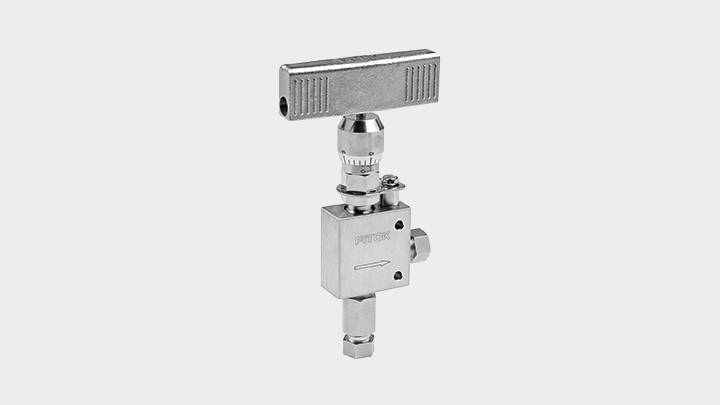

Medium and High Pressure Metering Valves
◎15M Series: 15,000 psig (1034 bar)
◎30M Series: 30,000 psig (2068 bar)
◎60M Series: 60,000 psig (4137 bar)
