20M Series Medium Pressure Fittings
Features
20M Series Medium Pressure Fittings 20,000 psig (1379 bar).
◎ Pressures up to 20000 psig (1379 bar)
◎ Working temperature range : -423°F to 1200°F(-252°C to 649°C)
◎ Coned-and-Threaded Connection.
◎ Metal-to-metal seal provides perfect leak-tight service from critical vacuum to high pressure.
◎ Anti-vibration connection components available.
◎ Fittings are easy to disconnect and re-tighten.
◎ Every fitting is stamped with size, material, and heat code.
Application Medium Pressure Fitting
Well Head Control Panels
Corrosion resistant 316 stainless steel materials, Innovative design to maintain leak-tight performance at a variety of pressures
Chemical Injection Skids
Highest quality seal materials ensure a longer product life when cycling harsh chemicals
Hydraulic Power Units
Strain-hardened stainless steel for compact design and superior strength

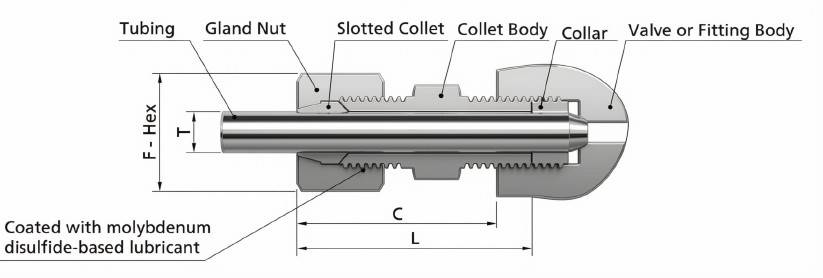

Anti-vibration Gland Assemblies
Working pressure: 20,000 psig (1379 bar).
Tubing systems may be subject to extreme vibration or shock. In such applications, these assemblies provide the same reliable connection as standard FITOK glands to essentially prolong vibrational fatigue life.
A complete ordering number for anti-vibration gland assembly (for example : SS-MAV-MF4) includes gland nut, slotted collet and collet body.
These three parts can also be ordered separately, as shown in the tables below. To order components with anti-vibration gland assemblies, add “AV” to ordering number.
