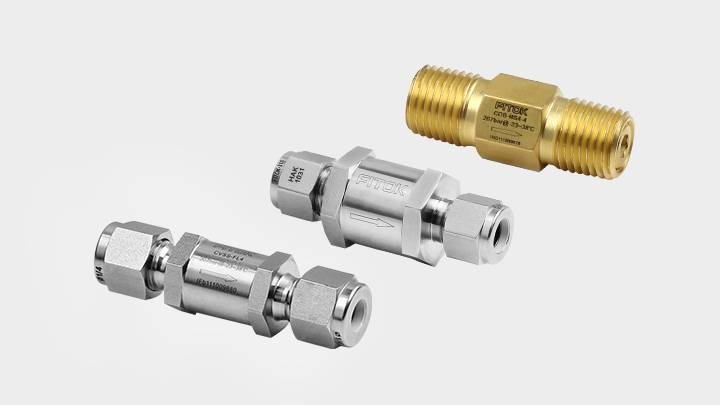

Poppet Check Valves
CV, CH, and CO Series
CV, CH, and CO Series Poppet Check Valves support working pressures of up to 6000 psig (414 bar) and a temperature range of -10°F to 375°F (-23°C to 190°C). These valves feature a non-adjustable cracking pressure ranging from 1/3 psig to 25 psig (0.02 bar to 1.7 bar) and can be mounted in any direction. A variety of end connections and materials are available. Some series meet ECE R110 and EC79 certification requirements.
Features
- Cracking pressure: 1/3 to 25 psig (0.02 to 1.7 bar)
- Variety of end connections and materials available
- Non-adjustable cracking pressure, mountable in any directions
CV Series Check Valves
◎ Resilient O-ring seat design for leak free sealing
◎ Working pressure up to: 3000 psig (207 bar)
◎ Working temperature: -10°F to 375°F (-23°C to 190°C)
◎ Cracking pressure: 1/3 to 25 psig (0.02 to 1.7 bar)
◎ Variety of end connections and materials available
◎ Non-adjustable cracking pressure, mountable in any directions
CH Series Check Valves
◎ Seat ring continuously cleaned by media, avoiding secondary pollution
◎ Working pressure up to: 6000 psig (414 bar)
◎ Working temperature: 10°F to 400°F (-12°C to 204°C)
◎ Cracking pressure: 1/3 to 25 psig (0.02 to 1.7 bar)
◎ Variety of end connections and materials available
◎ Non-adjustable cracking pressure, mountable in any directions
◎ ECE R110 type approved valves for use in CNG/NGV application available
CO Series Check Valves
◎ Compact design, one-piece body
◎ Working pressure up to: 3000 psig (207 bar)
◎ Working temperature: -10 °F to 375°F (-23°C to 190°C)
◎ Cracking pressure: 1/3 to 25 psig (0.02 to 1.7 bar)
◎ Variety of end connections and materials available
◎ Non-adjustable cracking pressure, mountable in any directions
≅ Please click the page on the side to view the data sheet for Poppet Check Valves.
