Quick Connect
Quick-connects are mechanical devices which rapidly join and separate fluid system components without the use of tools with benefits:
- Easy to use
- Minimum equipment downtime
- No tools required to make or break a connection
- No possibility of cross threading, galling, under-tightening, or over-tightening
- Single-end shutoff (SENSO)-These quick-connects offer a shut off valve in the body with no shutoff in the stem. The body valve automatically shuts off when the stem is removed.
- Double-end shutoff (DESO)-These quick-connects are the same as the SESO, but they have a small poppet valve in the stem as well. Thus, when the stem is removed from the body, pressure is shut off automatically at both ends.
This feature minimizes : SPILLAGE-The amount of system fluid that escapes when a quick-connect is uncoupled.
AIR INCLUSION–The amount of air trapped between’ the body and stem valves that enters the system when is coupled.
A typical quick-connect assembly consists of a male stem and a female body. The male stem is inserted into or against the female body. A locking mechanism then locks the component halves together.
Typically, an O-ring or elastomer is employed to create a seal to atmosphere.

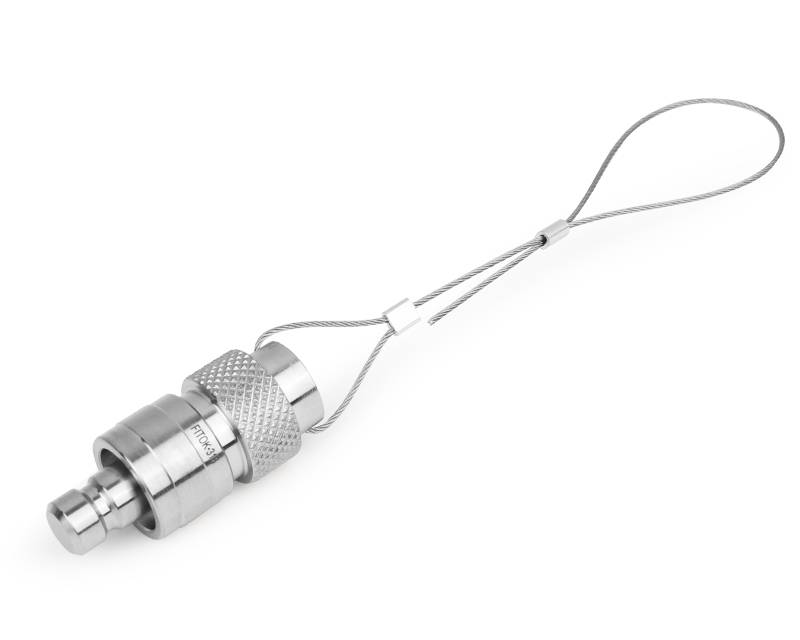

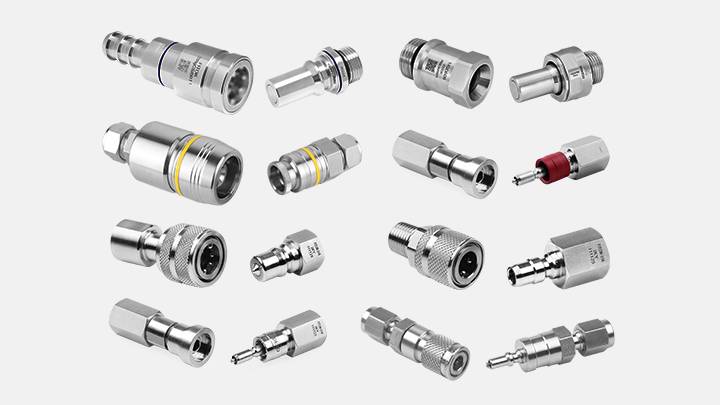

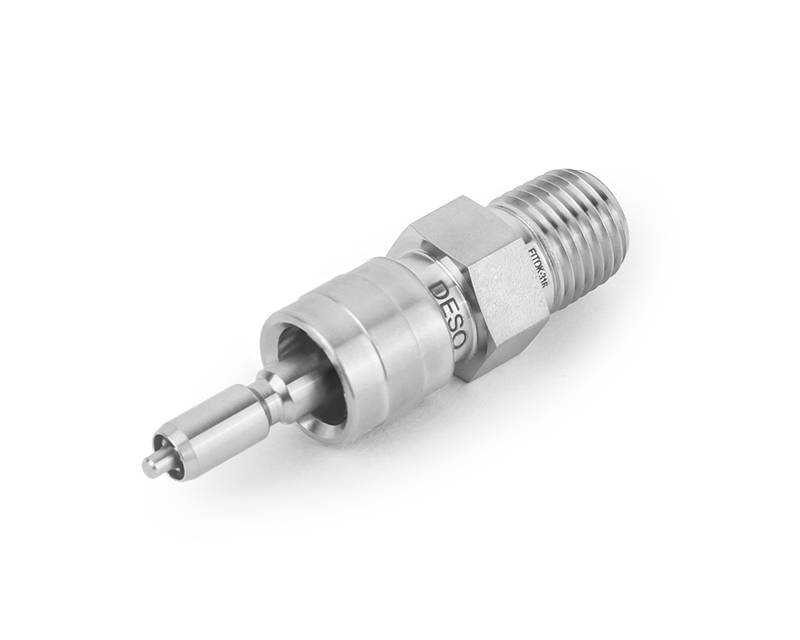

QC General Series Quick Connect
Features
- Working pressure up to: 3000 psig (207 bar)
- Materials: Stainless steel or brass
- Reliable, leak-tight O-ring seal for vacuum or pressure systems
- Interchangeable with other key manufacturers’ products
- Single-end shutoff, double-end shutoff and full-flow model available
- Push to connect coupling to enable quick and easy operation
- Stem protector, body protector and keyed options available
- Locking mechanism with large contact area to ensure reliable stem retainment.
- Many application with connected to Hoses
- Color-coded, positive mechanical lockout devices or keys prevent intermixing of keyed stems into an unlike color-coded keyed body. No connection can be made between unlike stems and bodies. Thus unwanted fluid mixing cannot occur.

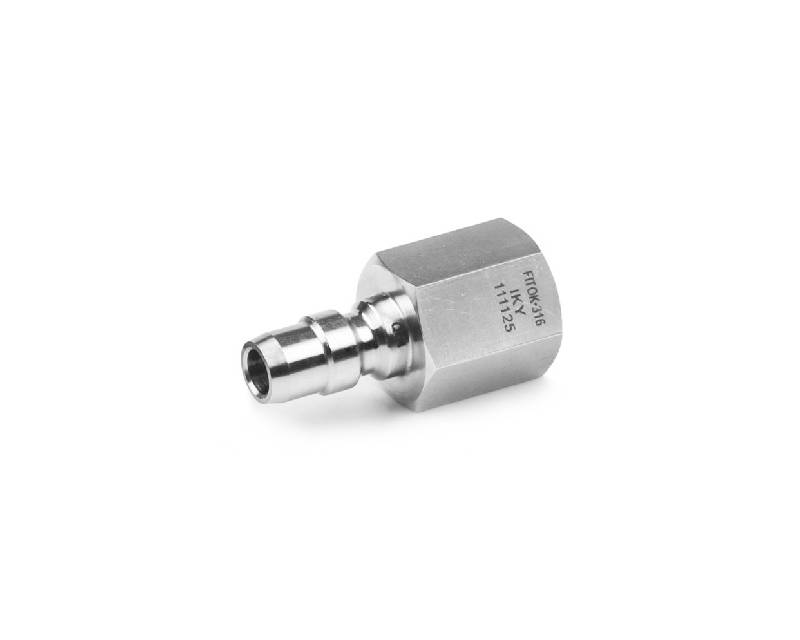

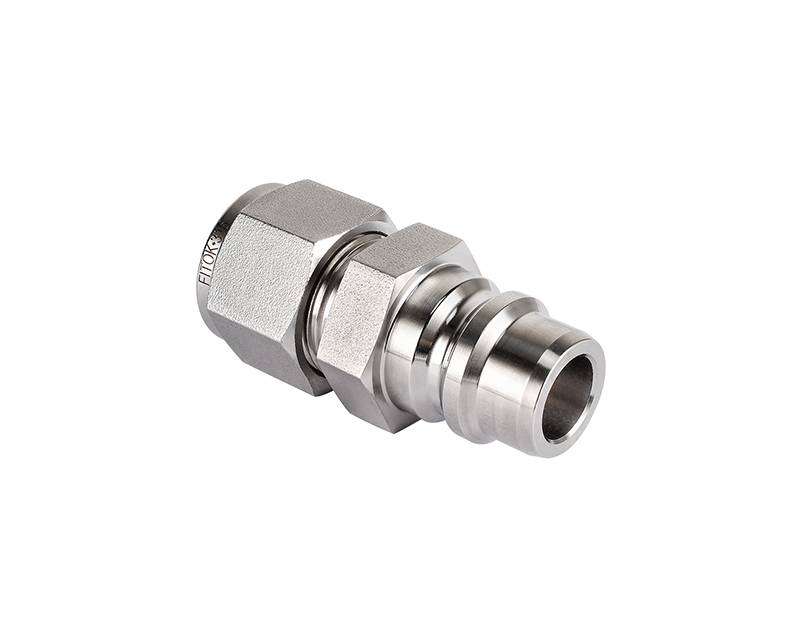

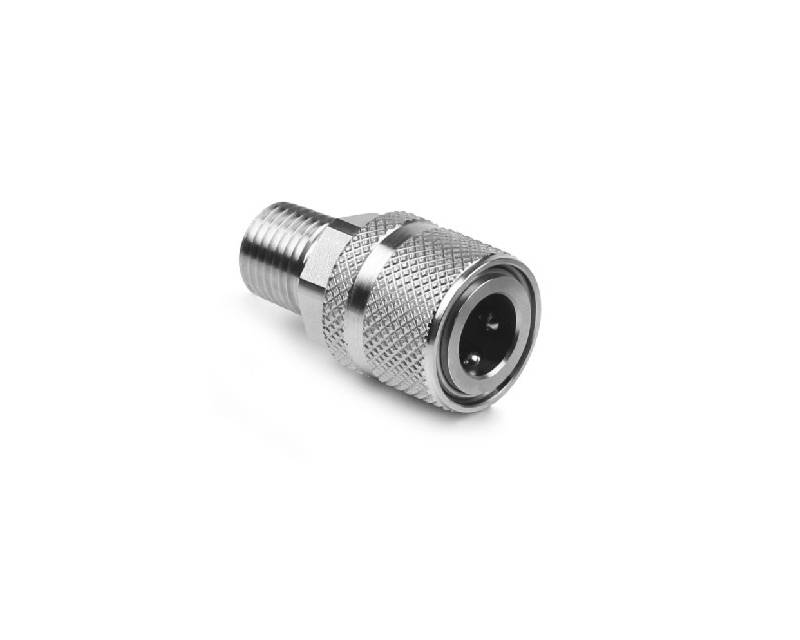

QF Series Full Flow Quick-connect
Features
- Working pressure up to: 6000 psig (414 bar)
- Materials: stainless steel or brass
- Full flow Type
- Working pressure up to: 6000 psig (414 bar)
- Smooth and open holes without valves at both ends to minimize pressure drop and make cleaning easier
- These quick connects have no valve and offer high capacity, straight through flow with no restrictions. They are commonly used on transfer lines or drain and vent systems. They can be used with flexible or rigid tube, pipe or hose

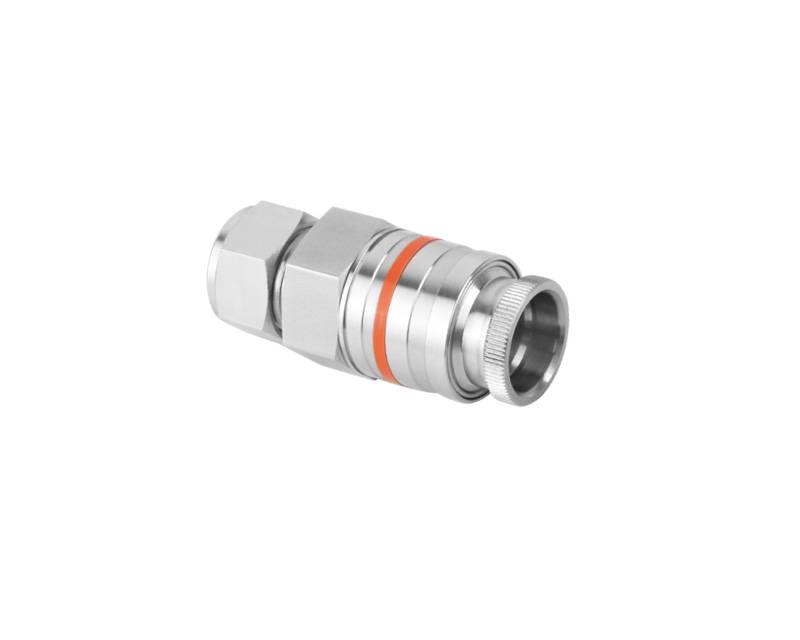

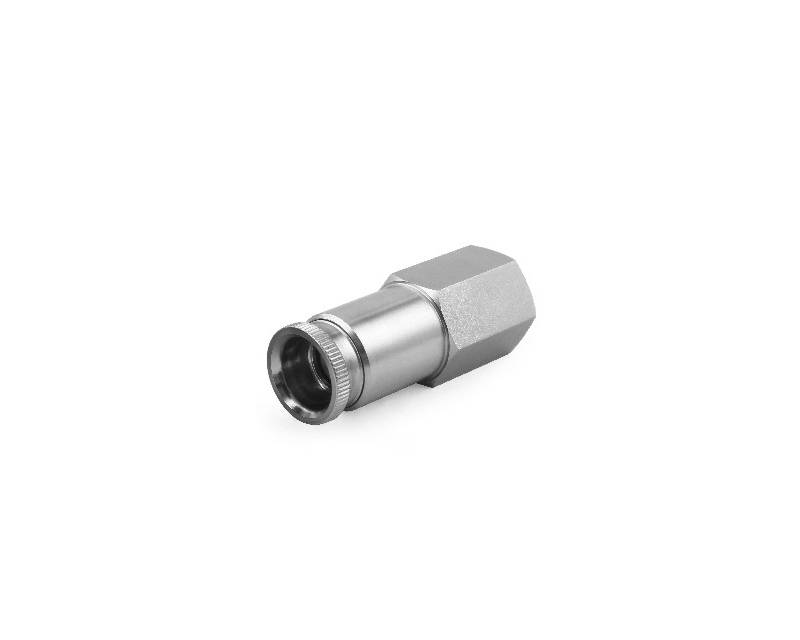

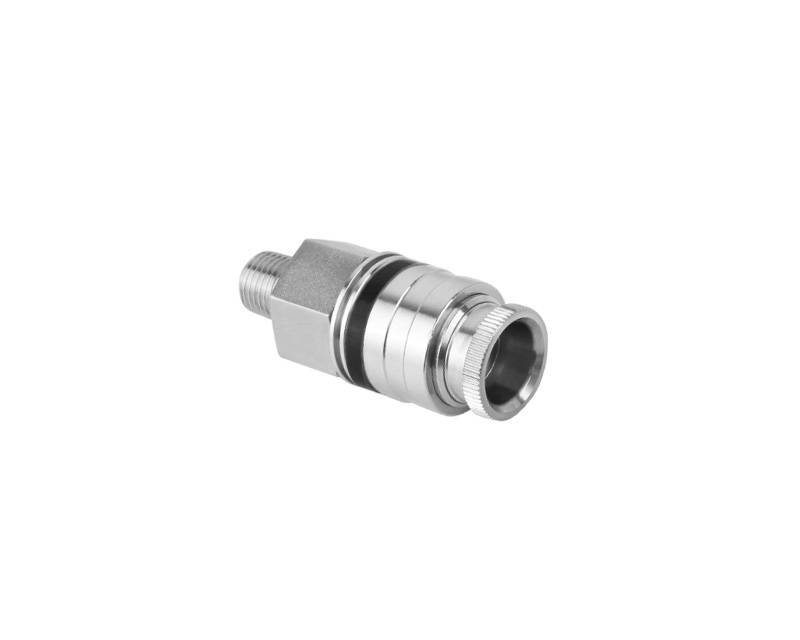

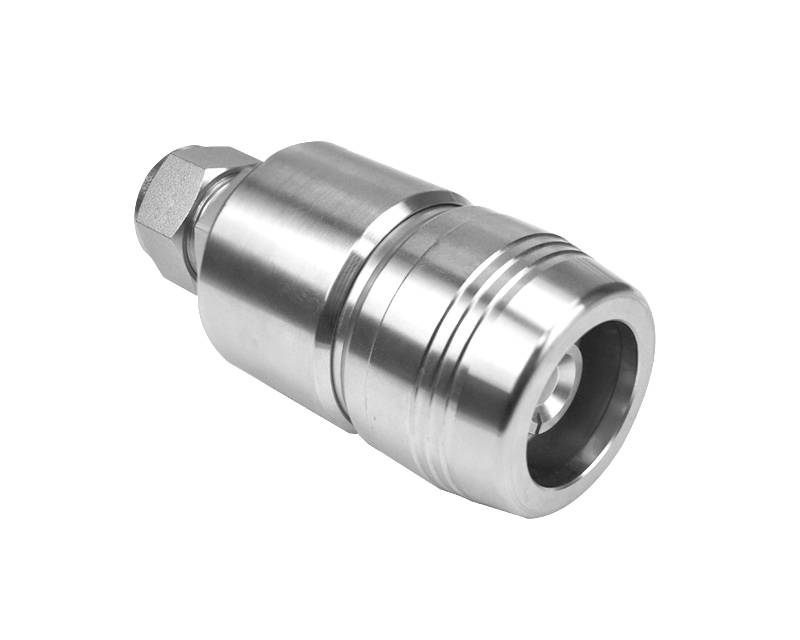

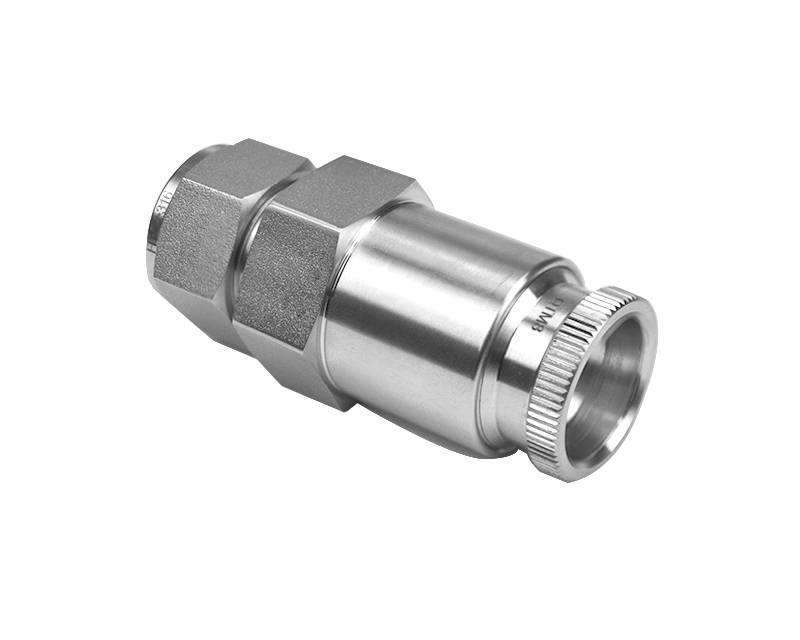

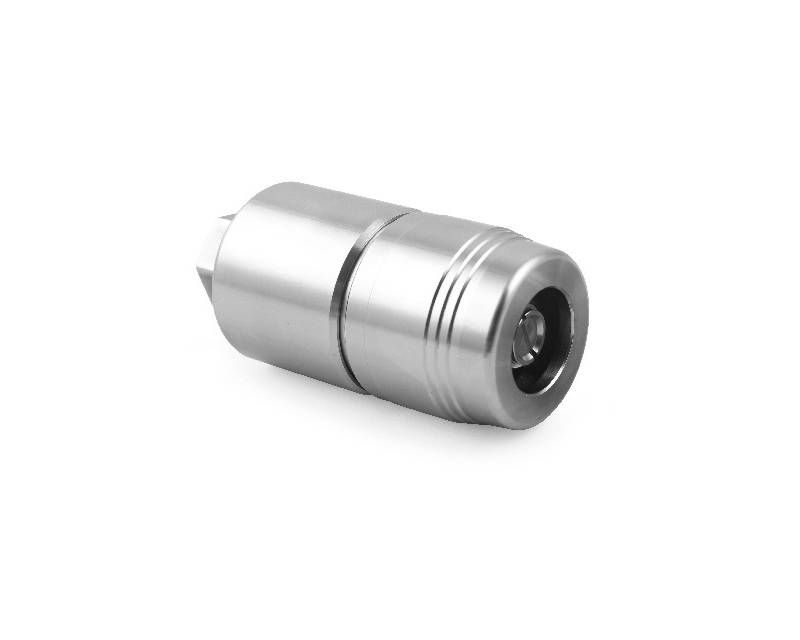

QTM Series Quick-connect
Features
- Working pressure up to: 4500 psig (310 bar)
- Category high pressure Quick Connect
- Special design to reduce air inclusion and spillage
- PTFE sealing to enable applications for diverse media types
- Push to connect design to enable easy operation
- Locking mechanism with large contact area to ensure reliable stem retainment
- Single end shutoff and double end shutoff models are available with the keyed option
- The QTM series has several unique features which make it ideal for use on many fluids which would degrade elastomeric O-ring materials.

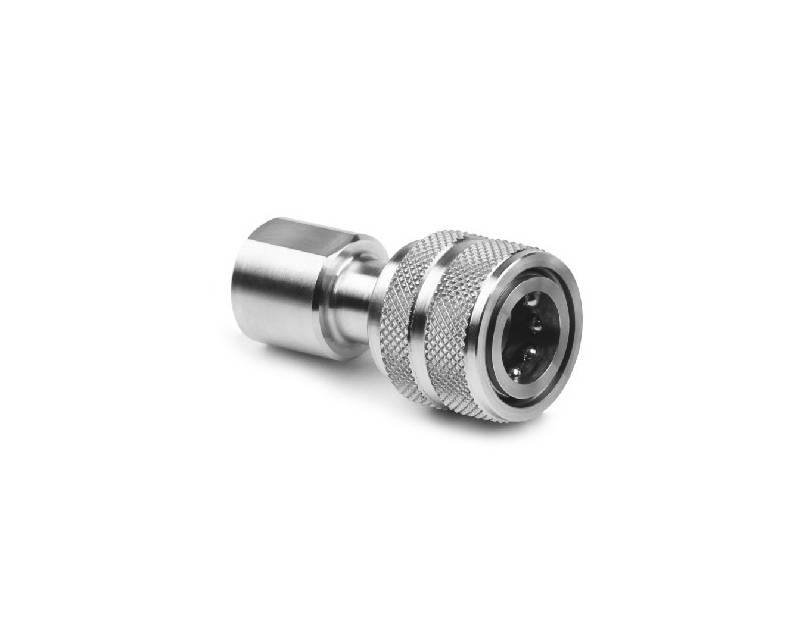

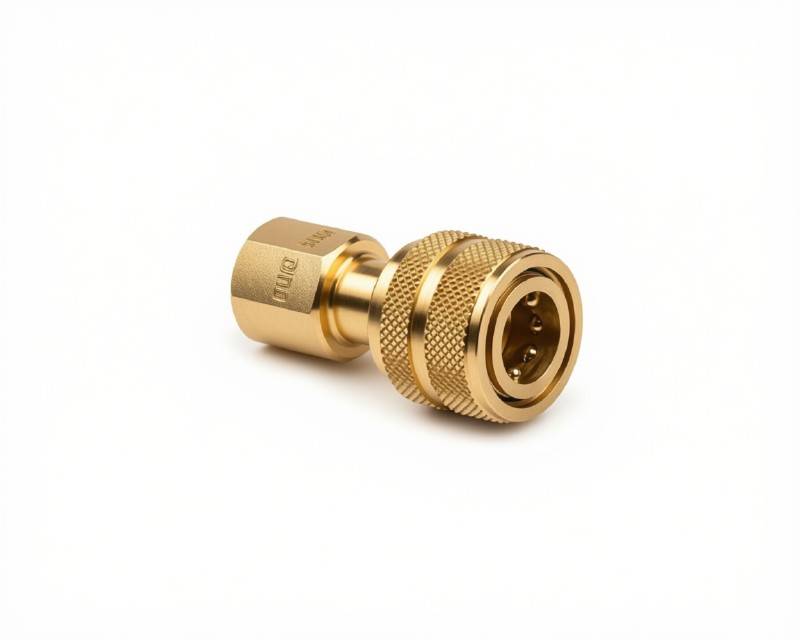

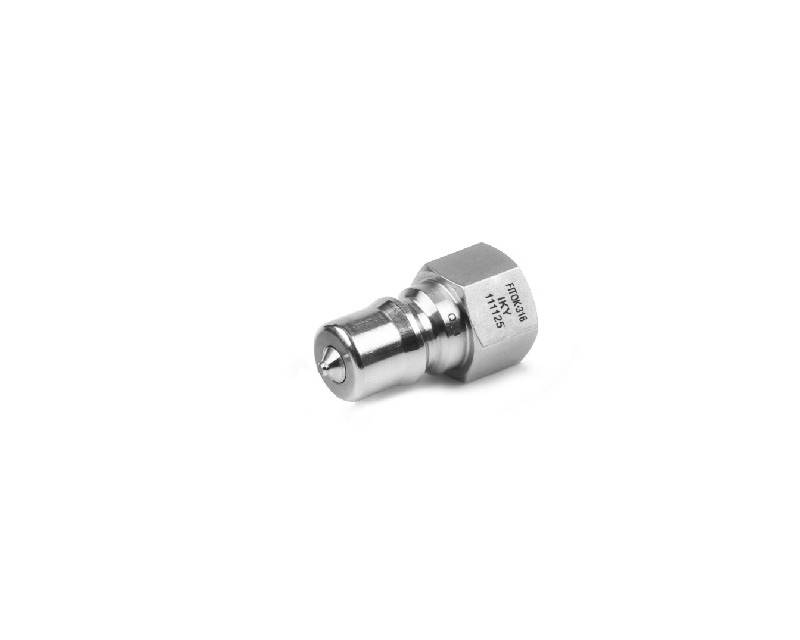

QV High Flow Quick-connect
Features
- Working pressure up to: 2000 psig (137 bar)
- Large flow area to ensure high flow capacity
- Positive valve stop to maintain valve alignment and to provide metal to metal sealing valve stop to ensure that the valves are fully open
- Hardened nipples and sleeves as well as solid bar stock construction to make for a quality coupling, as a result maximum resistance to damage from hydraulic and mechanical shock
- Designed to withstand high pressure with reliable sealing
- Durable ball-locking mechanism to assure reliable connection
QP Series Quick-Connects
Features
- Flat head design to reduce air inclusion or spillage during coupling or uncoupling
- Ball locking design to ensure firm connection and availability for impact and vibrant occasions
- Unique internal structure design to realize maximum flow capacity
- Aluminum alloy and stainless steel with specially treated surface optional to provide excellent corrosion resistance
- Pressure relief valves optional for stems to avoid excessively high circuit pressure and protect the pipeline
- A variety of sealing ring materials optional to offer good compatibility with most fluids and extensive temperature coverage
QCA Series Quick-connect
Features
- Working pressure up to: 232 psig (16 bar)
- Safe operation without accidental disconnection risk
- Safe pressure release design to avoid hose whipping after disconnection
- Large flow path ensures direct air flow to pressure loss ,Improved gas use efficiency for a variety of pneumatic devices
