Rising Plug Valves : NR Series NRG (with gauge port) Series
NR and NRG Series Rising Plug Valves feature a cold-drawn square bar body, supporting pressures up to 6,000 psig (414 bar). A non-rotating stem extends seat life. The straight-through, roddable flow path maximizes flow while minimizing pressure drop. Stem thread lubricant is isolated from system media, while a tapered seat enhances sealing. The seat and stem tip are replaceable, and a PTFE ring in the gland protects the stem thread from contamination. Available in various connection types, sizes, and handle colors.
Rising Plug Valves

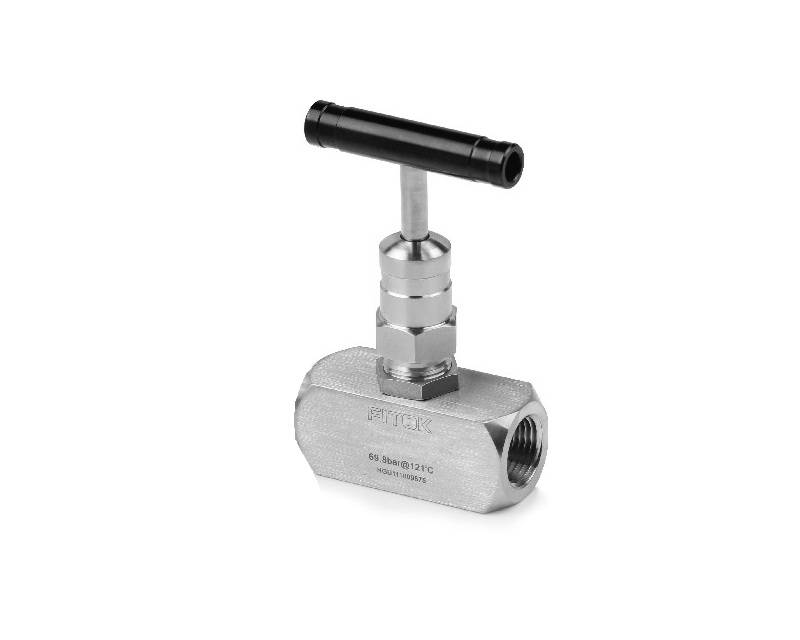

NR Series
NRG (with gauge port) Series
Features
◎ Cold drawn square bar as body material
◎ Nonrotating stem for longer seat life
◎ Roddable, straight through flow path for maximum flow with minimum pressure drop
◎ Stem thread lubricant isolated from system media
◎ Replaceable seat and stem tip design
◎ Stem thread protected from outside contamination by PTFE ring in the gland
◎ Panel mounting available
◎ Handles of different colors available
◎ Every valve leak tested with Nitrogen or compressed air at the maximum allowable working pressure
◎ Working pressure up to:
Stainless steel : 6000 psig (414 bar)
Alloy : 400: 5000 psig (345 bar)
◎ Working temperature with seat:
Acetal : -20°F to 250°F (-28°C to 121°C)
PEEK : -20°F to 450°F (-28°C to 232°C)
◎ Working temperature with O-ring :
Fluorocarbon Rubber (FKM) : -20°F to 400°F (-28°C to 204°C)
Nitrile Butadiene Rubber (NBR) : -20°F to 212°F (-28°C to 100°C)
Ethylene Propylene Diene Rubber (EPDM): -20°F to 300°F (-28°C to 148°C)
When the connection type of valves is FITOK double ferrule tube fitting,the working pressures of the valves are related to the wall thickness of tubing applied. For specific working pressure of the valves.
