Sampling Cylinder Configuration Systems for Liquefied Gases CSF-Series
Sampling Cylinder for Liquefied Gases : CSF Series
Introduction:
Cylinder configuration sampling systems with linkage valves for liquefied gases or high vapor pressure liquids at process pressure.
Features:
◎ For corrosive or hazardous liquefied gases or high vapor pressure liquids

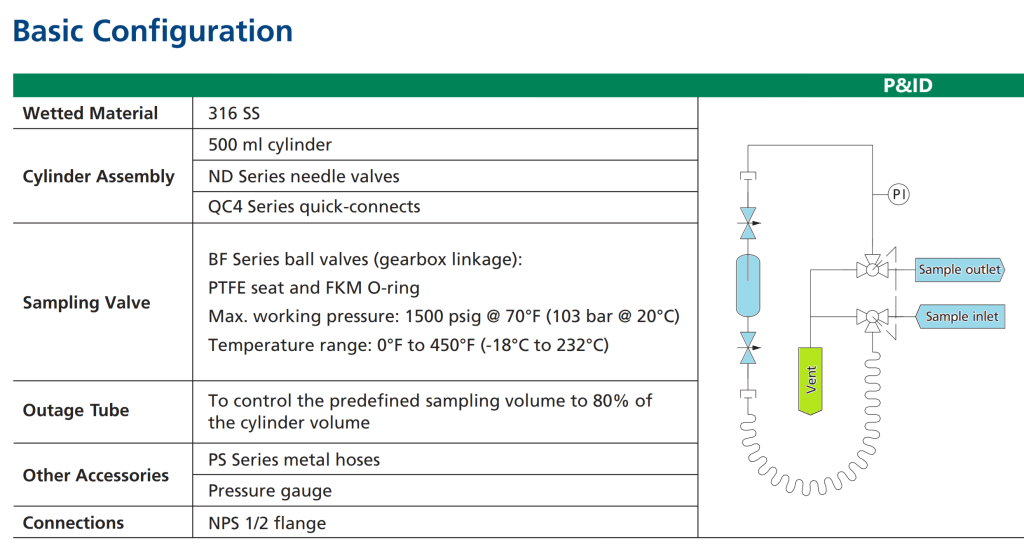

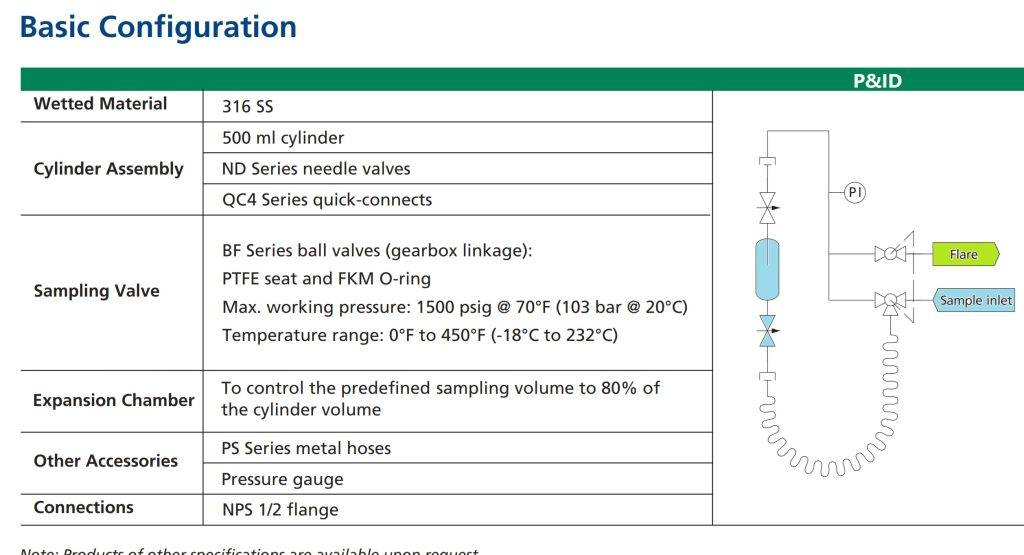

◎ Sampling volume controlled by expansion chamber or outage tube
◎ Double end shut-off quick connection to ensure zero vapor release

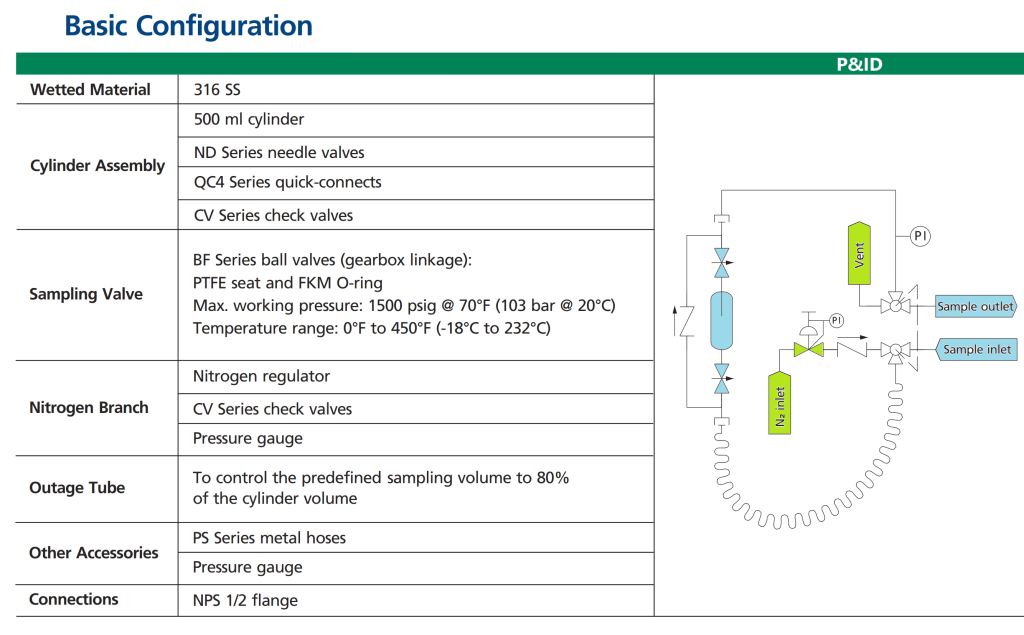

◎ Bypass Nitrogen purge type optional
◎ 7 models available
Cylinder Sampling for Liquefied gas sampling system, system purge, and predefined sampling volume controlled by an expansion chamber, a gearbox is applied controlling two ball valves simultaneous and ensuring sample accuracy and safety for the operator.
CSF2 Expansion Chamber Purge Type :
Liquiefied gas sampling system, system purge, predefined sampling volume controlled by an expansion chamber, an inert gas purges the expansion chamber after sampling, a gearbox is applied controlling two ball valves simultaneous and ensuring sample accuracy and safety for the operator.
Features
◎ sampling cylinder from devices or process lines
◎ System purge and expansion chamber purge
◎ Predefined sampling volume controlled by an expansion chamber to ensure safe sampling
◎ Easy operation with a single handle by linkage valve
