Custom Tube Bending Service Specialized Products

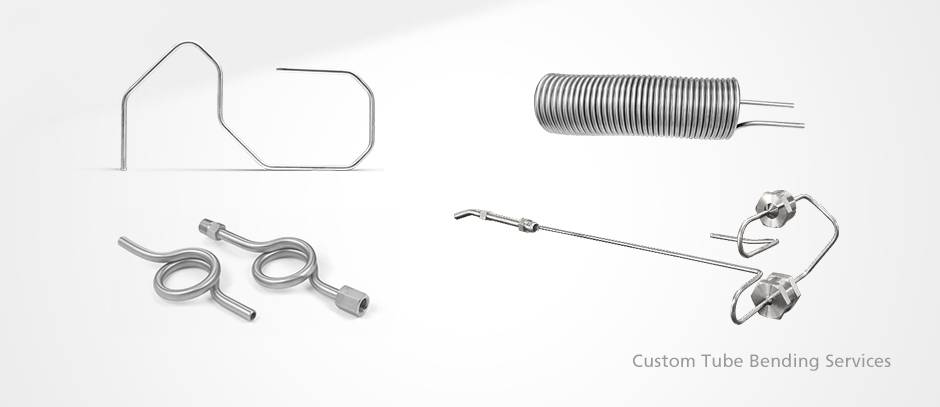

FITOK offers custom bent tubing in various angles and sizes designed and manufactured to customer drawings or technical requirements. Utilizing CNC bending machines, stainless steel tubing is formed in the cold state, suitable for complex piping system layout. Suitable for varied pressure and temperature conditions, FITOK bent tubing ensures high accuracy, superior sealing, and improved installation efficiency across a wide range of industrial applications.
Benefits of Custom Tube Bending
Custom tube bending is a specialized process that shapes metal tubes into specific configurations using external forces, allowing them to meet various design and functional requirements. Custom tube bending has the following advantages over traditional straight tubes that require additional connectors or fittings:
1. Reduce the risk of leakage
Each weld or joint in the fluid piping system adds complexity and potential points of failure. By eliminating additional welding, joints, and fittings that are required with straight tubes, custom tube bending services reduce the risk of leakage and mechanical failure, which is especially useful in tight spaces or intricate layouts.
2. Reduce on-site installation time
Compared to traditional threaded or welded pipe systems, custom tube bending services provide components that can be seamlessly integrated into the overall structure. By eliminating the need for multiple steps, such as cutting, welding, and assembling separate pieces, custom bending drastically reduces the time of modification and adjustments required for on-site installation.
3. Meet complex design requirements
Custom tube bending services could meet intricate and unique design requirements by allowing for bends that conform to highly specific shapes and angles. This flexibility could help customers optimize space utilization and improve functionality. The complex geometries could also open up new possibilities for innovative product development.
Therefore, custom tube bending, with the complex designs, easy installation, and excellent sealing performance, can provide efficient and reliable tube connection solutions for customers in various industries, especially in the fields of automobile manufacturing, aerospace, electric power, and chemical engineering.
Why Choose FITOK for Custom Tube Bending?
FITOK offers custom bent tubing in various angles and sizes designed and manufactured to customer drawings or technical requirements. Utilizing CNC bending machines, stainless steel tubing is form in the cold state, suitable for complex piping system layout. Suitable for variation pressure and temperature conditions, FITOK bent tubing ensures high accuracy, superior sealing, and improve installation efficiency across a wide range of industrial applications.
FITOK stands out by the following superiority:

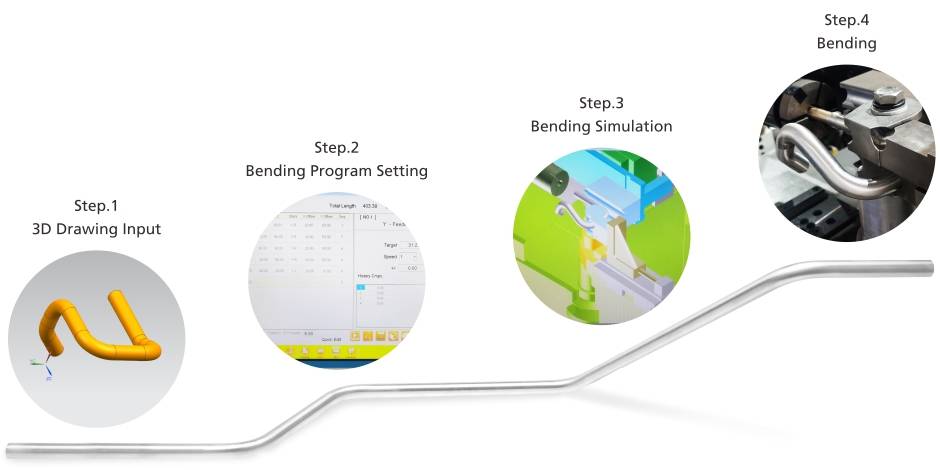

1. Automated bending machines ensure efficient production and excellent consistency.
FITOK uses automated bending machines with 3D simulation functionality. A bending simulation demonstration will be complete before mass production by inputting 3D drawing and setting up bending programs. In this bending simulation demonstration, potential interference between tubing and machines will be detect and the early warning alert will be issue. Advanced automatic tube bending CNC machine can also precisely control the angle and radii of each bending point to ensure high quality and consistency of products.

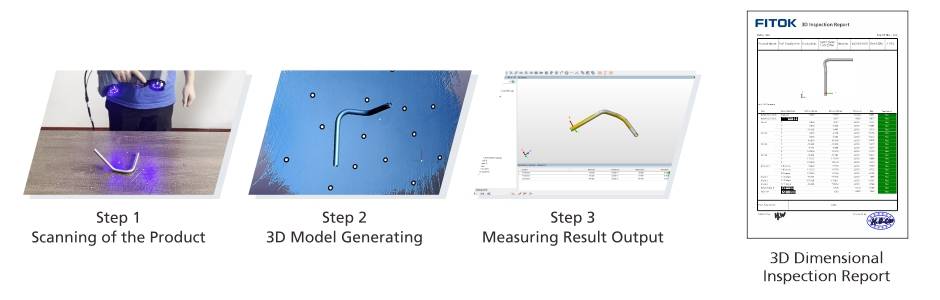

2. High accuracy measuring machines ensure product quality.
3D dimensional inspection devices, parameters such as profile, position, angle, roundness, cylindricity, verticality, length and bend radius can be measured. Measurement accuracy reaches 0.02 mm, with certified metrological grade accuracy. Measurement speed reaches 2.1 million measurements per second, report can be generated automatically.

3. High quality, comprehensive range and fast delivery
FITOK has extensive experience of tubing manufacturing and maintains more than 500,000 meters of tubing in stock for fast delivery. FITOK can offer instrumentation tube bending, high purity tube bending, media and high pressure tube bending in a variety of materials and sizes.

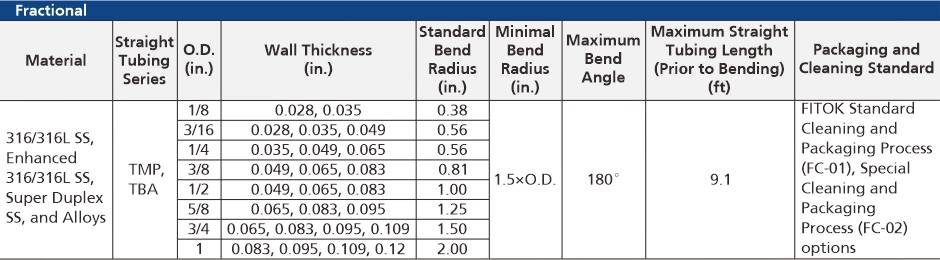

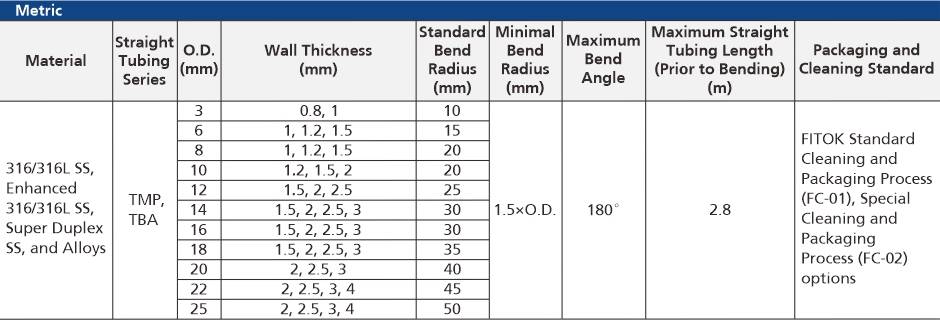

Instrumentation and High Purity Tube Bending


Medium and High Pressure Tube Bending


Besides, FITOK could offer other value-added tube bending services including:

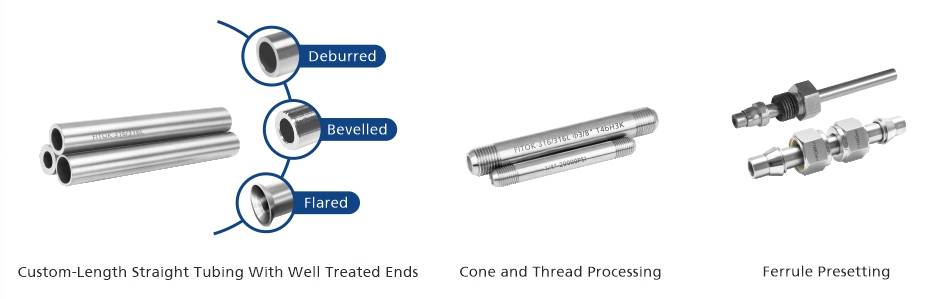

- Custom length straight tubing
- Tube end processing services: deburring, beveling, flaring, etc.
- Cone and thread processing
- Ferrule presetting

- Please refer to Custom Tube Bending Catalog for more information. If you have any questions, please leave a message online, and we will get back to you as soon as possible!
