General Tied Diaphragm Regulators
RSGC Series
Introduction
RSGC Series General Tied Diaphragm Regulators feature a single-stage pressure reduction design. The tied diaphragm construction provides positive shutoff. The poppet spring design improves flow characteristics, making these regulators suitable for low flow, high purity, and ultra high purity applications.
Features RSGC Series General Tied Diaphragm Regulators
◎ Lightweight, compact design
◎ Metal-to-metal seal between valve body and diaphragm ensures reliable sealing performance
◎ Reinforced diaphragm improves sealing performance and extends service life
◎ Lift poppet and diaphragm are made of Alloy 22, offering excellent corrosion resistance
◎ Tied diaphragm construction offers positive shutoff for added safety
◎ Bonnet with a captured vent port allows media to be vented to a designated location in the event of diaphragm rupture
|
Port Size |
1/4″, 3/8″ or 1/2″ |
|
|
Max. Working Pressure |
2300 psig (159 bar) |
|
|
Outlet Pressure Range |
0 ~ 30 psig (0 ~ 2.1 bar)
|
|
|
|
0 ~ 60 psig (0 ~ 4.2 bar)
|
|
|
|
0 ~ 100 psig (0 ~ 6.9 bar)
|
|
|
Flow Coefficient (Cv) |
1.8 |
|
|
Working Temperature |
PCTFE : -40 ~ 165 °F (-40 ~ 74 °C) |
|
|
|
Polyimide ：-40 ~ 165 °F (-40 ~ 74 °C) |
|
|
SPE (Supply Pressure Effect) |
3.0 psig per 100 psig source pressure change |

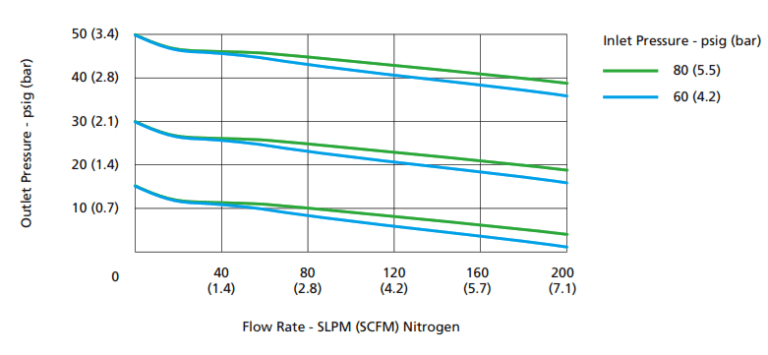

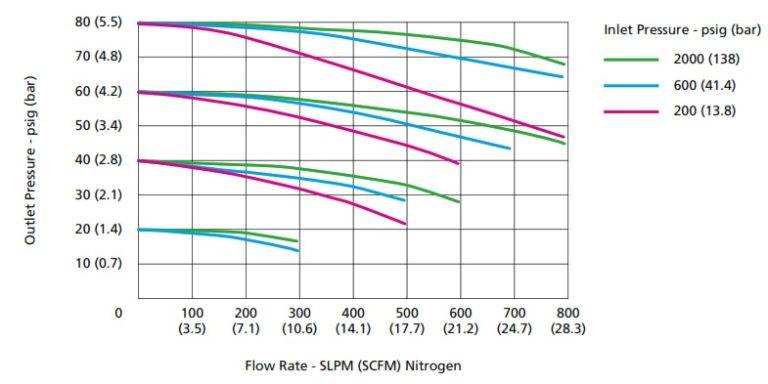

Flow Data
Process Specification Sensitive Diaphragm Regulators
| Process Specification | Special Cleaning and Packaging Process (FC-02) | Ultra High Purity Process (FC-03) |
|---|---|---|
|
Material
|
316L SS
|
316L SS, 316L SS VAR |
|
Wetted Surface Roughness |
Ra 10 µin. (0.25 µm) |
Ra 5 µin. (0.13 µm) |
|
Polishing Process |
Machine Finished |
Electropolished |
|
Assembly Environment |
In specially cleaned areas |
ISO Class 4 (FS 209E Class 10 equivalent) cleanroom
|
|
Packaging |
Double bagged |
Double bagged in cleanroom |

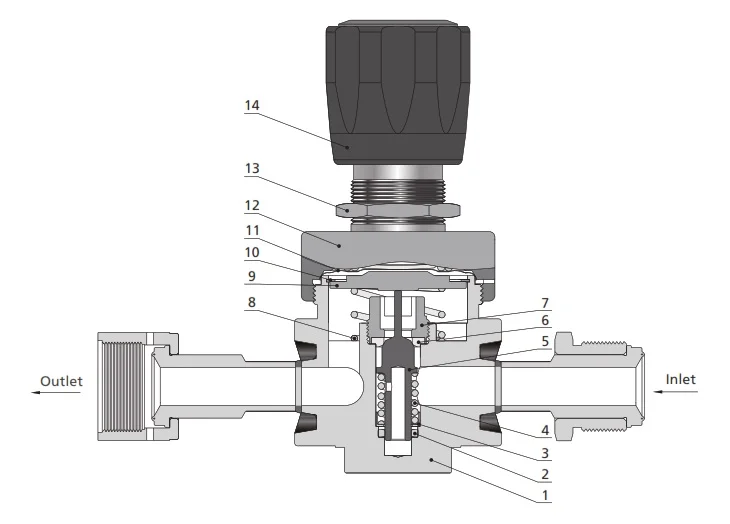

Major Materials of Construction Diaphragm Regulators High Flow RDGN Series
| Item | Component | Material/Specification |
|---|---|---|
|
1 |
Knob Handle |
ABS |
|
2 |
Bonnet
|
304 SS |
|
3 |
Bonnet Nut |
304 SS |
|
4 |
Diaphragm |
Alloy 22/ASTM B575 |
|
5 |
Seat Retainer |
Alloy 22/ASTM B574 |
|
6 |
Seat |
PCTFE/ASTM D1430 or Polyimide |
|
7 |
Lift Poppet
|
Alloy 22/ASTM B574 |
|
8 |
Poppet Spring |
Alloy X-750 |
|
9 |
Gasket |
Alloy 22/ASTM B574 |
|
10 |
Body |
316L SS Outlet / 316L SS VAR |

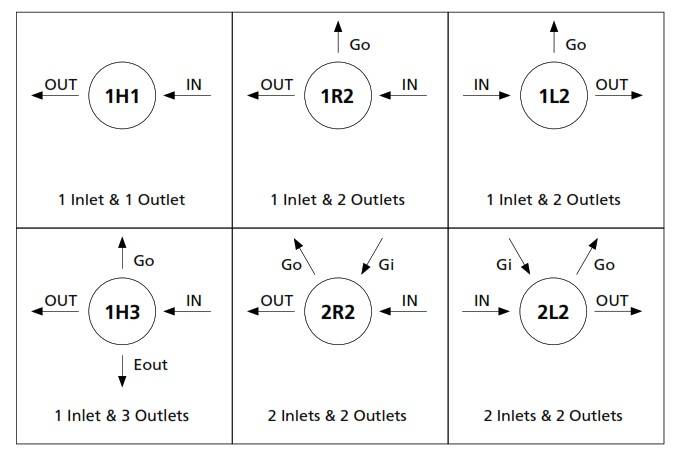

Porting Configuration Symbol
Porting Configuration Symbol
Notes:
1. IN and OUT are the inlet and outlet ports for connecting the valve to the system. so that other Port should not be used for system connections.
2. Porting configuration is viewed from the top.
