Line Pressure Regulator

FLR-1 Series Compact Diaphragm Regulators
Similar to FCR-1 Series Regulators with larger orifice to provide higher flow capacity
Three port configurations available
316L SS body for corrosive or toxic gases
FLR-2 Series Piston Regulators
Applicable to non-corrosive gases or low-viscosity liquids
Easy to assemble and disassemble, convenient replacement
of springs with different output ranges
FLR-3 Series Medium Flow Diaphragm Regulators
For high inlet pressure applications
Balanced poppet
FLR-5 Series High Flow Diaphragm Regulators
Suitable for low pressure and high flow applications
Large diameter convoluted diaphragm to increase pressure sensitivity

FBR-1 Series Miniature Piston Regulators
Applicable to non-corrosive gases or low-viscosity liquids
Easy to assemble and disassemble, convenient replacement
High Pressure Regulators
HPR-10 Series High Pressure Piston Regulators
316 Stainless steel or brass body optional
Robust piston sensed design
Line Pressure Regulators
HPL-06 Series High Pressure High Flow Regulators
For high pressure and high flow applications
Large piston sensor gives excellent sensitivity

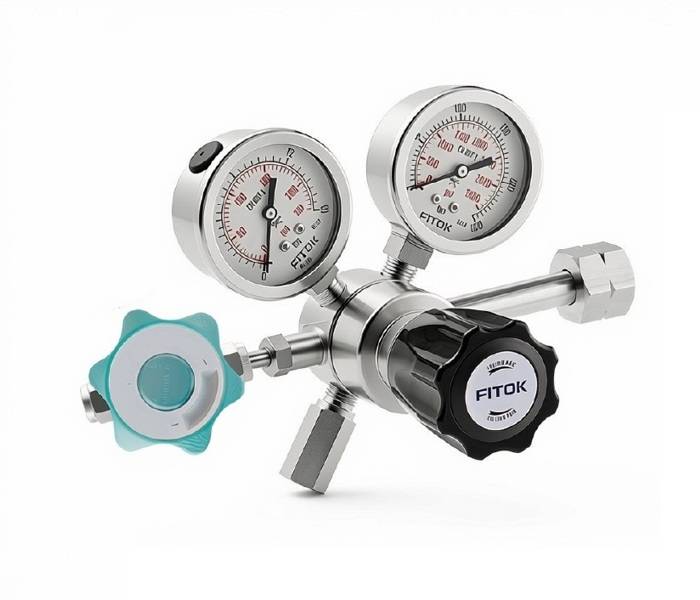

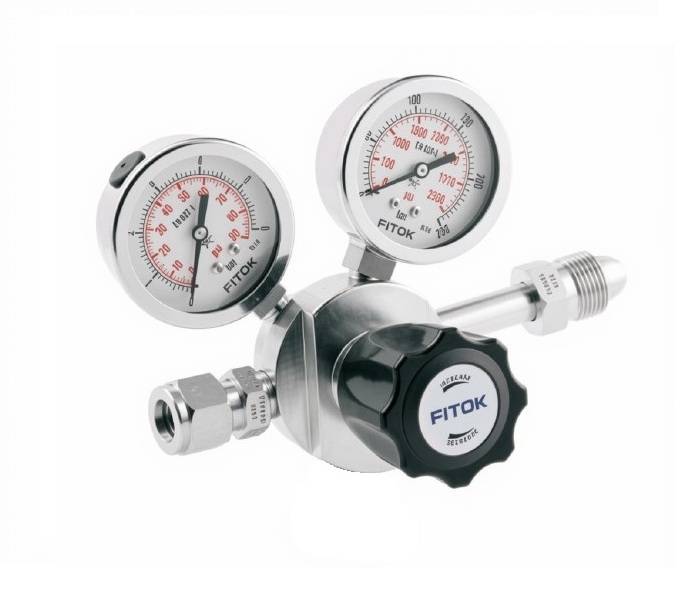

Cylinder Pressure Regulator

FCR-1 Series General Diaphragm Regulators
Metal-to-metal seal to minimize external leak
Convoluted diaphragm design to improve regulation precision and cycle life
FCR-1S Series Sensitive Diaphragm Regulators
Large diameter convoluted diaphragm to increase pressure
sensitivity and minimize pressure drop
Metal-to-metal seal
316L SS and Nickel-plated Brass available for valve body,
Nickel-plated Brass for bonnet
FCR-1S Series Sensitive Diaphragm Regulators
Large diameter convoluted diaphragm to increase pressure
sensitivity and minimize pressure drop
Metal-to-metal seal
316L SS and Nickel-plated Brass available for valve body,
Nickel-plated Brass for bonnet

FCR-2 Series High Pressure Piston Regulators
For high pressure applications
Robust piston-sensed design to ensure safety and reliability
316L SS or Nickel-plated Brass body optional
For non-corrosive gases (due to seal limit)
FCR-1D Series Dual-stage Diaphragm Regulators
Compact design
to provide
Dual-stage pressure reducing construction
accurate and stable pressure
20 ┬Ám filter installed at inlet
With special cleaning and packaging, applicable to

Back Pressure Regulator

BPR-3 Series Back Pressure Piston Regulators
Control of back-pressure up to 10000 psig for gas or liquid application
Safe and reliable piston sensing
7 pressure control ranges
Panel mounting available
Special cleaning and packaging available for application in oxygen-enriched environments

BPR-3 Series Back Pressure Piston Regulators
Control of back-pressure up to 10000 psig for gas or liquid application
Safe and reliable piston sensing
7 pressure control ranges
Panel mounting available
Special cleaning and packaging available for application in oxygen-enriched environments

BPR-1 Series Back Pressure Diaphragm Regulators
Metal-to-metal seal with convoluted diaphragm
Close pressure differential between crack and reseat
Panel mounting available
BPR-2 Series Back Pressure Piston Regulators
Technical Data
Durable piston-sensed design
Bubble-tight shutoff at all reseating pressure
Low operating torque
Panel mounting available
With special cleaning and packaging, applicable to oxygen-enriched environments
