Others Tools for General Instrumentation

Manual Presetting Tool (MPT)

MPT Series Manual Presetting Tools, used with a bench vise, enable ferrule presetting onto tubing in confined or challenging workspaces, allowing final installation in wider and safer work conditions. High grade alloy is used for clamp to make the presetting tool reliable and durable. Suitable for presetting carbon steel, stainless steel, and alloy steel tube fittings in sizes 1/4″ to 1″ and 6 mm to 25 mm.

  • For tube fitting installations in close quarters, the presetting tool can make installation easier and more reliable when paired with the table vice.
  • For installing 1/4″ to 1″ and 6 mm to 25 mm carbon steel, stainless steel and alloy steel tube fittings High grade alloy used for clamp to make the presetting tool reliable and durable

Gap Inspection Gauges, GIG Series

GIG Series Gap Inspection Gauges ensure proper tightening of 6D series tube fittings by installers or inspectors, providing simple and consistent operation. Compatible with all metal tube fittings in sizes ranging from 1/16″ to 1″ and 2 mm to 25 mm.

  • On initial installation, the FITOK gap inspection gauge assures the installer or inspector that a fitting has been sufficiently tightened.
  • For all metal fittings, sizes from 1/16″ to 1″ and 2 mm to 25 mm Simple and consistent operation

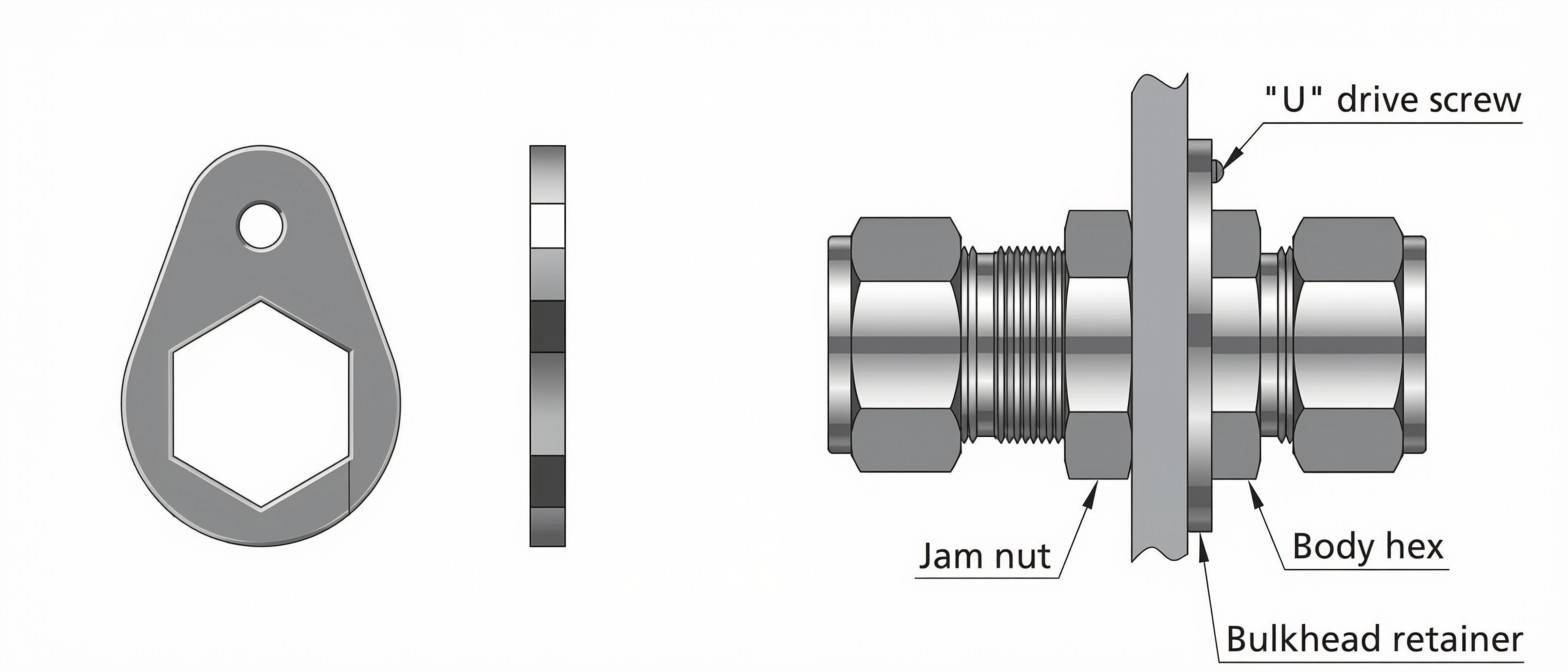

Bulkhead Retainers, BR Series

BR Series Bulkhead Retainers serve as a backup wrench, enabling operators to tighten lock nuts during initial bulkhead fitting installations. A single operator can connect tubing to both sides of a panel using just one wrench.

Hydraulic Presetting Tools, HPT Series

HPT Series Hydraulic Presetting Tools enable easy ferrule presetting onto tubing, reducing assembly and installation time and operator error. Flexible hose connection between the pump and jig assures easy and comfortable operation. Manually operated hydraulic pump does not require power or compressed air. Fit neatly in a rugged plastic carrying case. For presetting carbon steel, stainless steel, and alloy steel tube fittings in sizes 1/2″ to 2″ and 12 mm to 50 mm.

  • To preset ferrules onto tubing
  • For installing to 2″ and 12 mm to 50 mm carbon steel, stainless steel, and alloy steel tube fittings
  • Manually operated hydraulic pump, without requirement for power or compressed air

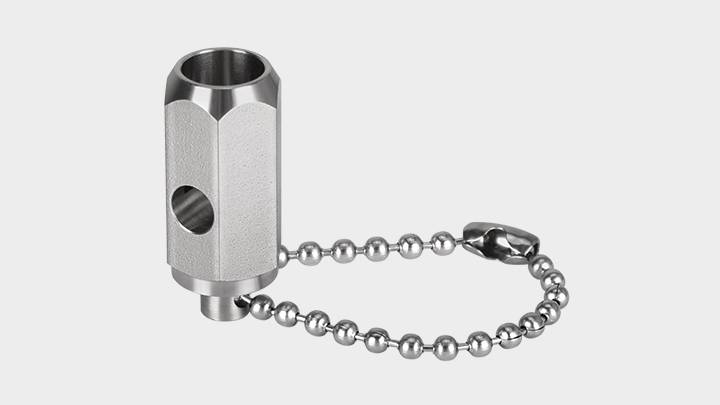

Depth Marking Tools, DMT Series

DMT Series Depth Marking Tools ensure the tubing is against the bottom of the fitting body, preventing shallow installations. For tubing sized 1/4″ to 1″ and 6 mm to 25 mm.

PTFE Thread Seal Tape

FITOK PTFE thread seal tape delivers exceptional sealing performance and outstanding chemical stability, making it the ideal choice for a wide range of threaded connection applications. The material complies with commercial item description A-A-58092 and has a maximum working temperature of 232°C (450°F). Compared with common sealing tapes available on the market, FITOK PTFE thread seal tape features a thicker design, wrapping only two revolutions to meet sealing requirements.

FITOK PTFE thread seal tape delivers exceptional sealing performance and outstanding chemical stability, making it the ideal choice for a wide range of threaded connection applications. The material complies with commercial item description A-A-58092 and has a maximum working temperature of 232°C (450°F). Compared with common sealing tapes available on the market, FITOK PTFE thread seal tape features a thicker design, wrapping only two revolutions to meet sealing requirements.

Features

  • Compliant with Commercial Item Description A-A-58092
  • Elongation Rate ≥ 50%, in accordance with ASTM D-882
  • Specific Gravity ≥ 1.2, in accordance with ASTM D-792
  • Polytetrafluoroethylene (PTFE) Content ≥ 99%
  • Working temperature up to 450°F (232°C)
  • Designed tape thickness for wrapping two revolutions
Tape Width Tape Length Applicable Tapered Pipe Thread Size Ordering Number Quantity per Package

1/4 in.
(6.35 mm)

520 in.
(13.20 m)

1/8 , 1/4 and 3/8

PTS-4

PTS-4T

1

10

1/2 in.
(12.70 mm)

520 in.
(13.20 m)

1/2 and larger

PTS-8

PTS-8T

1

10
