Home > Products Categories > Tooling > Others Tooling For General Instrumentation > View Product
Manual Presetting Tool(MPT), Gap Inspection Gauges(GIG), Bulkhead Retainers(BR), Hydraulic Presetting Tools(HPT)
| Part Number | Category | Sub Category | Description | Image |
|---|---|---|---|---|
| GIG-6 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 3/8" metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |
| GIG-8 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 1/2" and 12mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |
| GIG-10M | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 10mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |
| GIG-12 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 3/4" and 18mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |
| GIG-16 | Tools | Gap Inspection Gauge | Gap Inspection Gauge, for checking 1" and 25mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |
| GIG-468 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 1/4", 3/8", 1/2" and 6mm, 12mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |
| GIG-48 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 1/4", 1/2" and 6mm, 8mm, 10mm, 12mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |

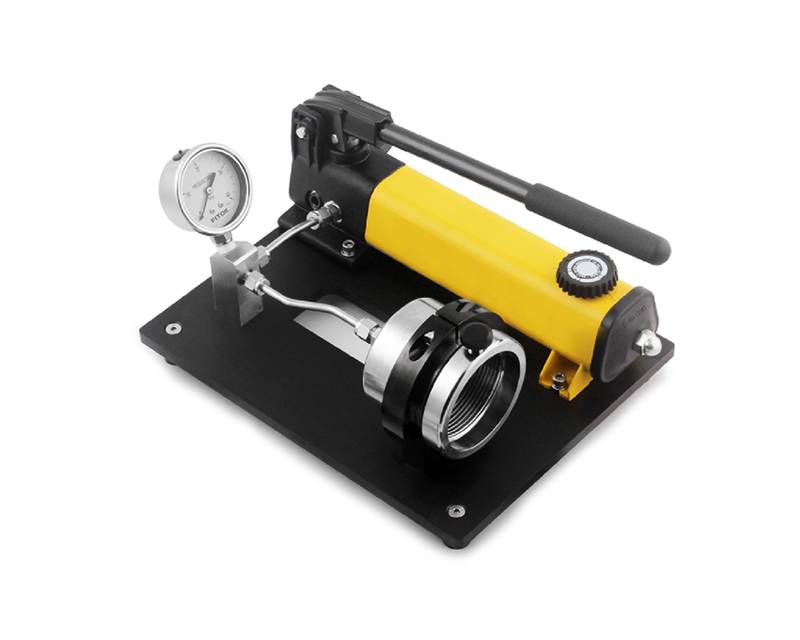

| HPT-03 | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool Die Heads, include HPT-03M and HPT-03F | IMAGE |
| HPT-03-1 | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tools | IMAGE |
| HPT-03C | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool, Exclusive of die heads, please select the die heads you need from HPT-03 MF series die heads | IMAGE |
| HPT-03F | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool, for presetting 1/2", 5/8", 3/4", 7/8", 1" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| HPT-03M | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool, for presetting 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| HPT-03MF | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool Die Heads, include HPT-03M and HPT-03F, For carbon steel, stainless steel,and alloy steel tube fittings | IMAGE |
| HPT-05 | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool Die Heads, include HPT-05M and HPT-05F | IMAGE |
| HPT-05-1 | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tools | IMAGE |
| HPT-05C | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool, Exclusive of die heads, please select the die heads you need from HPT-05MF series die heads | IMAGE |
| HPT-05F | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool, for presetting 1-1/4", 1-1/2", 2" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| HPT-05M | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool, for presetting 28 mm, 30 mm, 32 mm, 38 mm, 50 mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| HPT-05MF | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tool Die Heads, include HPT-05M and HPT-05F | IMAGE |
| HPT-DF | Tools | Hydraulic Presetting Tools | Hydraulic Presetting Tools, for use with DFF8, DFF9, DFF12&DFF16 heads, all 4 heads included. | IMAGE |
| HPT-DHF | Tools | Hydraulic Presetting Tools | Hydraulic presetting tools, with full set of die heads | IMAGE |

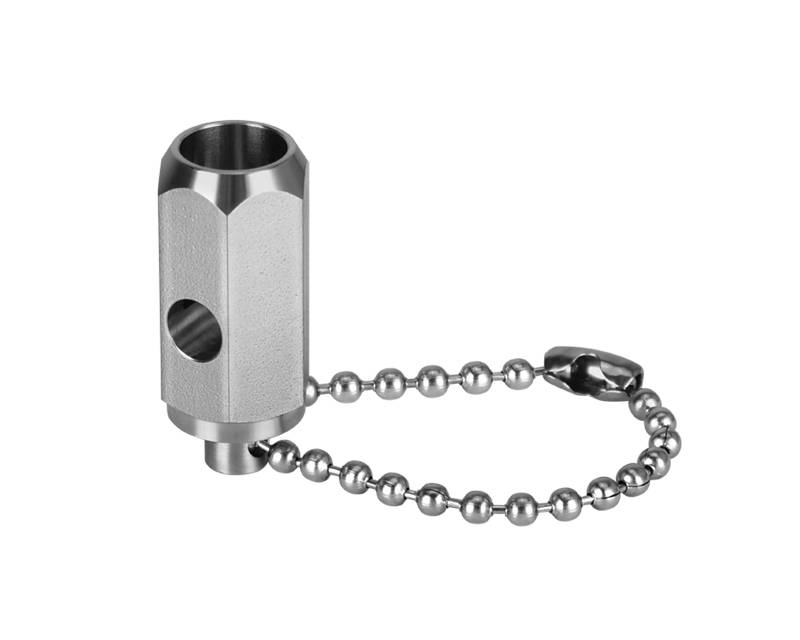

| DMT-10M | Tools | Depth Marking Tool | Depth Marking Tool, 10mm Tube Fitting | IMAGE |
| DMT-12M | Tools | Depth Marking Tool | Depth Marking Tool, 12mm tube fitting | IMAGE |
| DMT-18M | Tools | Depth Marking Tool | Depth marking tool for 18mm pipe outer diameter. | IMAGE |
| DMT-4 | Tools | Depth Marking Tool | Depth Marking Tool, 1/4" Tube OD | IMAGE |
| DMT-6 | Tools | Depth Marking Tool | Depth Marking Tool, 3/8" Tube OD | IMAGE |
| DMT-6M | Tools | Depth Marking Tool | Depth Marking Tool, 6mm Tube Fitting | IMAGE |
| DMT-8 | Tools | Depth Marking Tool | Depth Marking Tool, 1/2" Tube OD | IMAGE |
| DMT-8M | Tools | Depth Marking Tool | Depth Marking Tool, 8mm Tube Fitting | IMAGE |

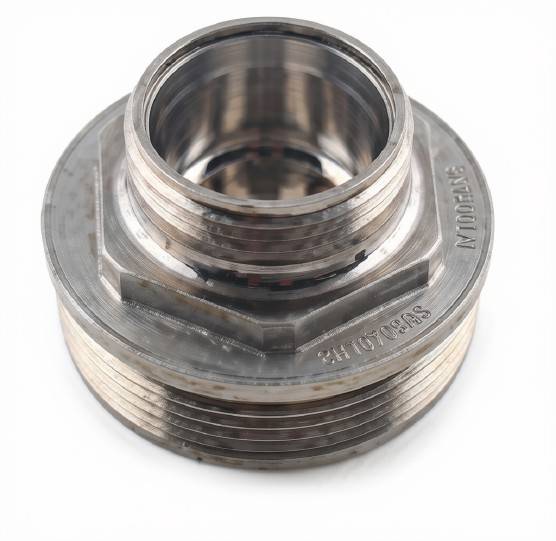

| HPT-FL10 | Tools | Die Head | Die Heads for HPT-03MF Series, Tube O.D. 5/8" | IMAGE |
| HPT-FL12 | Tools | Die Head | Die Heads for HPT-03MF Series, For Tube O.D. 3/4" | IMAGE |
| HPT-FL14 | Tools | Die Head | Die Heads for HPT-03MF Series, Tube O.D. 7/8" | IMAGE |
| HPT-FL16 | Tools | Die Head | Die Heads for HPT-03MF Series, For Tube O.D. 1" | IMAGE |
| HPT-FL20 | Tools | Die Head | Die Heads for HPT-05MF Series, Tube O.D. 1 1/4" | IMAGE |
| HPT-FL24 | Tools | Die Head | Die Heads for HPT-05MF Series, Tube O.D. 1 1/2" | IMAGE |
| HPT-FL32 | Tools | Die Head | Die Heads for HPT-05MF Series, Tube O.D. 2" | IMAGE |

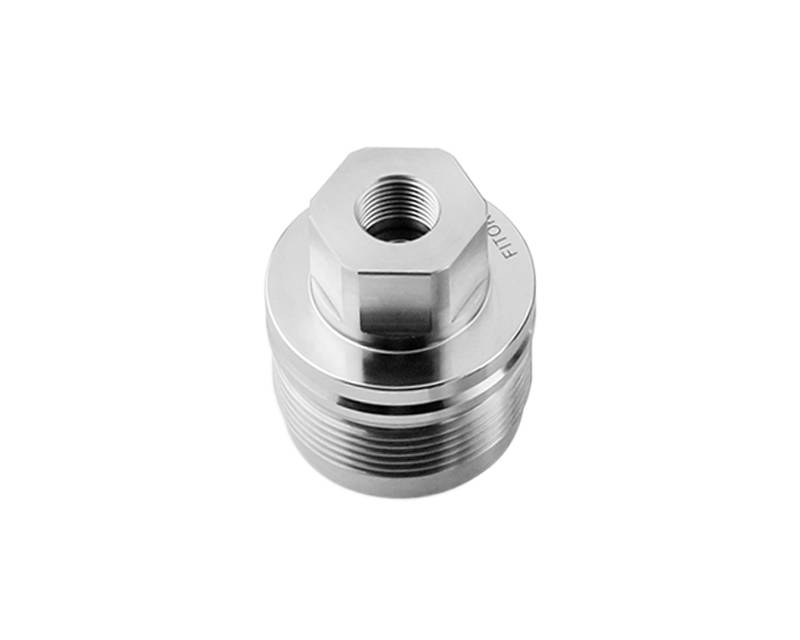

| HPT-FL4 | Tools | Die Head | Die Heads For Hydraulic Presetting Tools, Tube O.D. 1/4" | IMAGE |
| HPT-FL6 | Tools | Die Head | Die Heads For Hydraulic Presetting Tools, Tube O.D. 3/6" | IMAGE |
| HPT-FL8 | Tools | Die Head | Die Heads for HPT-03MF Series, Tube O.D. 1/2" | IMAGE |
| HPT-ML10 | Tools | Die Head | Die Heads For Hydraulic Presetting Tools, Tube O.D. 10mm | IMAGE |
| HPT-ML12 | Tools | Die Head | Die Heads for HPT-03MF Series, Tube O.D. 12mm | IMAGE |
| HPT-ML12-B240830 | Tools | Die Head | Die Heads for 12mm tube fittings. | IMAGE |
| HPT-ML14 | Tools | Die Head | Die Heads for HPT-03MF Series, Tube O.D. 14mm | IMAGE |
| HPT-ML15 | Tools | Die Head | Die Heads for HPT-03MF Series, Tube O.D. 15mm | IMAGE |
| HPT-ML16 | Tools | Die Head | Die Heads for HPT-03MF Series, Tube O.D. 16mm | IMAGE |
| HPT-ML16-B240830 | Tools | Die Head | Die Heads for 16mm tube fittings | IMAGE |

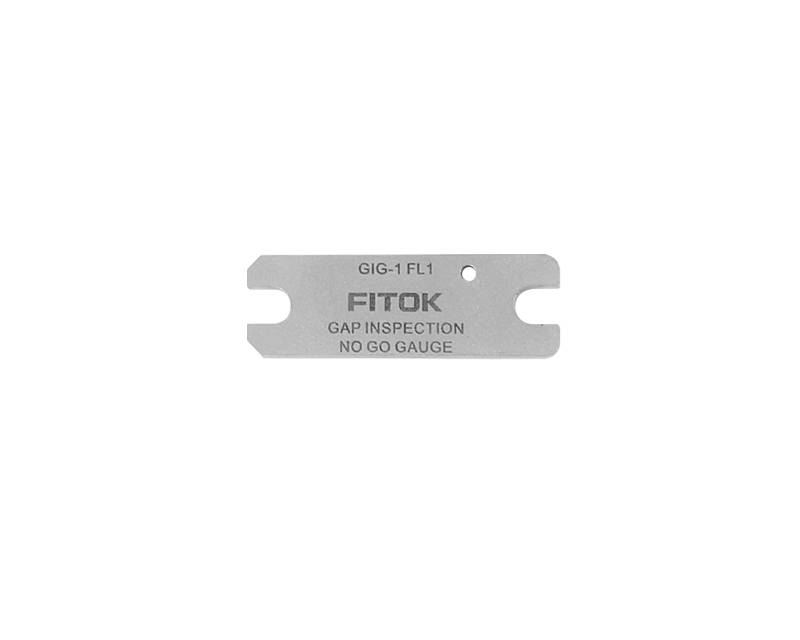

| GIG-1 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 1/16" metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |

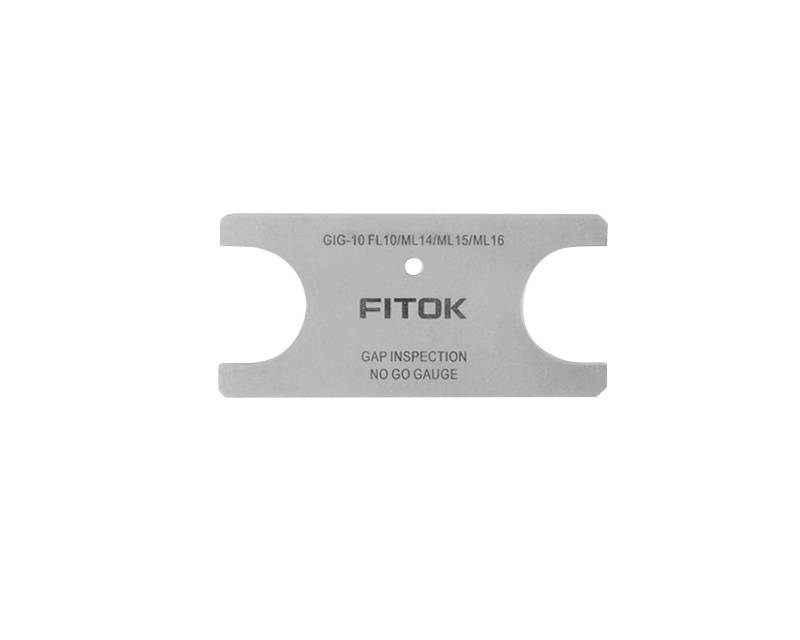

| GIG-10 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 5/8" and 14mm, 15mm,16mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |

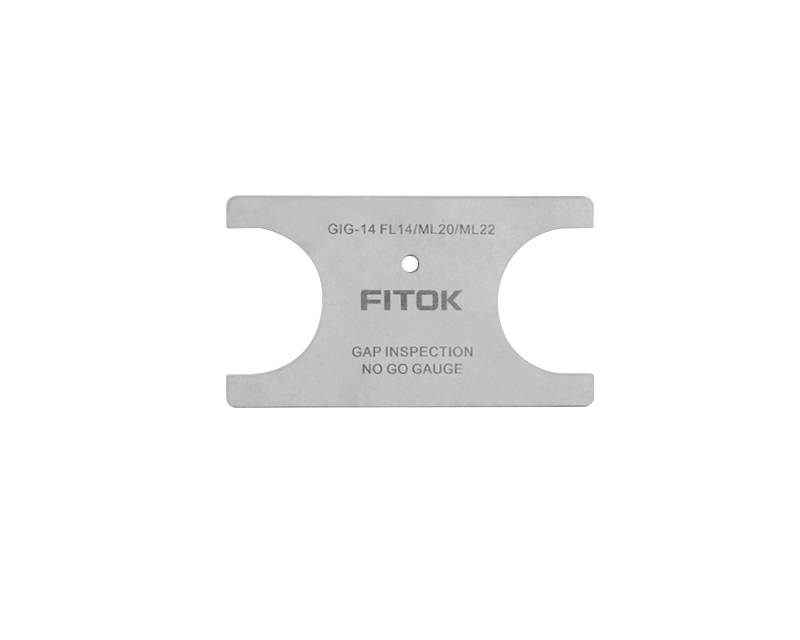

| GIG-14 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 7/8" and 20mm, 22mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |

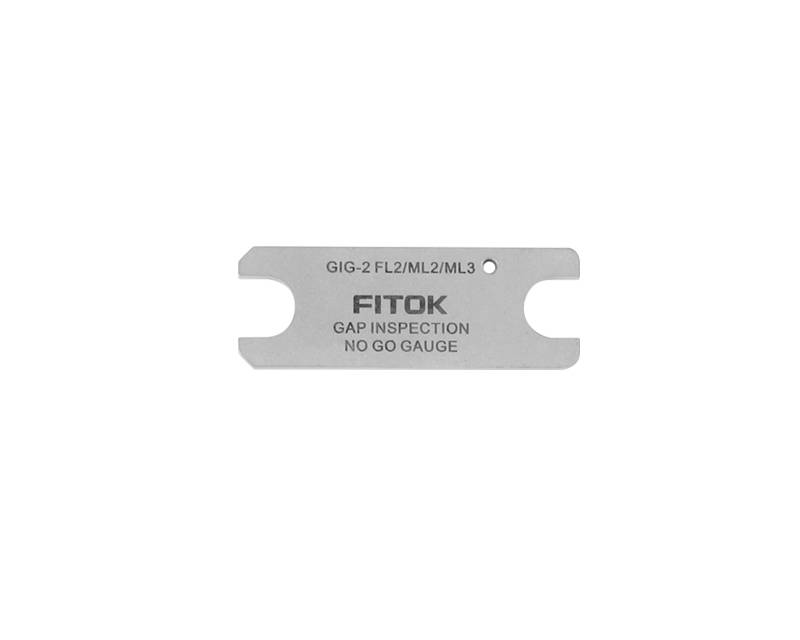

| GIG-2 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 1/8", 2mm and 3mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |

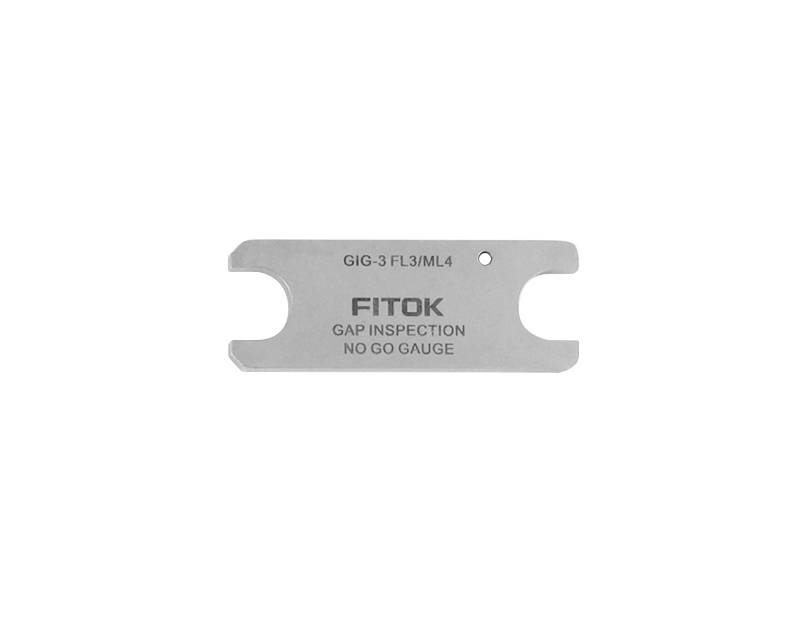

| GIG-3 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 3/16" and 4mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |
| GIG-4 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 1/4" and 6mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |

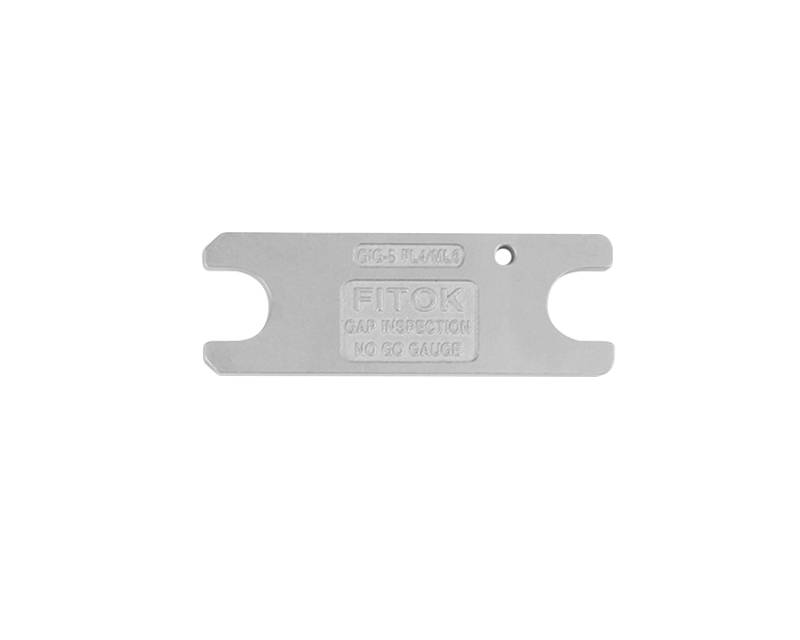

| GIG-5 | Tools | Gap Inspection Gauge | Gap Inspection Gauage, for checking 5/16" and 8mm metal Tube Fittings if they have been sufficiently pulled up on initial installation | IMAGE |

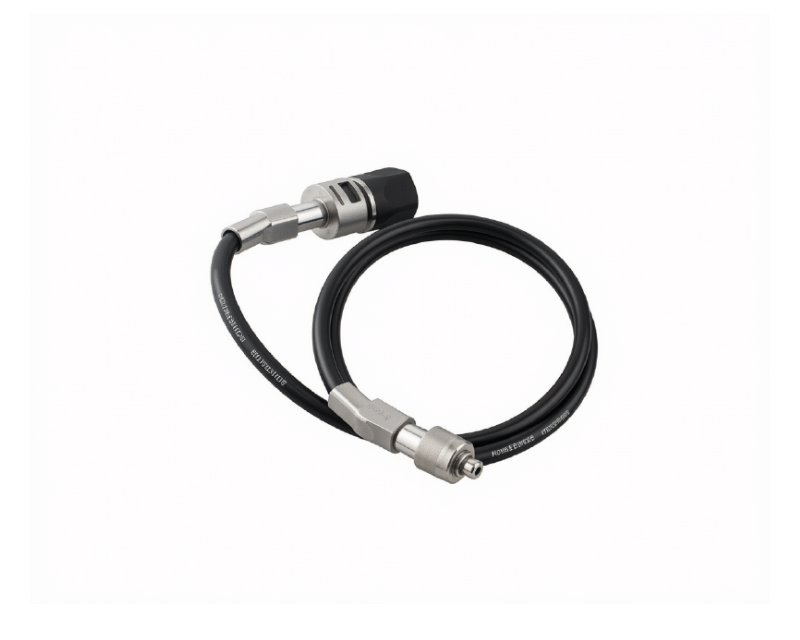

| HPT-0305-360-RGZ | Tools | Hose Assemblies | Hose Assemblies | IMAGE |
| HPT-N | Tools | HP Hydraulic Presetting Tool | Hydraulic Presetting Tool, For presetting tube fittings onto T15A or T20D series tubing, Without Die Heads, the Die Heads can be ordered individually | IMAGE |
| HPT-DFF16 | Tools | Die Head | Die Heads For Hydraulic Presetting Tools, Tube O.D. 1" | IMAGE |
| HPT-DFF16-44.45 | Tools | Die Head | Die Head | IMAGE |
| HPT-DFF8 | Tools | Die Head | Die Heads For Hydraulic Presetting Tools, Tube O.D. 1/2" | IMAGE |
| HPT-DFF9 | Tools | Die Head | Die Heads For Hydraulic Presetting Tools, Tube O.D. 9/16" | IMAGE |
| MPT-1 | Tools | Manual Presetting Tool | High Grade Alloy, For Tube O.D.:1/16in., Applicable for CS, SS, and Alloy Steel Tube Fittings | IMAGE |
| MPT-10 | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 5/8" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-10M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 10mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-12 | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 3/4" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-12M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 12mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-14 | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 7/8" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-14M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 14mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-15M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 15mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-16 | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 1" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-16M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 16mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-18M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 18mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-2 | Tools | Manual Presetting Tool | High Grade Alloy, For Tube O.D.:1/8in., Applicable for CS, SS, and Alloy Steel Tube Fittings | IMAGE |
| MPT-20M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 20mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-22M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 22mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-25M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 25mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-4 | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 1/4" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-4M | Tools | Manual Presetting Tool | Manual Presetter Tool, for fitting size: 4mm O.D. | IMAGE |
| MPT-6 | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 3/8" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-6M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 6mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-8 | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 1/2" carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| MPT-8M | Tools | Manual Presetting Tool | Manual Presetting Tool, for presetting 8mm carbon steel, stainless steel, and alloy steel Tube Fittings | IMAGE |
| SS-BR-1 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings size 1/16" | IMAGE |
| SS-BR-10 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings sizes 5/8" and 14,15,16mm | IMAGE |
| SS-BR-12 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings sizes 3/4" and 18mm | IMAGE |
| SS-BR-14 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings size 7/8" | IMAGE |

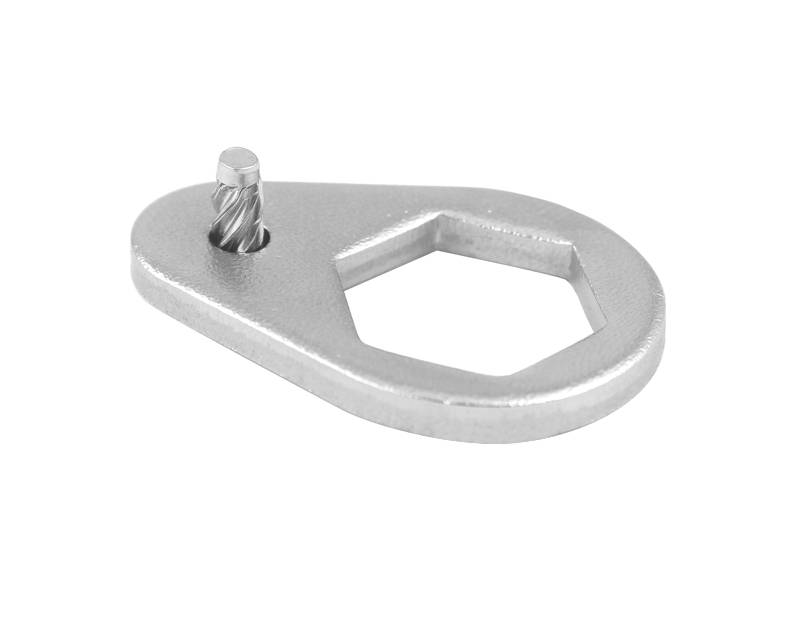

| SS-BR-16 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings sizes 1" and 25mm | IMAGE |
| SS-BR-2 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings size 1/8" | IMAGE |
| SS-BR-3 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings sizes 3/16" and 3, 4mm | IMAGE |
| SS-BR-4 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings sizes 1/4" and 6mm | IMAGE |
| SS-BR-5 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings size 5/16" | IMAGE |
| SS-BR-6 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings size 3/8“ | IMAGE |
| SS-BR-8 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings sizes 1/2" and 12mm | IMAGE |
| SS-BR-FL12-FT12 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 3/4" O.D. × 3/4" O.D. | IMAGE |
| SS-BR-FL12-FT12B75.9 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 3/4" O.D. × 3/4" O.D.FT12 end length 75.9mm | IMAGE |
| SS-BR-FL16-FT16 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1" O.D. × 1" O.D. | IMAGE |
| SS-BR-FL16-FT16-F2 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1" O.D. × 1" O.D. | IMAGE |
| SS-BR-FL1-FT1 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1/16" O.D. × 1/16" O.D. | IMAGE |
| SS-BR-FL1-FT4 | Tools | Bulkhead Reducer | 316 SS Bulkhead Reducer, 1/16" tube O.D.×1/4" tube O.D. | IMAGE |
| SS-BR-FL2-FT2 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1/8" O.D. × 1/8" O.D. | IMAGE |
| SS-BR-FL2-FT2-FOG | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1/8" O.D. × 1/8" O.D. | IMAGE |
| SS-BR-FL4-FT2 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1/4" O.D. × 1/8" O.D. | IMAGE |
| SS-BR-FL4-FT4 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1/4" O.D. × 1/4" O.D. | IMAGE |
| SS-BR-FL4-FT4-F2 | Tools | Bulkhead Reducer | 316 SS, 1/4in. Tube O.D., 2-Ferrule × 1/4in. O.D. Tube Stub End, Bulkhead, Cleaning: ASTM G93 Level C. | IMAGE |
| SS-BR-FL4-FT4-PF | Tools | Bulkhead Reducer | Body and Nut:316 SS, front and rear ferrule:Nylon6, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1/4" O.D. × 1/4" O.D. | IMAGE |
| SS-BR-FL4-FT8 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1/4" O.D. × 1/2" O.D. | IMAGE |
| SS-BR-FL6-FT6 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 3/8" O.D. × 3/8" O.D. | IMAGE |
| SS-BR-FL6-FT8 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 3/8" O.D. × 1/2" O.D. | IMAGE |
| SS-BR-FL8-FT8 | Tools | Bulkhead Reducer | 316 SS, FITOK 6 Series Tube Fitting, Bulkhead Reducer, 1/2" O.D. × 1/2" O.D. | IMAGE |
| SS-BR-M10 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings size 10mm | IMAGE |
| SS-BR-M6 | Tools | Bulkhead Mounting | Bulkhead Retainer, for fittings size 6mm | IMAGE |
| SS-BR-M8 | Tools | Bulkhead Reducer | Bulkhead Retainer, for fittings size 8mm | IMAGE |
| SS-BR-ML12-MT12 | Tools | Bulkhead Reducer | 316 SS Tube Fittting, Bulkhead Reducer, 12mm O.D. | IMAGE |
| SS-BR-ML6-MT6 | Tools | Bulkhead Reducer | 316 SS, 6mm Tube O.D., 2-Ferrule x 6mm O.D. Tube Stub End, Bulkhead | IMAGE |
| SS-BR-ML8-MT6-FOG | Tools | Bulkhead Reducer | 316 stainless steel, Fittok 6 series through-plate double ferrule-ferrule tube connector, 8mm Tube outer diameter × 6mm ferrule tube outer diameter, FOG process | IMAGE |
| SS-BR-ML8-MT8 | Tools | Bulkhead Reducer | 316 SS, 6 Series tube fittings, Bulkhead Reducer, 8mm O.D. | IMAGE |
| GIG-12-D7 | Tools | Gap Inspection Gauge | Gap Inspection Gauge for Super Duplex 2507 3/4'' Tube O.D. Fittings | No Image |
| HPT-03-1-6 | Tools | Small Retaining Ring | Small Retaining Ring | No Image |
| HPT-03-RK-Q92681 | Tools | Repair Kit | O-ring for HPT-03 | No Image |
| HPT-03-RK-Q93201 | Tools | Repair Kit | Replacement Kit for HPT-03, 6pcs O-ring included. | No Image |
| HPT-03-U-B230784 | Tools | Manual Presetting Block | Repair cost for the body of hydraulic presetting tools HPT-03. | No Image |
| HPT-05-1-7 | Tools | Large Retainer | Large Retainer | No Image |
| HPT-05-RK-Q92681 | Tools | Repair Kit | O-ring for HPT-05 | No Image |
| HPT-05-RK-Q93201 | Tools | Repair Kit | Replacement Kit for HPT-05, 6pcs O-ring included. | No Image |
| HPT-05-RK-Q99250 | Tools | Repair Kit | Repaire kit for HPT-05C | No Image |
| HPT-141-RK | Tools | Repair Kits | Repair Kits for HPT-03M, includes a manual pump, test connector, O-ring for the test connector, and a plug. | No Image |
| HPT-H | Tools | HP Hydraulic Presetting Tool | For HP Double Ferrule Fittings, Pump assembly c/w pressure gauge and die holder, Without die heads | No Image |
| HPT-H-DHL12 | Tools | Die Head | Die Head | No Image |
| HPT-H-DHL8 | Tools | Die Head | Die Head | No Image |
| HPT-H-DHL9 | Tools | HP Die Head | For HP Double Ferrule Fittings, 9/16in. Tube O.D. | No Image |
For more information on product models or customization services, please send your Inquiry
