Coaxial Tubing and Fittings TCA Series
| Part Number | Material | Category | Description | Image |
|---|---|---|---|---|

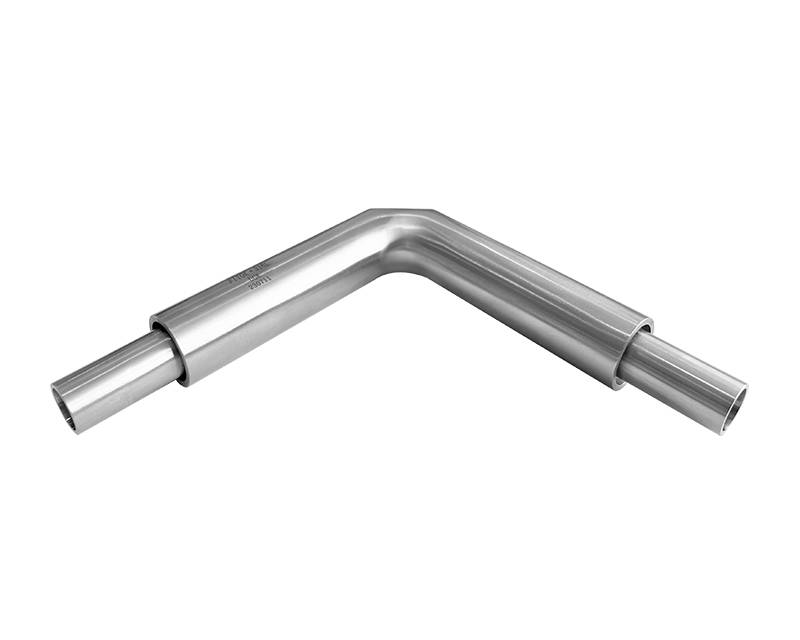

| 6L-CEL-TB4-TB8-CC | 316L SS | CEL Coaxial 90° Elbow | 316L Stainless Steel, CEL Coaxial 90° Elbow, Inner Tube: 1/4 in. OD × 0.035 in. WT, Outer Tube: 1/2 in. OD × 0.049 in. WT, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | IMAGE |
| 6L-CEL-TB8-TB12-CC | 316L SS | CEL Coaxial 90° Elbow | 316L Stainless Steel, CEL Coaxial 90° Elbow, Inner Tube: 1/2 in. OD × 0.049 in. WT, Outer Tube: 3/4 in. OD × 0.065 in. WT, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | IMAGE |

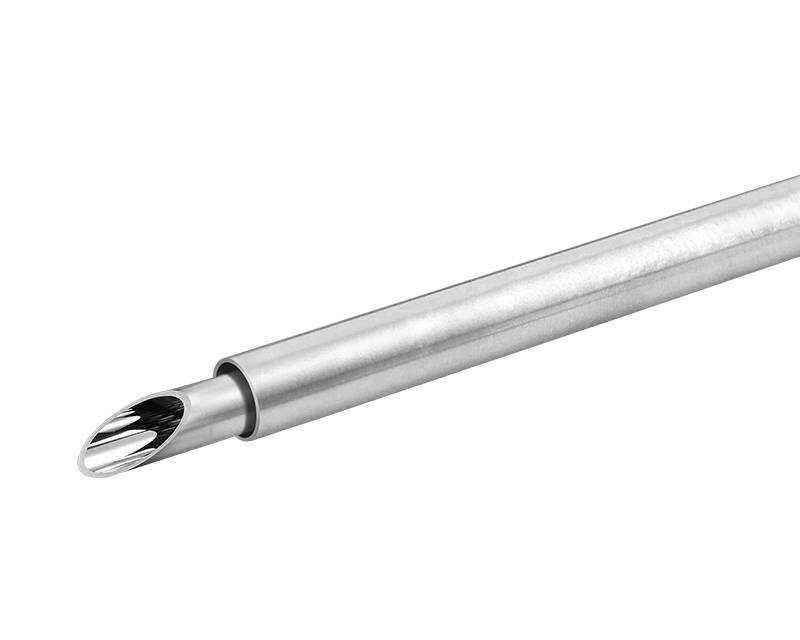

| 6L-CEP-TB4-TB8-6M-CC | 316L SS | CEP Coaxial Tubing | 316L Stainless Steel, CEP Coaxial Tubing, Inner Tube: 1/4 in. OD × 0.035 in. WT, Outer Tube: 1/2 in. OD × 0.049 in. WT, Length 6 m, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | IMAGE |
| 6L-CEP-TB6-TB10-20F-CC | 316L SS | CEP Coaxial Tubing | 316L Stainless Steel, CEP Coaxial Tubing, Inner Tube: 3/8 in. OD × 0.035 in. WT, Outer Tube: 5/8 in. OD × 0.049 in. WT, Length 20 ft, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | IMAGE |
| 6L-CET-TB4-TB8-CC | 316L SS | CET Coaxial Equal Tee | 316L Stainless Steel, CET Coaxial Equal Tee, Inner Tube: 1/4 in. OD × 0.035 in. WT, Outer Tube: 1/2 in. OD × 0.049 in. WT, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | IMAGE |
| 6L-CET-TB6-TB10-CC | 316L SS | CET Coaxial Equal Tee | 316L Stainless Steel, CET Coaxial Equal Tee, Inner Tube: 3/8 in. OD × 0.035 in. WT, Outer Tube: 5/8 in. OD × 0.049 in. WT, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | IMAGE |
| 6L-CEV-TB4-TB8-CC | 316L SS | CEV Coaxial 45° Elbow | 316L Stainless Steel, CEV Coaxial 45° Elbow, Inner Tube: 1/4 in. OD × 0.035 in. WT, Outer Tube: 1/2 in. OD × 0.049 in. WT, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | No Image |
| 6L-CEV-TB6-TB10-CC | 316L SS | CEV Coaxial 45° Elbow | 316L Stainless Steel, CEV Coaxial 45° Elbow, Inner Tube: 3/8 in. OD × 0.035 in. WT, Outer Tube: 5/8 in. OD × 0.049 in. WT, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | No Image |
| 6L-CRT-TB6-TB4-TB10-TB8-CC | 316L SS | CRT Coaxial Reducing Tee | 316L Stainless Steel, CRT Coaxial Reducing Tee, Main Inner Tube: 3/8 in. OD × 0.035 in. WT, Branch Inner Tube: 1/4 in. OD × 0.035 in. WT, Main Outer Tube: 5/8 in. OD × 0.049 in. WT, Branch Outer Tube: 1/2 in. OD × 0.049 in. WT, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | No Image |
| 6L-CRT-TB8-TB4-TB12-TB8-CC | 316L SS | CRT Coaxial Reducing Tee | 316L Stainless Steel, CRT Coaxial Reducing Tee, Main Inner Tube: 1/2 in. OD × 0.049 in. WT, Branch Inner Tube: 1/4 in. OD × 0.035 in. WT, Main Outer Tube: 3/4 in. OD × 0.065 in. WT, Branch Outer Tube: 1/2 in. OD × 0.049 in. WT, Inner Tube Internal Surface Ra ≤ 10 µin. (0.25 μm), Outer Tube Internal Surface Ra ≤ 63 µin. (1.6 μm) | No Image |
| 6L-CSL-TB10-6M-C | 316L SS | CSL Coaxial Sleeve | 316L Stainless Steel, CSL Coaxial Sleeve, 5/8 in. ID, 3/4 in. OD, Length 6m, Internal Surface Ra ≤ 63 µin. (1.6 μm) | No Image |
| 6L-CSL-TB8-4N-C | 316L SS | CSL Coaxial Sleeve | 316L Stainless Steel, CSL Coaxial Sleeve, 1/2 in. ID, 5/8 in. OD, Length 4 in., Internal Surface Ra ≤ 63 µin. (1.6 μm) | No Image |
| 6L-CTE-TB10-TB6 | 316L SS | CTE Coaxial Terminator | 316L Stainless Steel, CTE Coaxial Terminator, Big End: 5/8 in. OD × 0.049 in. WT, Small End: 3/8 in. ID | No Image |
| 6L-CTE-TB8-TB4 | 316L SS | CTE Coaxial Terminator | 316L Stainless Steel, CTE Coaxial Terminator, Big End: 1/2 in. OD × 0.049 in. WT, Small End: 1/4 in. ID | No Image |
| SS-CCU-FL16-6.5 | 316L SS | CCU Series Coaxial Seal Fitting | 316 Stainless Steel, FITOK CCU Series Coaxial Seal Fitting, 1 in. Tube OD, Length 6.5 in.（165 mm） | IMAGE |

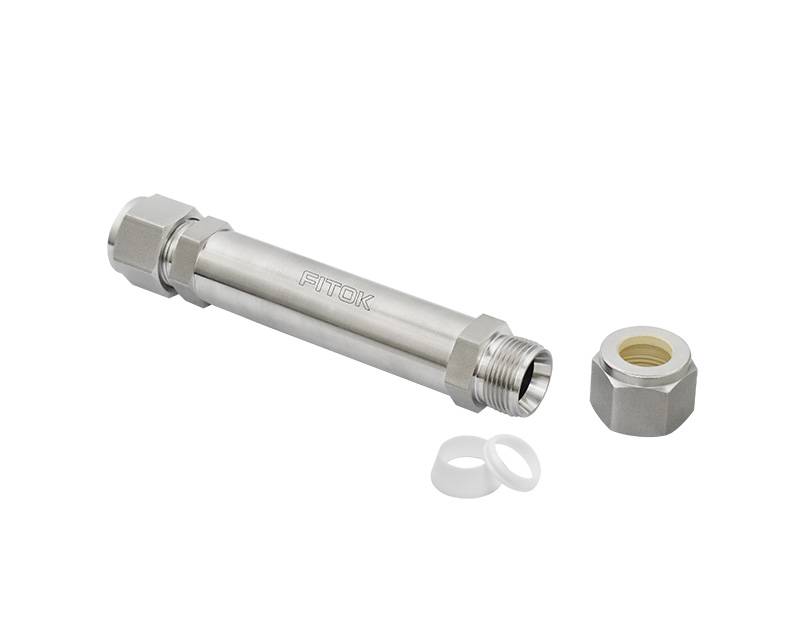

| SS-CCU-FL16TF-6.5 | 316L SS | CCU Series Coaxial Seal Fitting | 316 Stainless Steel, FITOK CCU Series Coaxial Seal Fitting, 1 in. Tube OD, PTFE Ferrule Material, Length 6.5 in.（165 mm） | IMAGE |
| SS-CCU-FL8-5.3 | 316L SS | CCU Series Coaxial Seal Fitting | 316 Stainless Steel, FITOK CCU Series Coaxial Seal Fitting, 1/2 in. Tube OD, Length 5.3 in.（135 mm） | IMAGE |
| SS-CCU-FL8TF-5.3 | 316L SS | CCU Series Coaxial Seal Fitting | 316 Stainless Steel, FITOK CCU Series Coaxial Seal Fitting, 1/2 in. Tube OD, PTFE Ferrule Material, Length 5.3 in.（135 mm） | IMAGE |
For more information on product models or customization services, please send your Inquiry
