Tube Clamp, FC and CS Series
FC and CS Series Tube Clamps are high-performance products specifically designed for tube or pipe support and fixation. The FC Series includes U-bolt clamps and steel strip, suitable for tubes or pipes with outer diameters ranging from 5.5mm to 61mm, featuring vibration and noise damping properties for widespread use in industrial piping systems. The CS Series utilizes corrosion-resistant, chemically inert plastic support bodies with hex bolts and accessories to enhance system stability and reliability. Both series comply with DIN standards, providing long-term secure support in harsh environments for diverse industrial applications. ASME codes provide tables and formulas to calculate the maximum allowable spacing for various pipe sizes and materials.
Tube Clamp FC Series
Steel Strip and U-bolt Clamps
Features
◎ Designed according to DIN standard
◎ Tube or pipe O.D. size range: 5.5 mm to 61 mm
◎ Tube or pipe application
◎ Vibration-proof and noise-proof design
◎ All marked with type and dimension
⇒ FC1 Series : Metal Pipe Clamp with Rounded Ends.
⇒ FC2 Series : Metal Pipe Clamp with Rounded Ends and One-Side Elongated Shaft.
⇒ FC3 Series : Heavy Saddle Double-Ended Design.
⇒ FC4 Series : Heavy Saddle Single-Ended Design.
Tube Clamp CS Series
Bolted Plastic Clamp Supports
Features
◎ Comply with DIN 3015 – 1
◎ Resist chemical corrosion
◎ Resist ultraviolet radiation
◎ Enhance system reliability
◎ Vibration-proof and noise-proof design
Support Body : polypropylene (PP), Polyamide (PA)
Hex Head Bolts, Cover Plate, Support Body : 304 stainless steel, 316 stainless steel, Carbon steel, galvanized, Carbon steel, phosphating

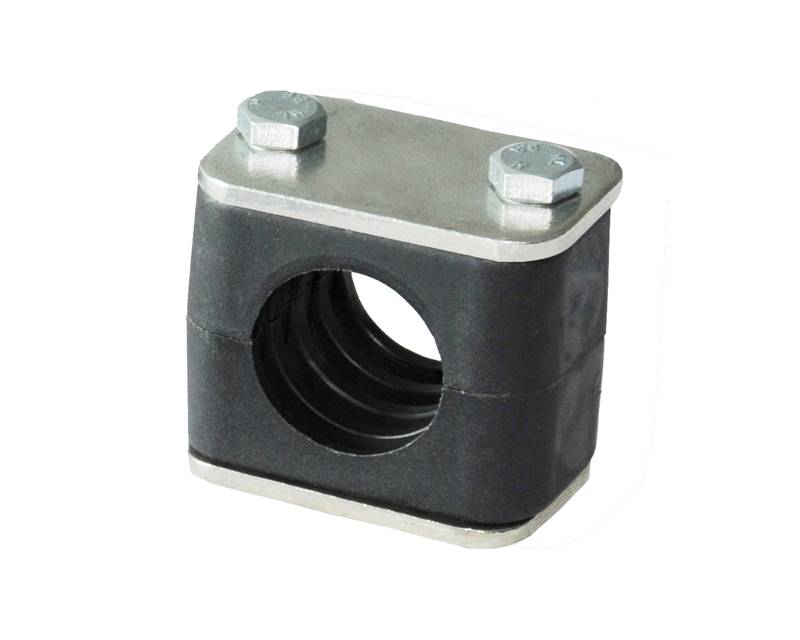

⇒ SP Type : Short Weld Plate Base
⇒ EP Type : Length Weld Plate Base

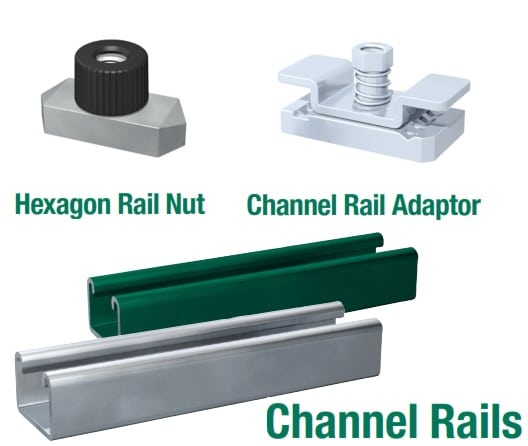

⇒ MP Type : Mounting Rail and Nut Base
≅ Please click the page on the side below to view the Product Detail of Tube Clamps, FC and CS Series.
