Instrument Valve Product
Instrument Valve Product have many kind and type refer to your pressure application and function of the Valve.
Instrument Valve is design for Safe Product Selection the complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. FITOK offers valve and process ball, check, diaphragm-sealed, metering, shutoff and regulating needle, process instrumentation, quarter-turn plugs and relief valves, and manifolds.
Instrument Valve type and specification
Trunnion Ball Valves :
BF and BFH Series
Working pressure up to: 10,000 psig (690 bar) Working temperature: 0°F to 450°F (-18°C to 232°C)
3-piece Ball Valves :
BG Series : Workingpressureupto: 1000 psig (69.0 bar) Working temperature: -20°F to 450°F (-28°C to 232°C)
BH Series : Working pressure up to 3000 psig (207 bar) Working temperature: -20F to 450F (-28C to 232C)
One-piece Instrumentation Ball Valves : BO Series
Working pressure up to: 3000 psig (207 bar) Working temperature: -65°F to 300°F (-54°C to 148°C)
Bar Stock Ball Valves :
BP Series : Working pressure up to: 10000 psig (690 bar), Working temperature : -40°Fto450°F (-40°Cto232°C)
Hex Bar Stock Ball Valves : BR and BRC Series
Working pressure up to : BR Series: 1000 psig (69.0 bar)
BRC Series: 2000 psig (138 bar)High Performance Ball Valves :
BV Series : Working pressure up to : 6000 psig (414 bar) Working temperature: -65 F to 450F (-54C to 232C)

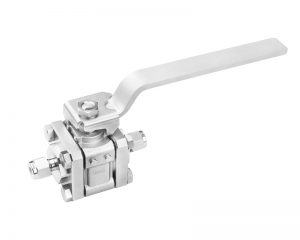

High Temperature Metal-seated Ball Valves :
BK Series : 3-piece precision cast body construction, High temperature resistant sealing materials for thermal service up to 662 °F (350°C)

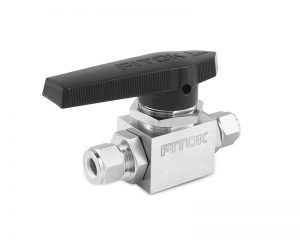

Alternative Fuel Service Ball Valves : BU Series
Working pressures up to 6000 psig (413 bar)Working temperature: -40 to 250°F (-40 to 121°C)
Trunnion Type, BF & BFH Series
3-piece, ~1000 psig, BG Series
3-piece, ~3000 psig, BH Series
1-piece Instrumentation, ~3000 psig, BO Series
Bar Stock, ~10000 psig, BP Series
Hex Bar Stock, ~1000 psig, BR Series
Hex Bar Stock, ~2000 psig, BRC Series
High Performance, ~6000 psig, BV Series
Alternative Fuel Service, ~6000 psig, BU Series
High Temperature Metal-seated, ~450℃, BK Series
Fire Service, 3-piece, BI Series

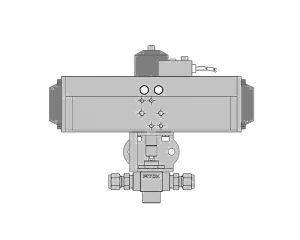

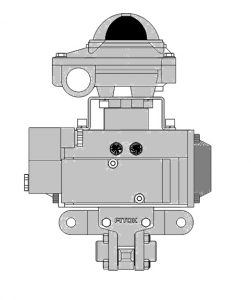

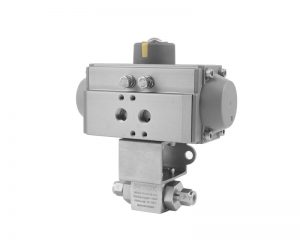

Pneumatic/Electrical Actuated Ball Valves
Instrument Needle Valve
Needle Valve
Screwed Bonnet Needle Valves
NB Series : Working pressure up to 6000 psig
Cold drawn bar as body, Two piece stem design:
Nonrotating-stem Needle Valves
ND Series : Working pressure up to 3000 psig
NDH Series : Working pressure up to 5000 psig
Forged Body Needle Valves
NF Series : Working pressure up to 6000 psig
NFH Series : Working pressure up to 10000 psig
Integral Bonnet Needle Valves
NG Series : 3000 psig
NGH Series : Working pressure up to 5000 psig
One-piece forged body
Bar Stock Needle Valve NB Series
Forged Needle Valve NF Series
General Purpose Needle Valve NG-NGH Series
Non Rotating Stem ND Series Needle Valve
Outside Screw and Yoke NY Series Needle Valves
Rising Plug Valve NR Series Needle Valve
Toggle Valves NT Series
Unon Bonnet Needle Valve NU-NUH Series
Instrument Manifold Valve
• 2-valve Instrumentation Manifolds
• 3-valve Instrumentation Manifolds
• 5_valve_Instrumentation Manifolds
2D Series 2-Way Manifolds Angle pattern Direct Mounting
2D Series 2-Way Manifolds inline Direct Mounting
2R Series 2-Way Manifolds Vertical pattern Remote Mounting
2R Series 2-Way Manifolds Instrumentation Angle Pattern Remote Mounting
2RH Series 2-Way Manifolds Horizontal- Remote Mounting
3D Series 3-Way Manifolds Vertical- Direct Mount Flange
3D Series 3-Way Manifolds Vertical- Remote Mounting Female NPT × Flange
3D Series 3-Way Manifolds, Direct Mount(transmitter with coplanar mounting flange), Tube Fitting × Flange(MSS) Angle Pattern
3R Series 3-Way Manifolds Vertical- Remote Mounting Female NPT
5D Series 5-Way Manifolds Direct Mount(transmitter with coplanar mounting flange) Female NPT × Flange(MSS)
5D Series 5-Way Manifolds Vertical Direct Mount inline (transmitter with coplanar mounting flange) Female NPT × Flange(MSS)
5D Series 5-Way Manifolds Vertical Direct Mount(transmitter with coplanar mounting flange) Female NPT × Flange(MSS)
5R Series 5-Way Manifolds Vertical Remote Mount Female NPT
Manifold valve and related products for instrumentation applications can you Choose from a variety size and Material, Manifold valve is can have many fungtion as per your instrument design and fungtion of measurement
Features : Instrument Manifold Valve
Working Pressure up to :
Stainless Steel : 2D.3R,3D,5R up to 6000 psig (414 bar)
2DH, 2RH, 3DH, 3RH, 5DH up to 10000 Psig (690 bar)
Working Temperature :
PTFE Packing : -65 to 450 Deg F (-54 deg C tp 232 deg C)
Graphite packing : -65 deg F to 1200 Deg F(-54 deg C to 649 deg C)
Two-pices stem design : upper stem thread cold rolled and hardened lower stem for hugh strength and smooth operation
Upper stem thread lubrication isolated from system media
Linier instead of rotary motion of the rising, non-rotating stem
Safety back seating seals in fully open position
Linear instead of rotary motion of the handle by double lock-pins.
Features : Manifold Valve
Non-rotating lower stem, ball tip and plug tip designs
Variety of materials for seat and packing
Safety back seating seals in fully open position
Rolled spindle operating threads
Lubricant for stem thread isolated from the media
Externally adjustable gland
Bonnet locking pin fitted as standard
Low torque operating T bar handle
Each 2D/2R/3D/3R/5D/5R Series manifold leak tested with nitrogen or compressed air at the maximum working pressure, each 2DH/2RH/3DH/3RH/5DH/5RH series manifold leak test with water at 1.1 times the maximum working pressure.
Manifolds Mounting Application
• Remote Mount Manifolds (with transmitter)
• Direct Mount Manifolds (transmitter with coplanar mounting flange)
• Direct Mount Manifolds (transmitter with traditional flange)
• Direct Mount Manifolds (transmitter without flange)
Remote Mount Manifold (with transmitter) 2-way
Remote Mount Manifold (with transmitter) 3,5-way
Direct Mount Manifolds 2 way
Direct Mount Manifolds 3 way
Direct Mount Manifolds 5 way
Direct Mount Manifolds with Traditional Flange 3-way
Direct Mount Manifolds with Traditional Flange 5-way
Direct Mount Manifolds with Traditional Flange 2-way
Direct Mount Manifolds without Traditional Flange 2-way
Direct Mount Manifolds without Traditional Flange 3-way
Direct Mount Manifolds without Traditional Flange 5-way
