Stainless steel Ball valve
It’s can be use in a wide range of applications from general purpose, alternative fuel service, subsea, gas flow, hydraulic and also up to fluid flow control systems. Ball valves are designed to be used in fully open or fully closed position and also available as on-off, switching, or crossover, ball valves can be configured to various specifications, beside above parameter these are some of the system parameters that should be considered during the selection valve. It is important to consider the entire range of the parameters your valve may encounter.

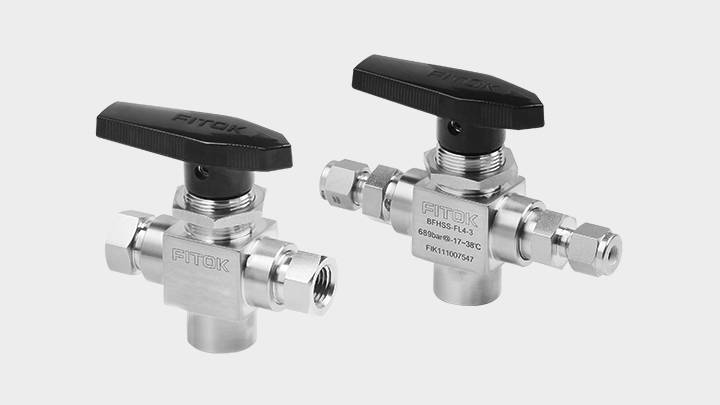

Trunnion Type, BF & BFH Series
◎ Trunnion-style ball to prevent ball blowout. ◎Fixed ball with double sealing. ◎Automatic compensation of seat sealing. ◎Low-temperature service option available

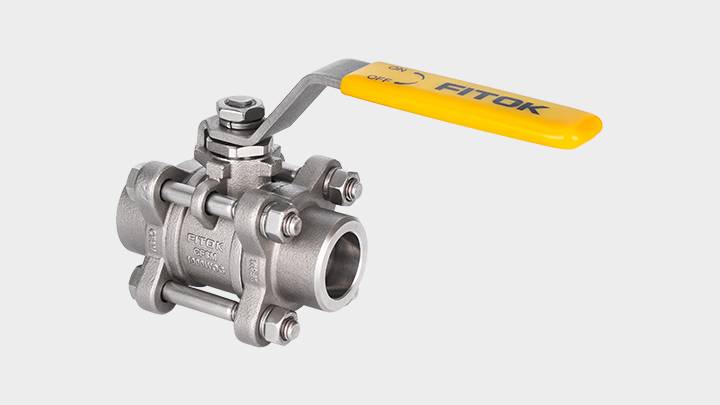

3-piece Ball Valves ~1000 psig, BG Series
◎ 3-piece precision cast body construction ◎ Blowout proof stem. ◎ Bidirectional flow. ◎ CNG-Powered Vehicle (NGV) and Fueling System Solutions

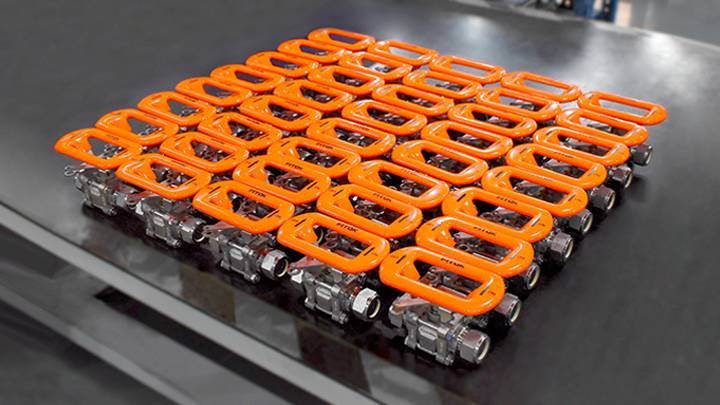

3-piece Ball Valves ~3000 psig, BH Series
◎ 3-piece precision cast body construction. ◎Bidirectional flow for 2-way valves. ◎ Bottom port as inlet for 3-way valves. ◎ Pneumatic and electric actuator available

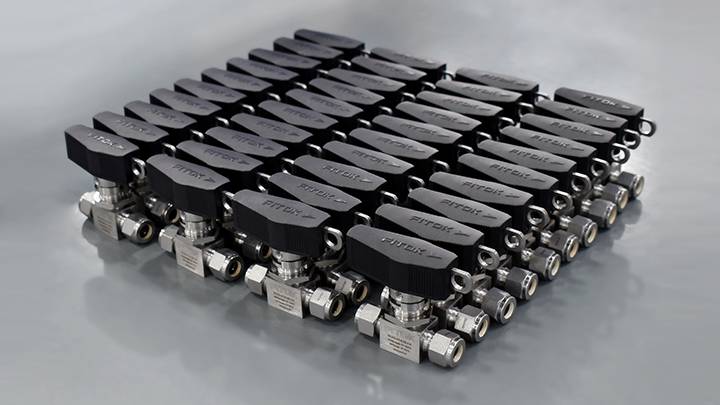

1-piece Instrumentation Ball Valves, ~3000 psig, BO Series
◎One-piece body and one-piece ball stem. ◎Top-loaded design to allow adjustment with the valve in-line. ◎Thermal cycle performance compensated by live-loaded design

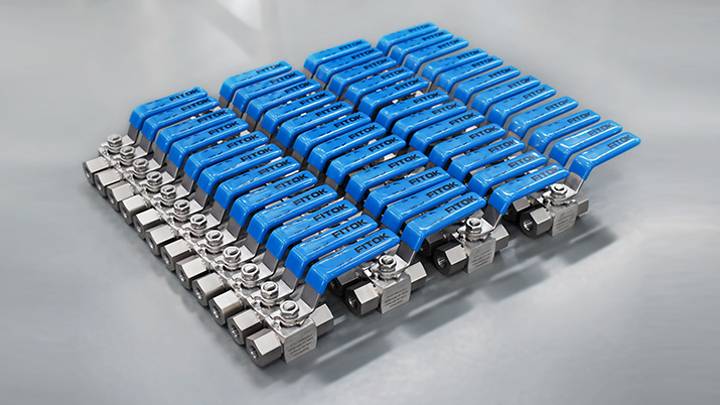

Bar Stock Ball Valves, ~10000 psig, BP Series
◎Seat wear compensation by free floating ball. ◎Blowout proof stem with self-sealing function. ◎Optional pneumatic and electric actuator. ◎Handle color options available
Hex Bar Stock Ball Valves, ~1000 psig, BR Series & ~2000 psig, BRC Series
◎Compact and economical design. ◎Free floating ball design for seat wear compensation. ◎ Bi-directional flow. ◎Low operating torque. ◎Blowout proof stem

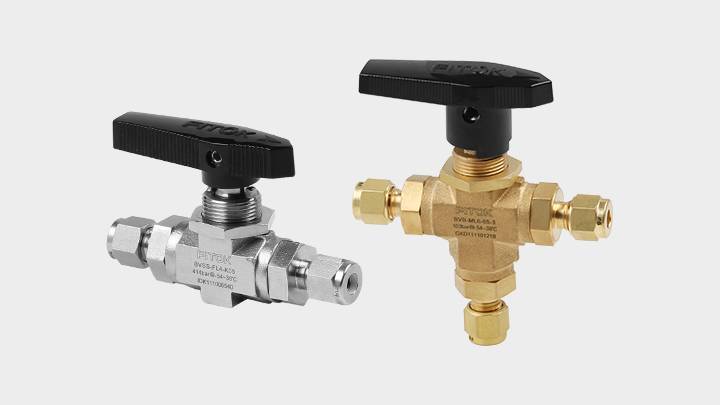

High Performance Ball Valves, ~6000 psig, BV Series
◎ Low operating torque. ◎Positive handle stop. ◎Bi-directional flow for straight valves.◎the inlet of 3-way valves and angle pattern valves can only be the bottom port
Alternative Fuel Service Ball Valves, ~6000 psig, BU Series
◎All wetted components are compatible with hydrogen and compressed natural gas (CNG). ◎Spring-loaded seat provides leak-tight integrity in both low-and high-pressure

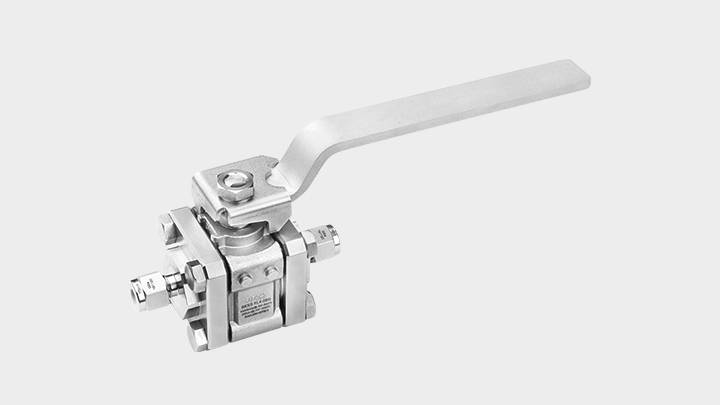

High Temperature Metal-seated Ball Valves, ~450℃, BK Series
◎3-piece precision cast body construction. ◎Free floating ball design provides seat wear compensation. ◎ Ball and seats mate-lapped for 100% contact ensures absolute shutoff.
Stainless Steel Ball Valve
BH series three-piece Fire Safe Ball Valves
The ball valves have been tested and certified in accordance with ISO 15848-1 and API STD 607 to ensure reliable performance. The body seal during rapid temperature and pressure changes resulting from fire exposure.
Medium and High Pressure Ball Valve
Ball Valves and Pneumatic Ball Valves
◎10B Series: 10,000 psig (690 bar)
◎15B Series: 15,000 psig (1034 bar)
◎20B Series: 20,000 psig (1379 bar)
Stainless steel ball valve

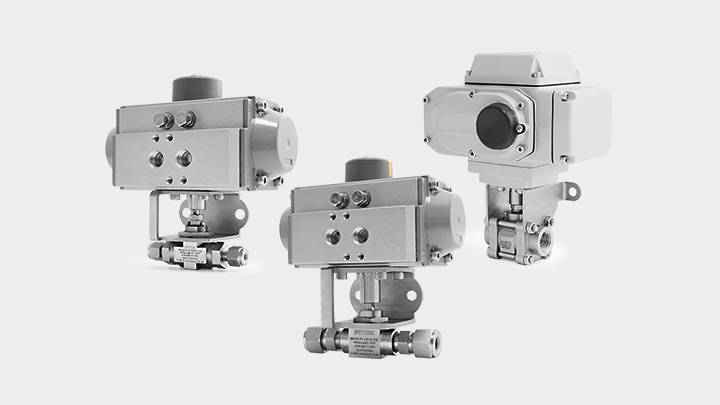

Automatic Control Ball Valves : Pneumatic Actuated Ball, Electric Actuated Ball Valves
Pneumatic Actuated Ball Valves, Electric Actuated Ball Valves
Download Catalog
Ball Valve Technical
2-way Ball Valve Flow Pattern
