Manifolds Valve for Instrumentation

2-Way valve Instrumentation manifold 3-Way valve Instrumentation manifold 5-Way valve Instrumentation manifold

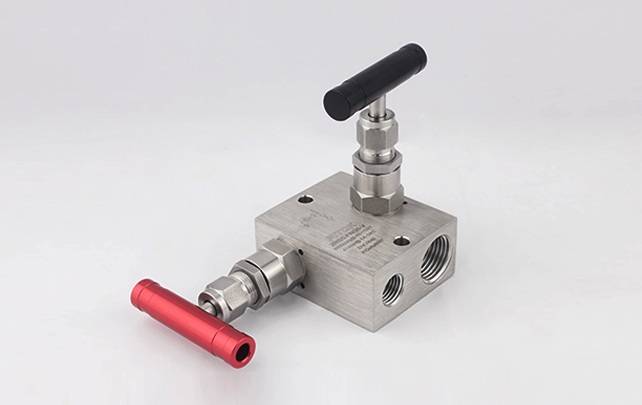

2D Series 2-Way Manifolds Angle pattern Direct Mounting
2D Series 2-Way Manifolds inline Direct Mounting
2R Series 2-Way Manifolds Vertical pattern Remote Mounting
2R Series 2-Way Manifolds Instrumentation Angle Pattern Remote Mounting
2RH Series 2-Way Manifolds Horizontal- Remote Mounting

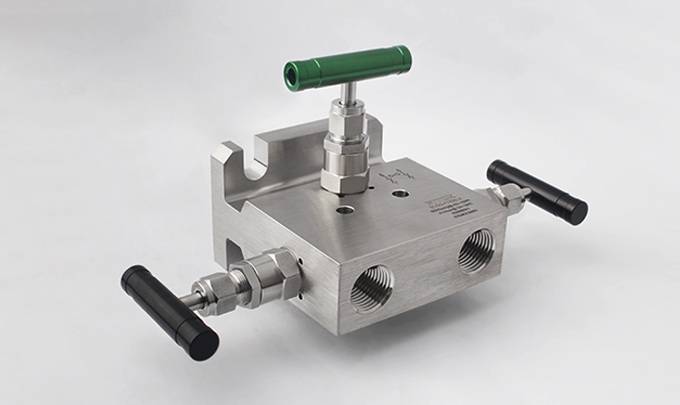

3D Series 3-Way Manifolds Vertical- Direct Mount Flange
3D Series 3-Way Manifolds Vertical- Remote Mounting Female NPT × Flange
3D Series 3-Way Manifolds, Direct Mount(transmitter with coplanar mounting flange), Tube Fitting × Flange(MSS) Angle Pattern
3R Series 3-Way Manifolds Vertical- Remote Mounting Female NPT
5D Series 5-Way Manifolds Direct Mount(transmitter with coplanar mounting flange) Female NPT × Flange(MSS)
5D Series 5-Way Manifolds Vertical Direct Mount inline (transmitter with coplanar mounting flange) Female NPT × Flange(MSS)
5D Series 5-Way Manifolds Vertical Direct Mount(transmitter with coplanar mounting flange) Female NPT × Flange(MSS)
5R Series 5-Way Manifolds Vertical Remote Mount Female NPT
Manifold valve and related products for instrumentation applications can you Choose from a variety size and Material, have many function as per your instrument design and function of measurement

Features :
Working Pressure up to :
Stainless Steel : 2D.3R,3D,5R up to 6000 psig (414 bar)
2DH, 2RH, 3DH, 3RH, 5DH up to 10000 Psig (690 bar)
Working Temperature :
PTFE Packing : -65 to 450 Deg F (-54 deg C tp 232 deg C)
Graphite packing : -65 deg F to 1200 Deg F(-54 deg C to 649 deg C)
Two-pices stem design : upper stem thread cold rolled and hardened lower stem for hugh strength and smooth operation
Upper stem thread lubrication isolated from system media
Linier instead of rotary motion of the rising, non-rotating stem
Safety back seating seals in fully open position
Linear instead of rotary motion of the handle by double lock-pins.

Features :
Non-rotating lower stem, ball tip and plug tip designs
Variety of materials for seat and packing for instance special application
Safety back seating seals in fully open position
Rolled spindle operating threads
Lubricant for stem thread isolated from the consequently media contamination
Externally adjustable gland
Bonnet locking pin fitted as standard
Low torque operating T bar handle
Each 2D/2R/3D/3R/5D/5R Series manifold leak tested with nitrogen or compressed air at the maximum working pressure, each 2DH/2RH/3DH/3RH/5DH/5RH series manifold leak test with water at 1.1 times the maximum working pressure.

Manifolds Mounting Application

Remote Mount Manifold (with transmitter) Direct Mount Manifold (transmitter with coplanar mounting flange) Direct Mount Manifold (transmitter with traditional flange) Direct Mount Manifold (transmitter without flange)

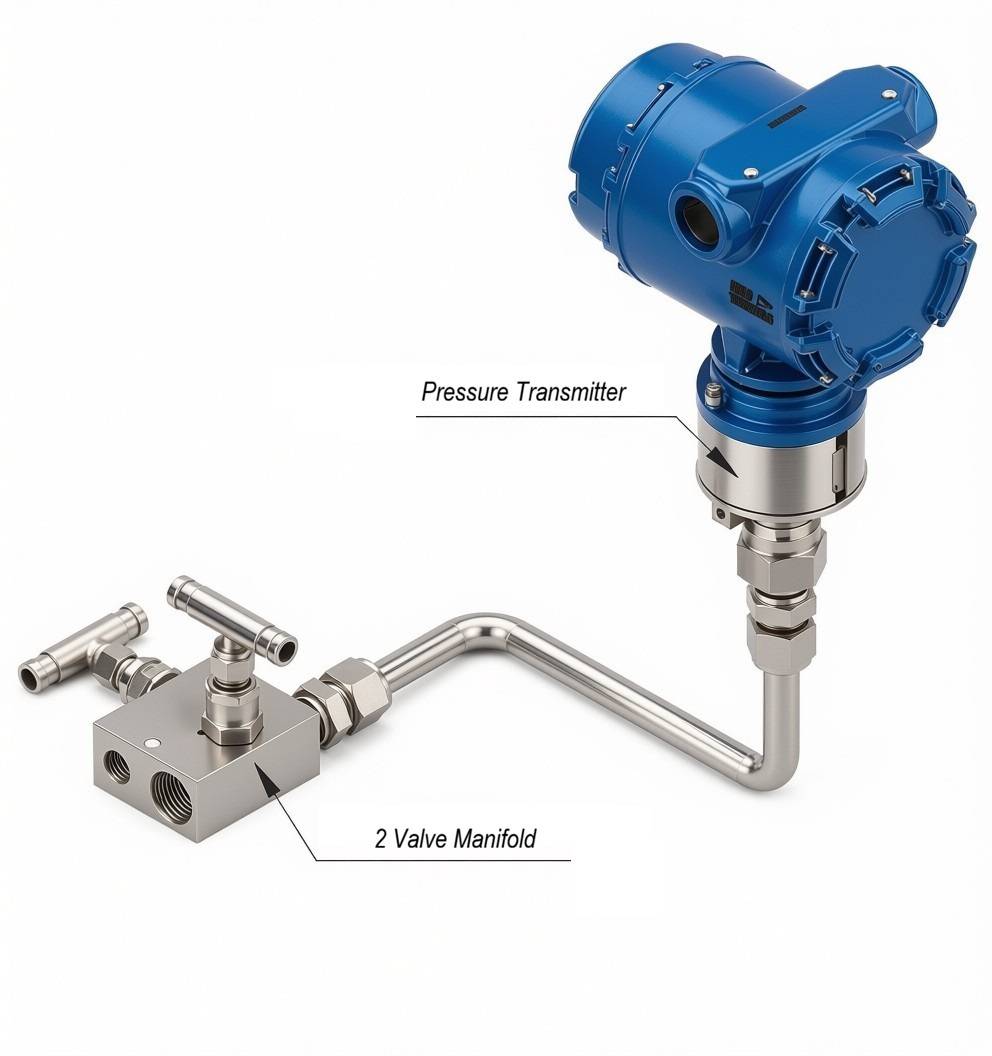

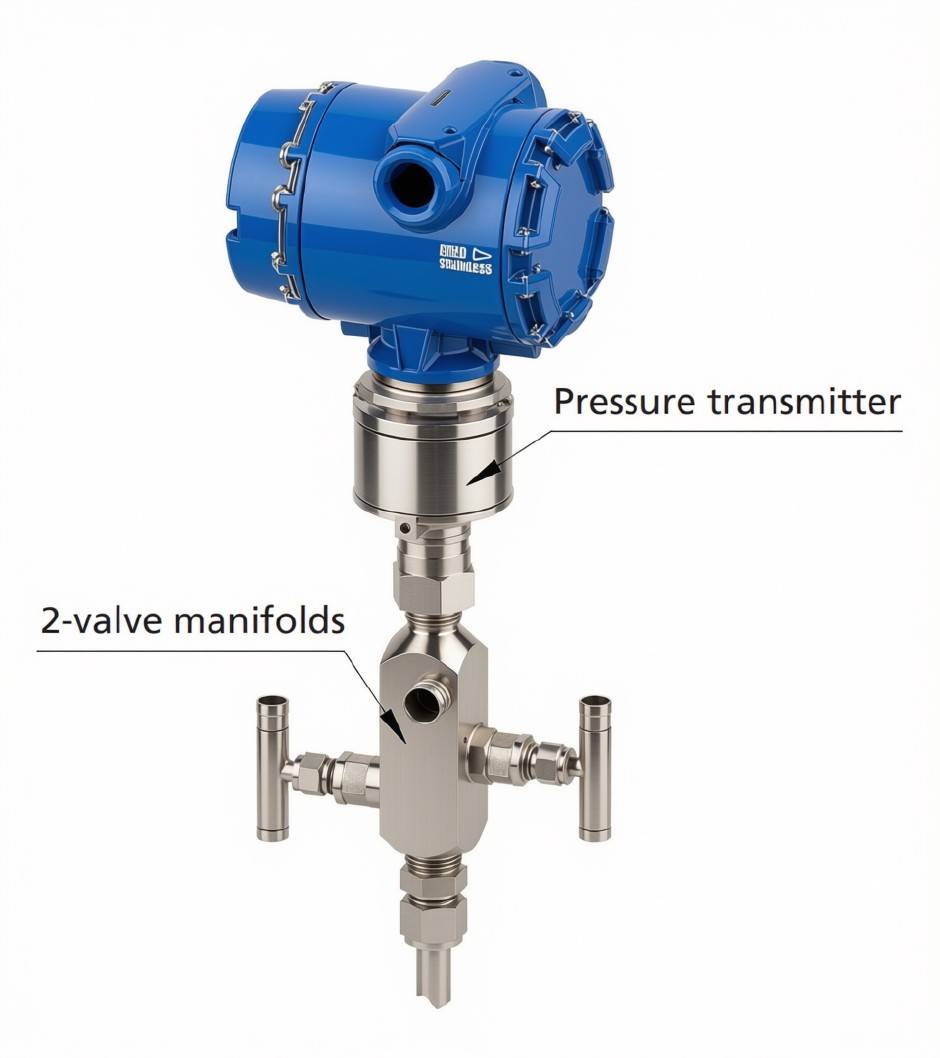

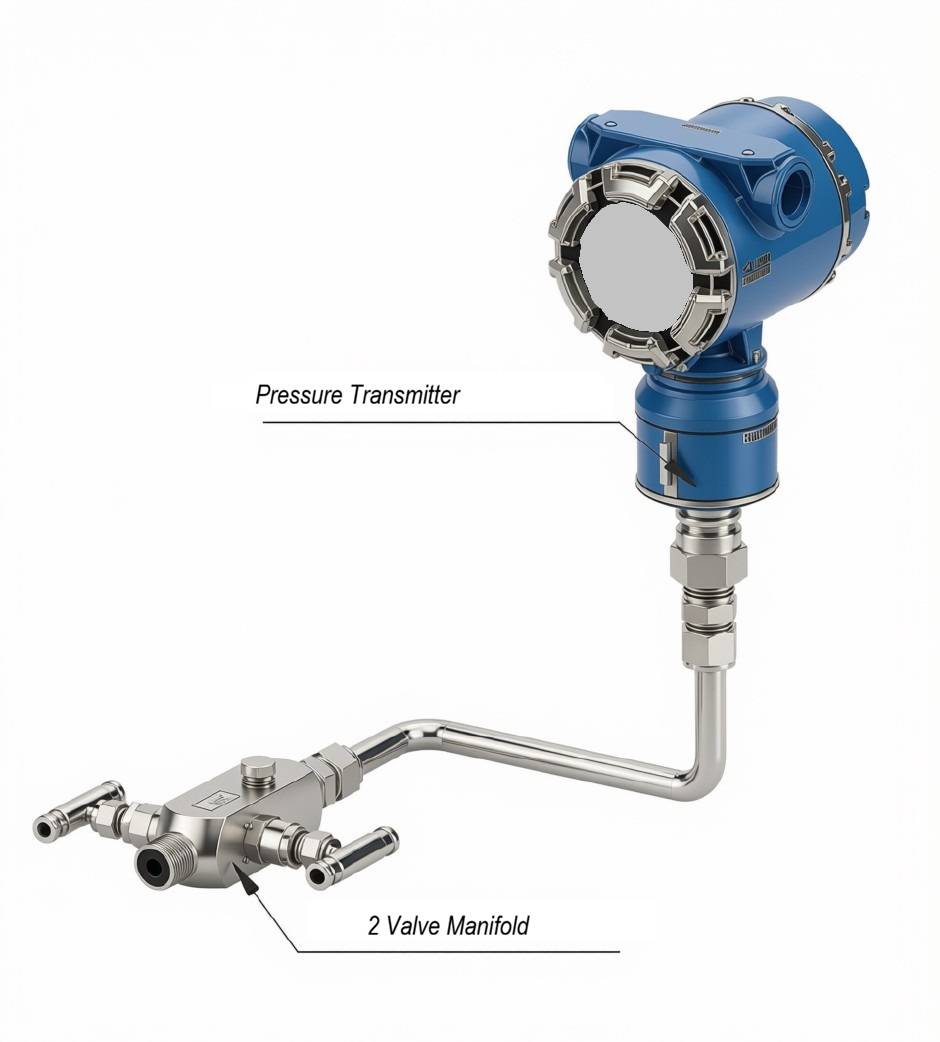

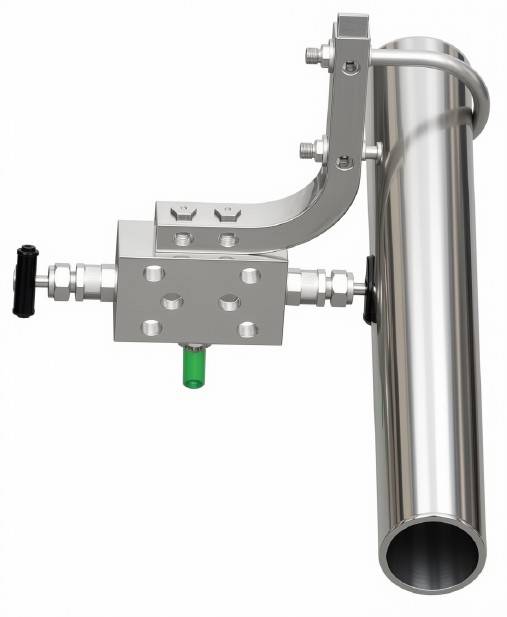

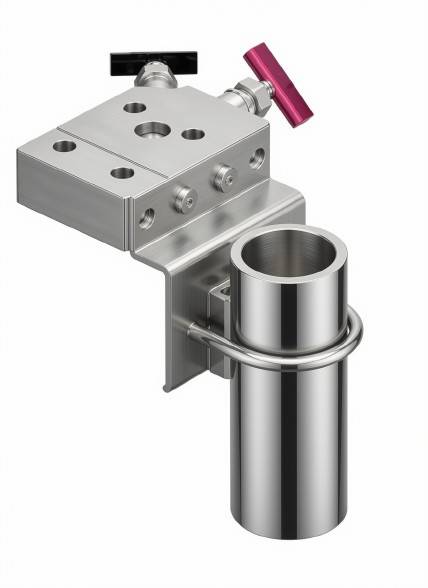

Remote Mount Manifold (with transmitter) 2-way

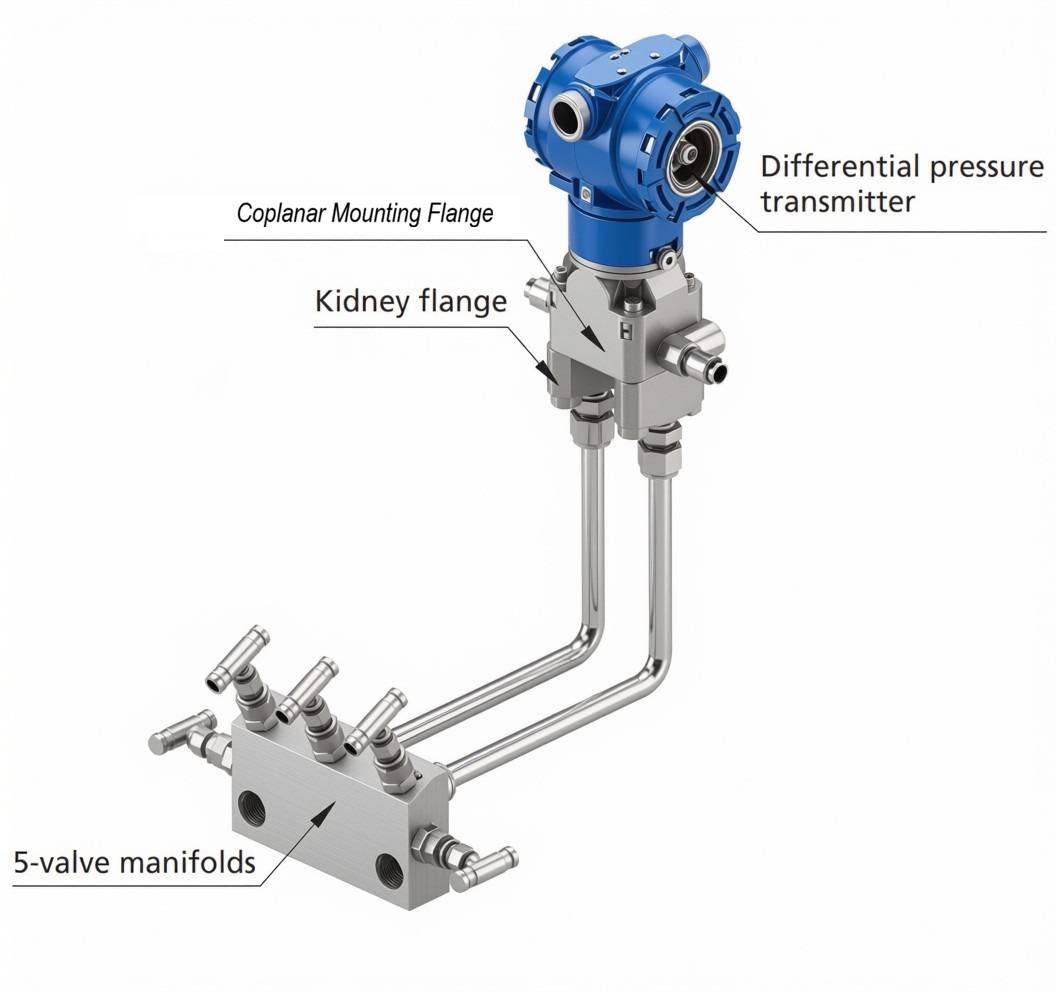

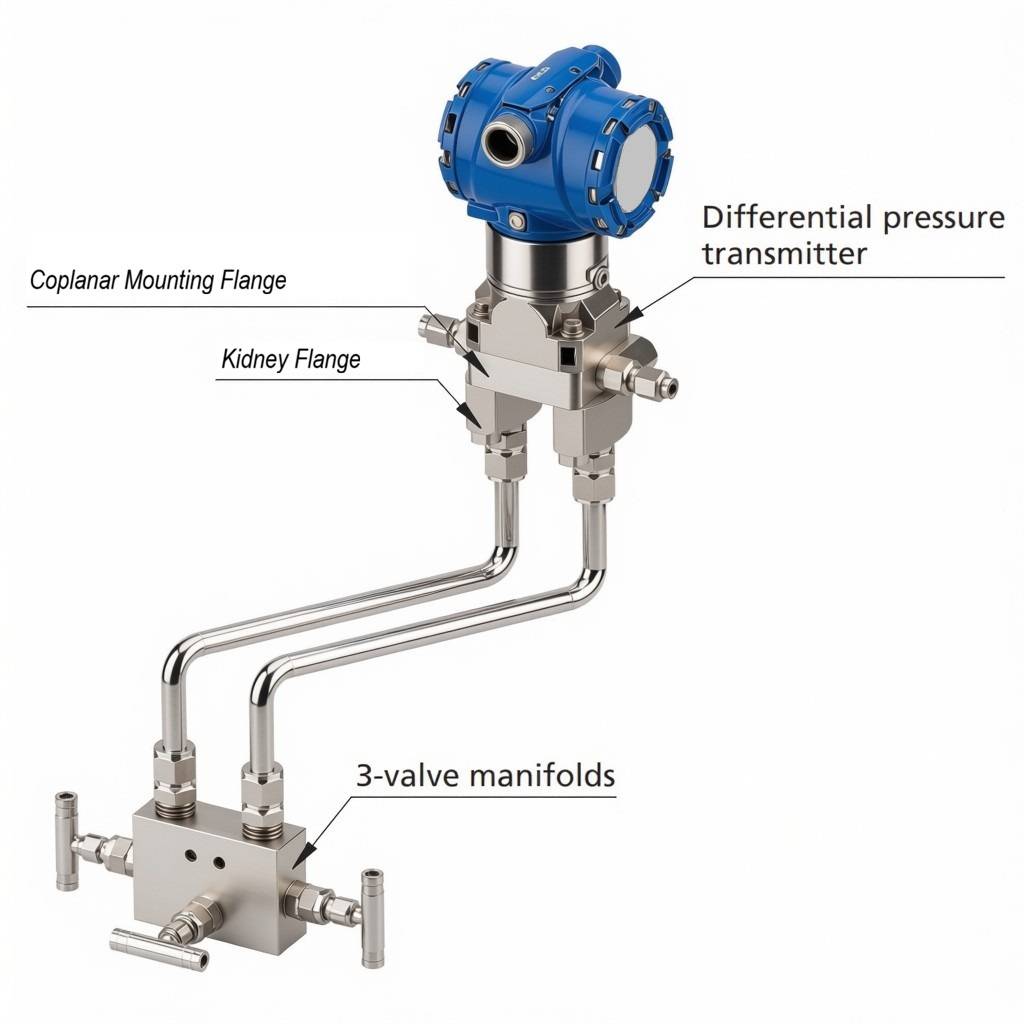

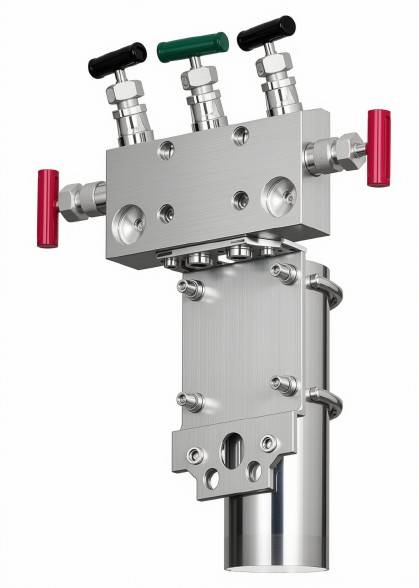

Remote Mount Manifold (with transmitter) 3,5-way

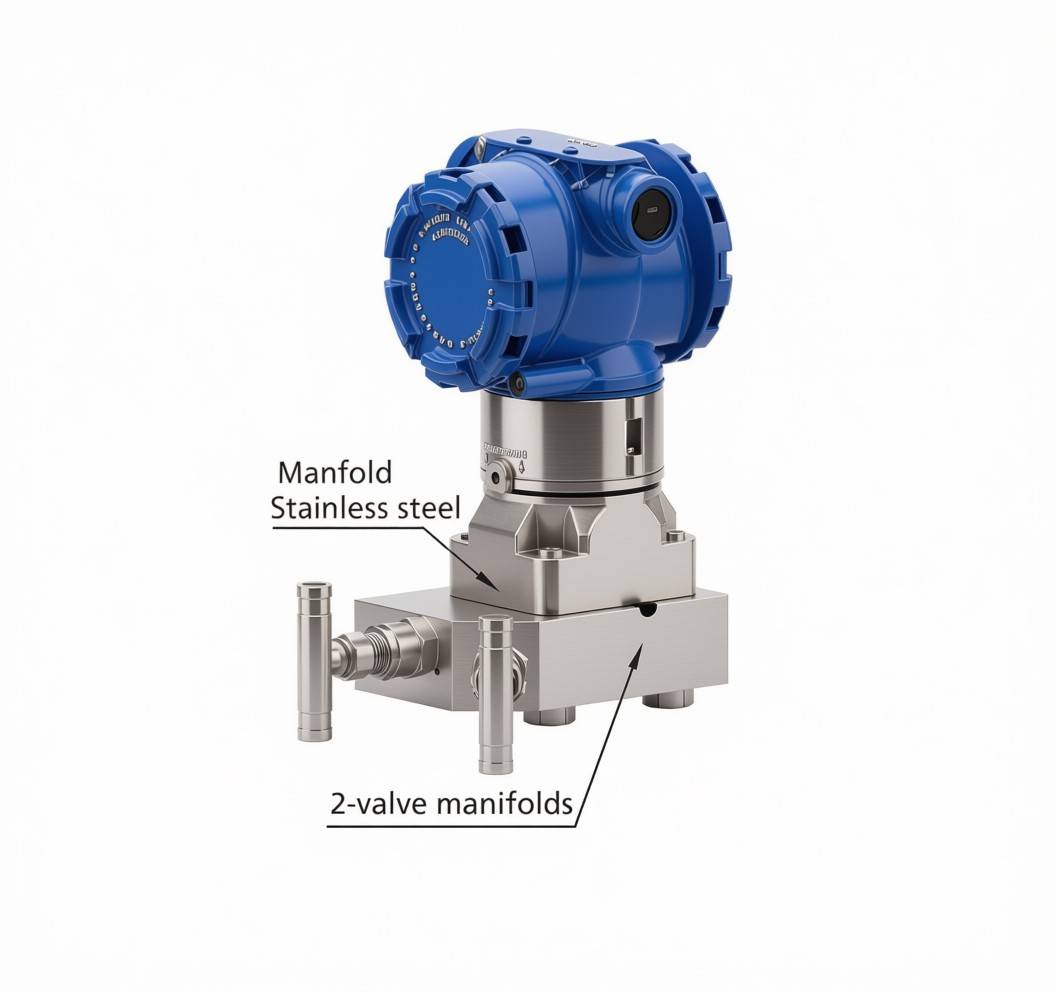

Direct Mount Manifolds 2 way

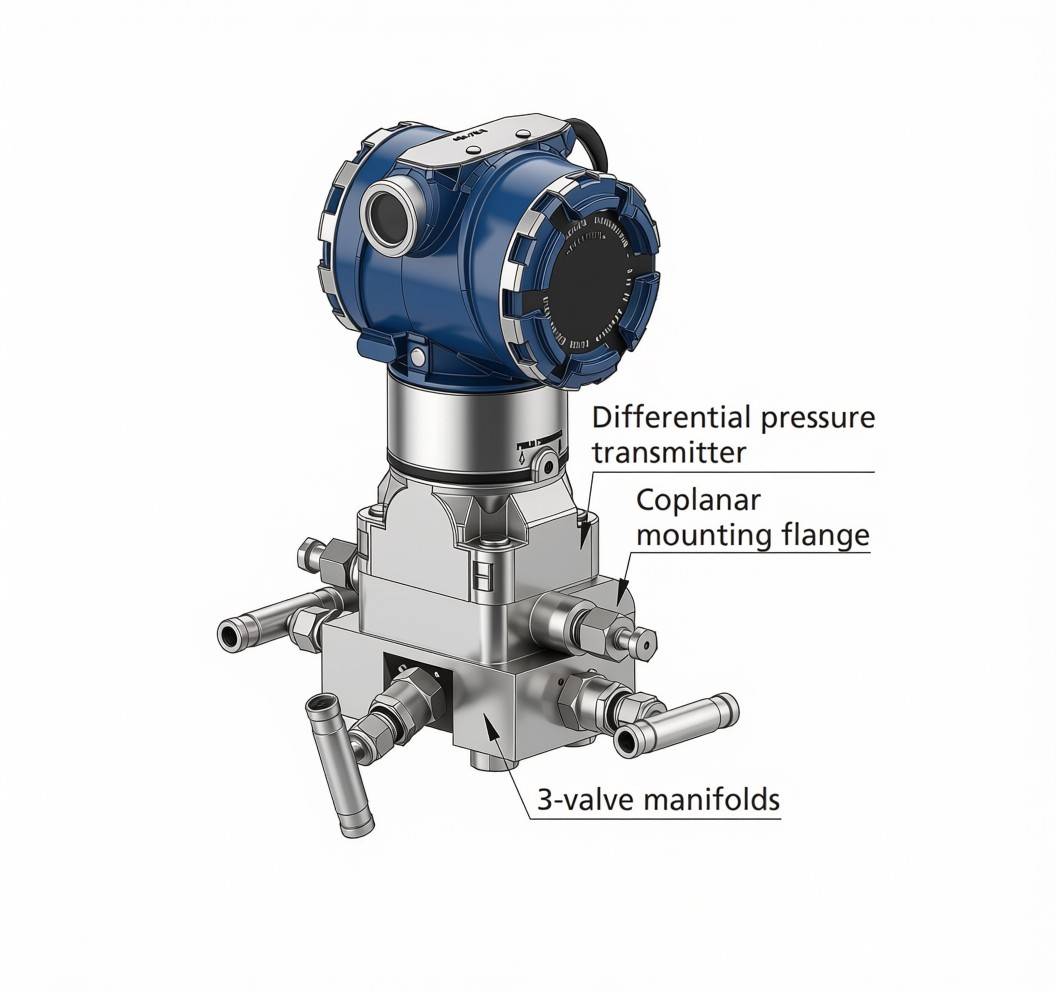

Direct Mount Manifolds 3 way

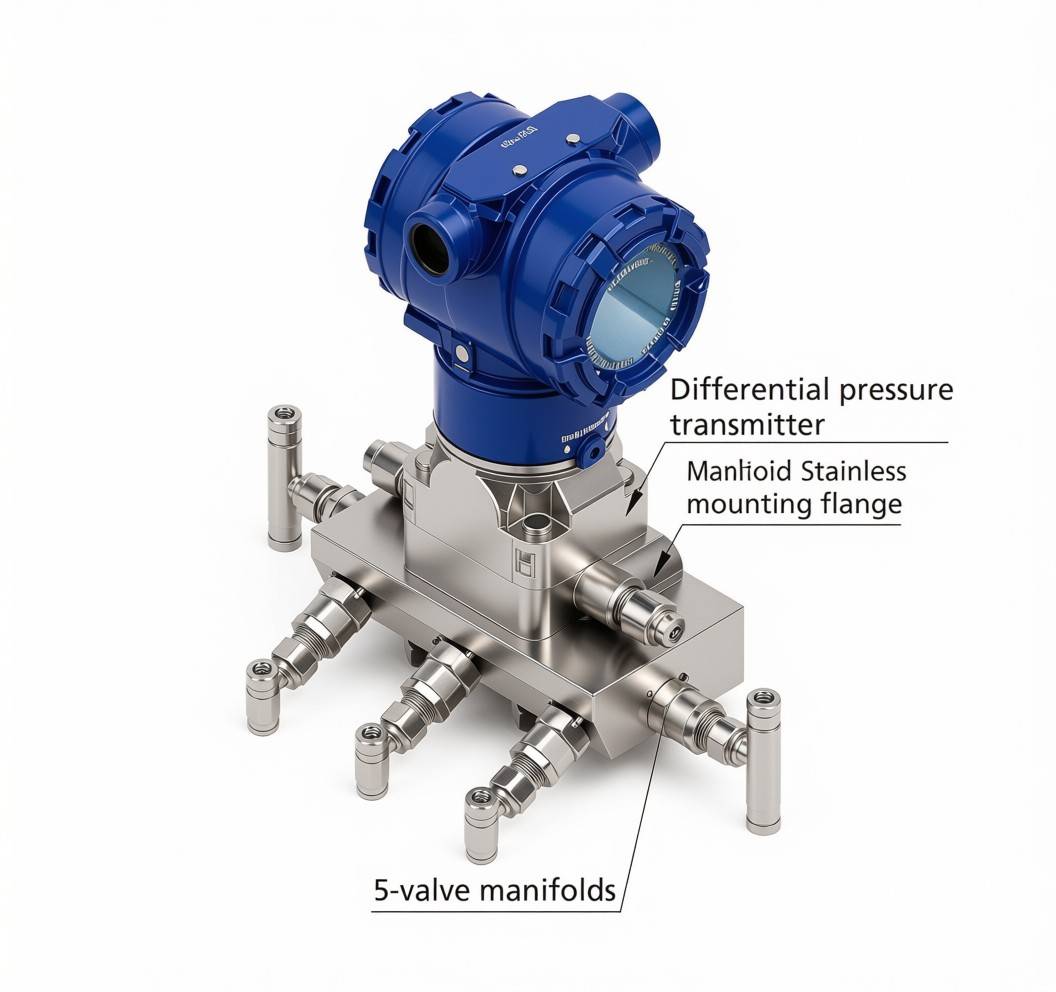

Direct Mount Manifolds 5 way

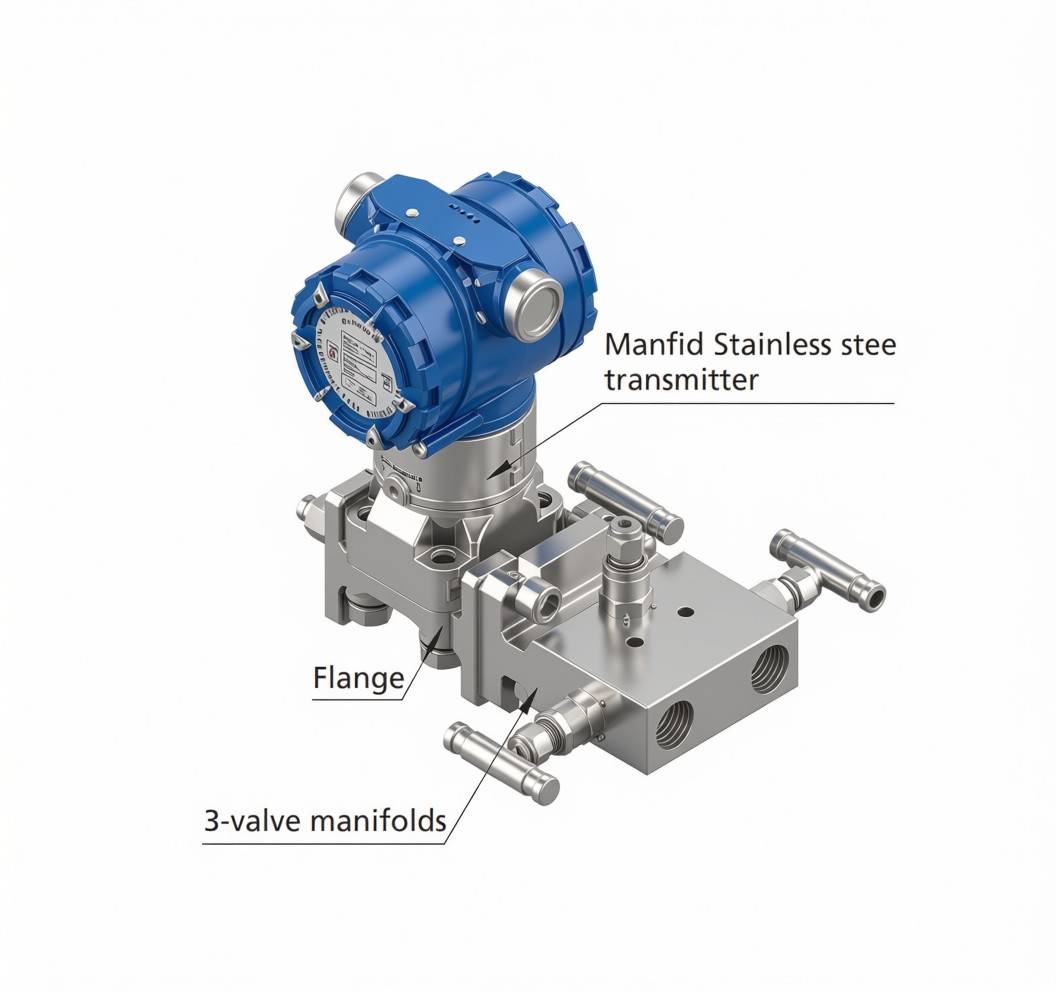

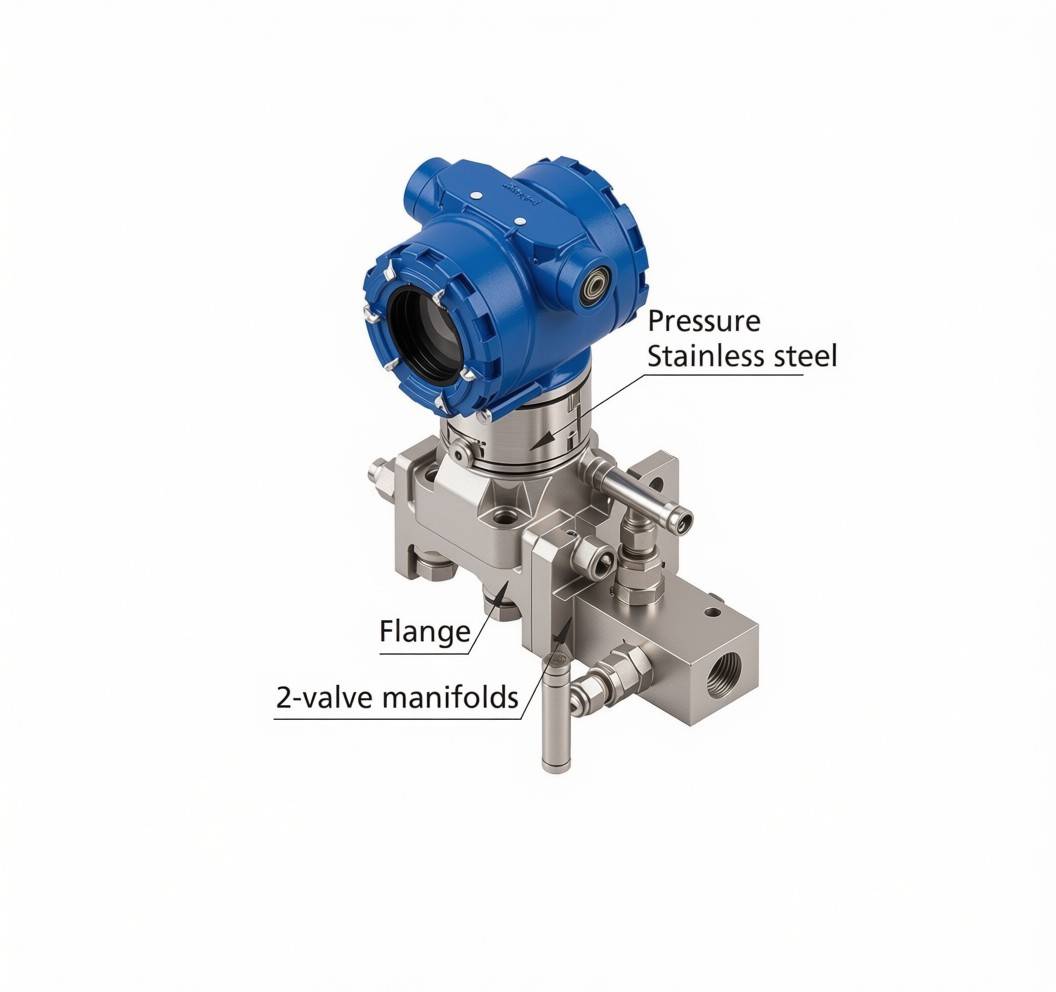

Direct Mount Manifolds with Traditional Flange 3-way

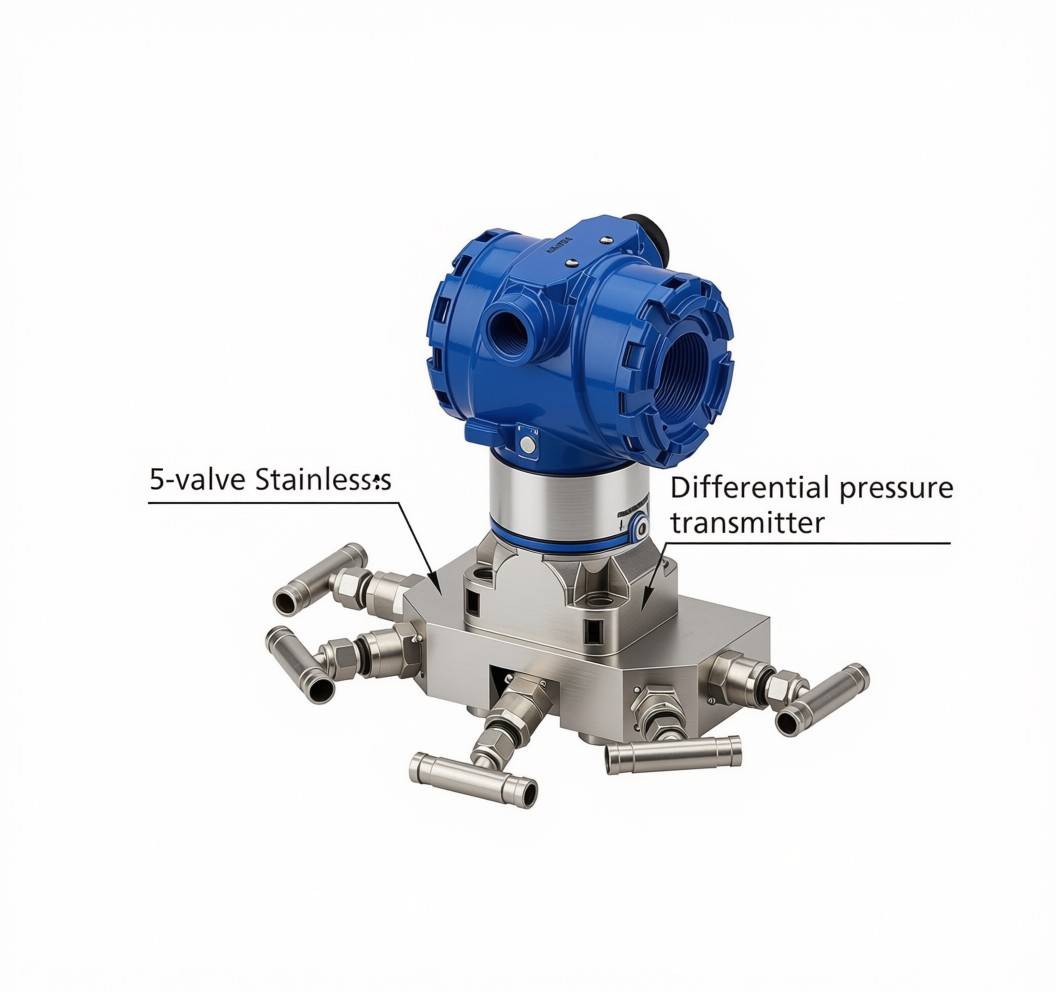

Direct Mount Manifolds with Traditional Flange 5-way
Direct Mount Manifolds with Traditional Flange 2-way

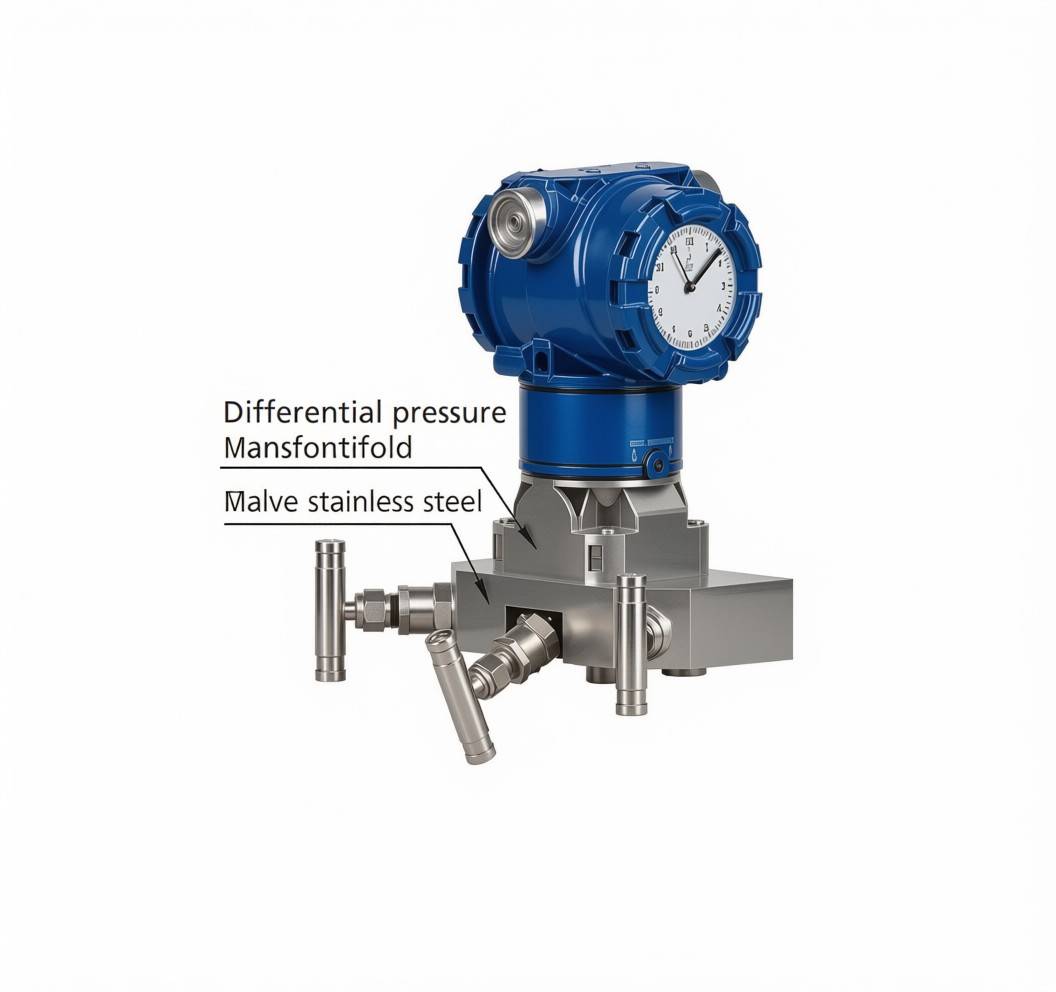

Direct Mount Manifolds without Traditional Flange 2-way
Direct Mount Manifolds without Traditional Flange 3-way
Direct Mount Manifolds without Traditional Flange 5-way
instrumentation valve
air header
valve Manifold
valve Manifold
GVSS-NS8-FNS8 GV Series Ball Tip Gauge Valve
Pressure Gauge
Double Block and Bleed Valve
Double Block and Bleed Valve
