Pneumatic Actuated Ball & Electric Actuated Ball Valves
Actuated Ball Valves are key components in industrial fluid control systems. They offer fast response through either pneumatic actuation—using air supply pressures from 87 to 116 psig (6 to 8 bar)—or electric actuation with a 24V DC actuator. These valves support medium working pressures up to 10,000 psig (690 bar) and operate within a temperature range of -65°F to 450°F (-54°C to 232°C). Include BF, BFH, BH, BO, BP, and BV series ball valves. Modular design with interfaces that meet standards such as ISO 5211. Accessories, such as solenoid valves, are available to ensure reliable automated operation in industries, including energy, petrochemical, and oil & gas.

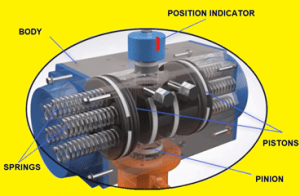

Pneumatic Actuated Ball Valves
Pneumatic ball valves
Features
◎ NPS: 1/8~2 Medium working pressure up to : 10,000 psig (690 bar)
◎ Medium temperature range: -65°F to 450°F(-54°C to 232°C)
◎ Fast acting
◎ Air supply pressure as low as 6 bar with low air consumption
◎ Top indicator shows valve status
◎ With interfaces that meet ISO 5211, NAMUR, and VDI/VDE 3845 standards
◎ Available factory assembled or in kits for field assembly
◎ A variety of explosion-proof products with certification available
NOTES:
② Air failure will cause to the valve to return to the original normally open or closed state.
③ Air failure will cause to the valve to return to the original left end/right end normally open state.
④ For special applications, please contact FITOK Group or our authorized distributors.
① Air failure will cause the valve to stay at the position where the operation is disturbed.
NOTES:
② Air failure will cause to the valve to return to the original normally open or closed state.
③ Air failure will cause to the valve to return to the original left end/right end normally open state.
④ For special applications, please contact FITOK Group or our authorized distributors.
① Air failure will cause the valve to stay at the position where the operation is disturbed.
Electric Actuated Ball Valves
Features
◎ NPS: 1/8~2
◎ Medium working pressure up to 10,000 psig (690 bar)
◎ Medium temperature range: -65°F to 450°F(-54°C to 232°C)
◎ Quick on-off operation
◎ Power source: 24V DC
◎ Top indicator shows valve status
◎ Conform to industry interface standards: ISO 5211
◎ Available factory assembled or in kits for field assembly
◎ Output a group of passive contact signals corresponding to valve positions
◎ IP67 rated and available with a variety of explosion-proof certifications
Note:
① The valve will stay in its current position where the actuator is de-energized. In such case,use the handle for manual operation instead.
② For special applications, please contact FITOK Group or our authorized distributors.
Electric Actuator Operating Principle
◎ DC power supply supplies power to the actuator which can do “open” and “close” operations, outputs a set of 100% open and 100% close passive signals.
◎ Built-in overheat protection device protects the electric actuator from overheating.
